Tractor · 1999Unverified

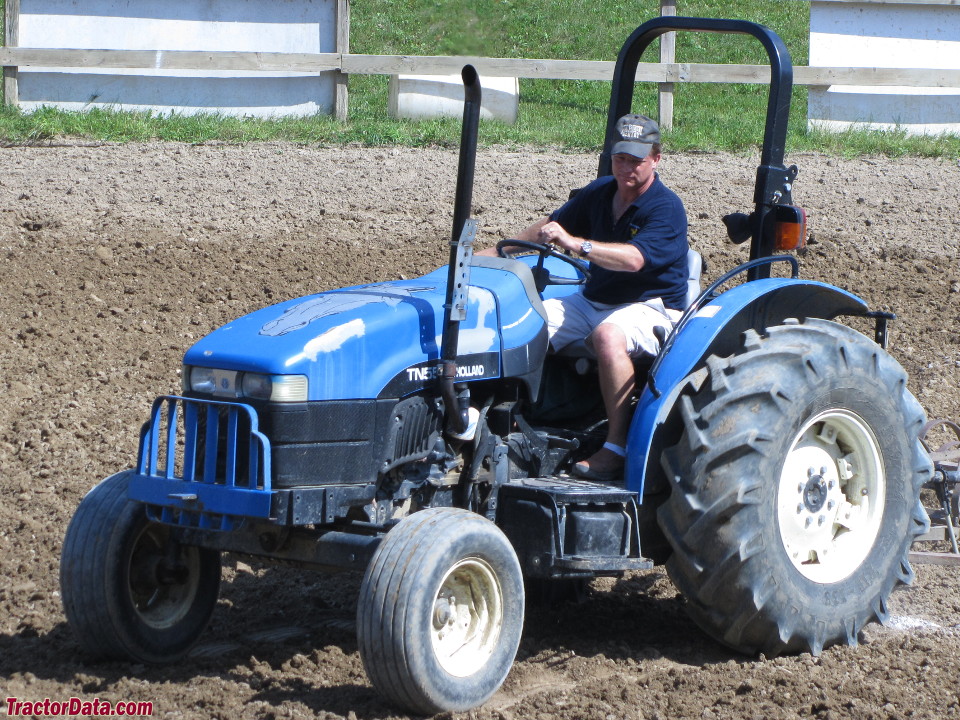

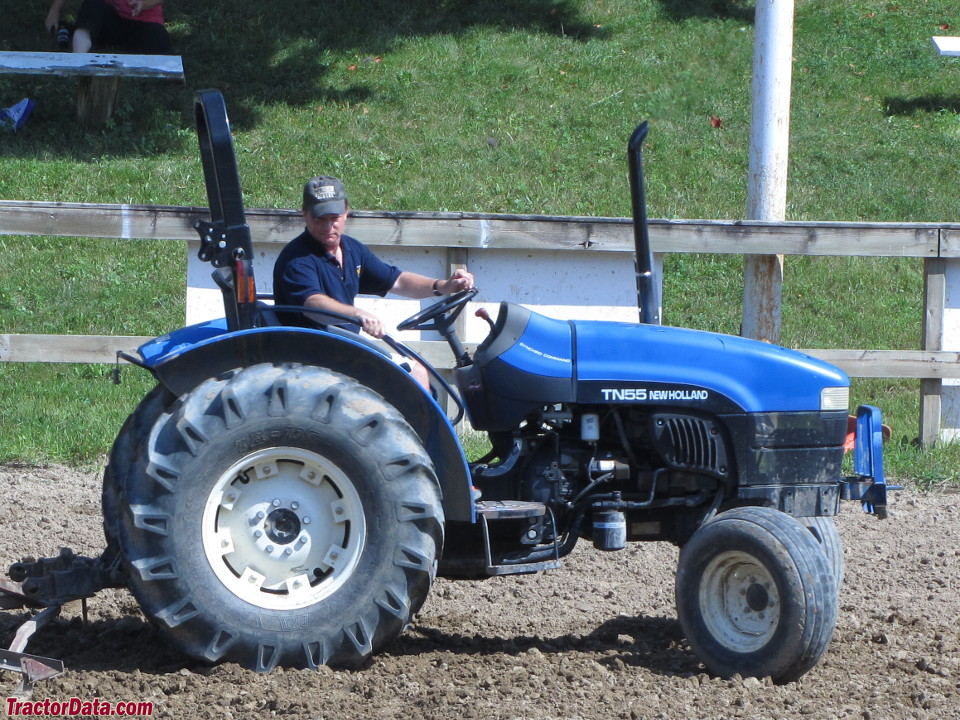

New Holland TN55

Name: New Holland TN55
Brand: New Holland

New Holland TN55 — TN Series · 53 hp. Reference specifications; pending source verification.

The New Holland TN55 is a tractor with an approximate rating of 53 hp, situated at the lower end of its class in terms of power output. It was in production from 1999 to 2004. The tractor is equipped with a 3-cylinder diesel liquid-cooled engine and a powershift transmission in conjunction with four-wheel drive. Its operating weight is listed as 4565 to 5675 pounds, and it is suitable for use on plots of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

53 hp

Max power

26.3 kW

Weight

4565 to 5675 pounds

Catalogue coverage

Variants represented

Richest spec table

113 rows

Recorded power

53 hp

Transmissions

8-speed gear

Production years

1999-2004

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Utility tractorReference

Built in Jesi, ItalyReference

Original price was $30,000 in 2000Reference

Two- or four-wheel driveReference

Final drivesplanetaryReference

Power steeringReference

Differential hydraulic wet disc brakesReference

Two-post folding ROPS. Cab optional.Reference

Variants

TN55ROPSReference

TN55DcabReference

TN55SSuperSteerReference

Engine

Iveco 2.9L 3-cyl dieselReference

Engine (gross)39.5 kWReference

Engine (net)37.3 kWReference

Drawbar (tested)26.3 kWReference

Iveco 8035Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement2.9 LReference

Bore/Stroke104 x 115 mmReference

Power (net)37.3 kWReference

Power (gross)39.5 kWReference

Air cleanerdual paper elementsReference

Compression18:1Reference

Rated RPM2300Reference

Torque200.7 NmReference

Torque RPM1400Reference

Starter volts12Reference

Power at rated engine speed32.1 kWReference

Max power26.3 kWReference

Transmission

8-speed gearReference

8-speed partially synchronizedReference

16-speed partially synchronizedReference

32-speed two-speed power shiftReference

TypegearReference

Gears8 forward and reverseReference

Clutch280mm dry discReference

Four gears (1-4) in two ranges (A/B) with mechanical shuttle. Non-synchronized transmission, available only on the base TN55 model.Reference

TransmissionSynchro CommandReference

Typepartially synchronizedReference

Clutchdry disc (mechanical shuttle)Reference

Clutchwet disc (power shuttle)Reference

Four synchronized gears (1-4) in two ranges (A/B). Available as either mechanical shuttle or power shuttle.Reference

TransmissionSynchro Command PlusReference

Gears16 forward and reverseReference

Four synchronized gears (1-4) in four ranges (A-D). Available as either mechanical shuttle or power shuttle. Standard transmission on the TN55D and TN55S.Reference

TransmissionDual CommandReference

Typetwo-speed power shiftReference

Gears32 forward and 16 reverseReference

Clutchwet discsReference

Four synchronized gears (1-4) in four ranges (A-D) with two-speed push-button power shift. Left-hand power shuttle.Reference

PTO & Hydraulics

PTO (claimed)31.3 kWReference

PTO (tested)32.1 kWReference

Hydraulic system42.0 LReference

Typeopen centerReference

Capacity42.0 LReference

Pressure190.0 barReference

Valves1 or 2Reference

Pump flow46.9 lpmReference

Pump flow64.0 lpmReference

Steering flow27.3 lpmReference

Steering flow34.8 lpmReference

Rear TypeIIReference

Rear lift (at 24"/610mm)1797 kgReference

Rear PTOindependentReference

Clutchdry discReference

Rear PTO Type540 (1.375)Reference

Power at rated PTO speed31.8 kWReference

Capacities

Fuel65.5 LReference

Dimensions

2WD ROPS Wheelbase207 cmReference

4WD ROPS Wheelbase200 cmReference

2WD Cab Wheelbase213 cmReference

4WD Cab Wheelbase206 cmReference

4WD SuperSteer Wheelbase237 cmReference

Weight4565 to 5675 poundsReference

Front tire7.50-16Reference

2WD Rear tire14.9-28Reference

2WD Standard tires (ag)Front: 7.50-16. Rear: 14.9-28Reference

4WD Standard tires (ag)Front: 8.3-24. Rear: 14.9-28Reference

Length393 cmReference

Width170 cmReference

2WD ROPS Shipping2070 kgReference

4WD ROPS Shipping2286 kgReference

2WD Cab Shipping2236 kgReference

4WD Cab Shipping2508 kgReference

SuperSteer ROPS Shipping2374 kgReference

SuperSteer Cab Shipping2574 kgReference

New Holland TN55 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

ROPS Charging amps45Reference

Cab Charging amps65Reference

Battery CCA730Reference

Battery volts12Reference

Attachment overview

New Holland 32LA loaderReference

New Holland 32LA MSL loaderReference

New Holland 33LA loaderReference

New Holland 33LA MSL loaderReference

The 32LA loader fit TN and TND models, the 33LA fit TNS SuperSteer tractors.Reference

New Holland TN55 Height

ROPS241 cmReference

Cab230 cmReference

Exhaust228 cmReference

Test results

Diesel 8-speed 4WDApril 1999 - November 1999, Link: OCED Tractor Test 1900 fileReference

PTO performanceReference

Fuel use10.2 l/hourReference

Fuel use9.8 l/hourReference

Drawbar performanceReference

Gear 4S used for power test.Reference

Max pull2891 kgReference

Gear 2S used for pull test.Reference

Speeds

With 14.9-28 rear tires and 30 KPH transmission.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
