Tractor · 2004Unverified

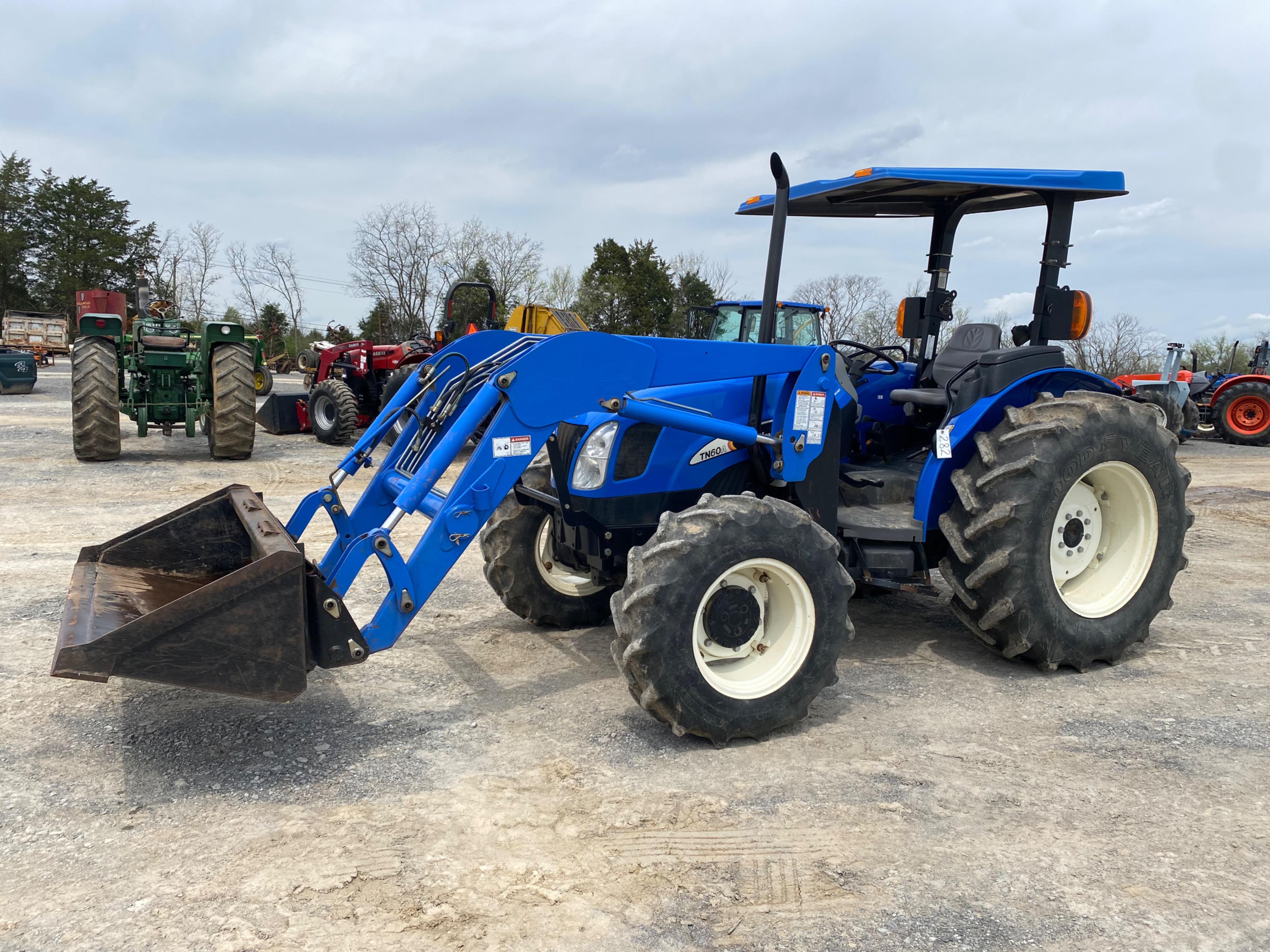

New Holland TN60A

Name: New Holland TN60A
Brand: New Holland

New Holland TN60A — TN-A Series · 57 hp. Reference specifications; pending source verification.

The New Holland TN60A is a compact tractor with a rated output of 57 hp, designed for smaller-scale operations. Manufactured from 2004 to 2008, the TN60A features a 3-cylinder diesel liquid-cooled engine, powering four-wheel drive via a hydrostatic transmission. Its listed weight ranges from 5180 to 5400 pounds, making it suitable for tasks covering approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

57 hp

Max power

36.0 kW

Weight

5180 to 5400 pounds

Catalogue coverage

Variants represented

Richest spec table

97 rows

Recorded power

57 hp

Transmissions

8-speed constant mesh with mechanical shuttle

Production years

2004-2008

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Utility tractorReference

Built in Jesi, ItalyReference

Two- or four-wheel driveReference

Differential lockmechanical rearReference

Steeringhydrostatic powerReference

Differential wet disc brakesReference

ROPS. Canopy optional.Reference

Variants

TN60AROPSReference

TN60DAcabReference

TN60SASuperSteerReference

JX1060Csimilar CaseIH modelReference

Engine

Iveco 2.9L 3-cyl dieselReference

Fuel tank87.1 LReference

Engine (gross)42.5 kWReference

Engine (net)41.0 kWReference

Drawbar (tested)28.6 kWReference

IvecoReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement2.9 LReference

Bore/Stroke104 x 115 mmReference

EmissionsTier 2Reference

Power (net)41.0 kWReference

Power (gross)42.5 kWReference

Fuel use11.4 l/hourReference

Air cleanerdual paper elementsReference

Compression17:1Reference

Rated RPM2300Reference

Torque200.7 NmReference

Torque RPM1400Reference

StarterelectricReference

Starter volts12Reference

Max power36.0 kWReference

Power at rated engine speed35.8 kWReference

Max power28.6 kWReference

Transmission

8-speed constant mesh with mechanical shuttleReference

12-speed partially synchronized with mechanical shuttleReference

16-speed partially synchronized with mechanical shuttleReference

16-speed partially synchronized with power shuttleReference

Typeconstant mesh with mechanical shuttleReference

Gears8 forward and reverseReference

Clutch280mm dry cerametallic plateReference

Left-hand mechanical shuttle required clutching.Reference

TransmissionSynchro CommandReference

Typepartially synchronized with mechanical shuttleReference

Gears12 forward and reverseReference

Four synchronized gears in three ranges. Left-hand mechanical shuttle requires clutching.Reference

TransmissionSynchro Command PlusReference

Gears16 forward and reverseReference

Left-hand mechanical shuttle requires clutching.Reference

Typepartially synchronized with power shuttleReference

Clutchsix 113mm wet organic discsReference

Clutchless left-hand power shuttle.Reference

PTO & Hydraulics

PTO (claimed)33.6 kWReference

PTO (tested)36.0 kWReference

Typeopen centerReference

Pressure190.0 barReference

Valves1 to 4Reference

Pump flow46.9 lpmReference

Pump flow64.0 lpmReference

Steering flow27.3 lpmReference

Steering flow34.8 lpmReference

Rear TypeII/IReference

Rear lift (at 24"/610mm)1796 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Power at rated PTO speed35.4 kWReference

Dimensions

2WD, 78.9 4WD} Wheelbase207 cmReference

Weight5180 to 5400 poundsReference

Front tire9.5x15Reference

Rear tire14.9Reference

2WD Ag front9.5x15Reference

4WD Ag front11.2x20Reference

Ag rear14.9Reference

4WD Length385 cmReference

2WD Length389 cmReference

Width170 cmReference

Height (ROPS)241 cmReference

Height (Folded ROPS)190 cmReference

2WD2349 kgReference

4WD2449 kgReference

Ballasted2930 kgReference

New Holland TN60A attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps65Reference

Battery CCA730Reference

Battery volts12Reference

Test results

Diesel 16-speed 2WDMarch 1 - April 1, 2004Link: OCED Tractor Test 2158 fileReference

PTO performanceReference

Fuel use11.4 l/hourReference

Drawbar performanceReference

Gear 3M Lo used for power test.Reference

Max pull2782 kgReference

Gear 1M Lo used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
