Tractor · 2004Unverified

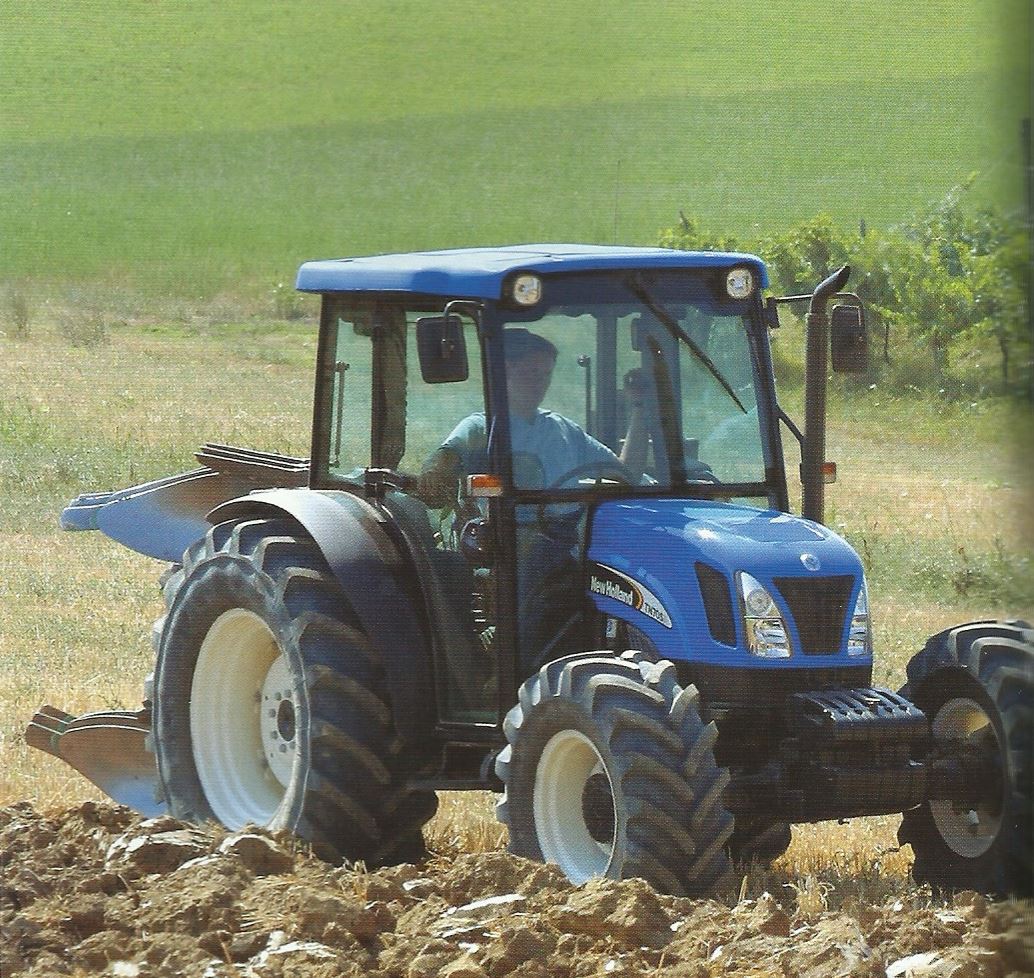

New Holland TN60DA

Name: New Holland TN60DA
Brand: New Holland

New Holland TN60DA — TN-A Series · 57 hp. Reference specifications; pending source verification.

The New Holland TN60DA is a tractor with a rated power output of 57 hp, positioning it at the lighter end of its class. Manufactured from 2004 to 2008, this model features a 3-cylinder diesel liquid-cooled engine paired with four-wheel drive and a hydrostatic transmission. Its operating weight is listed as 5588 to 6450 pounds. The TN60DA is suitable for operations of up to 200 ac.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

57 hp

Max power

36.0 kW

Weight

5588 to 6450 pounds

Catalogue coverage

Variants represented

Richest spec table

86 rows

Recorded power

57 hp

Transmissions

16-speed partially synchronized with mechanical shuttle

Production years

2004-2008

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Utility tractorReference

Built in Jesi, ItalyReference

Two- or four-wheel driveReference

Differential lockmechanical rearReference

Steeringhydrostatic powerReference

Differential wet disc brakesReference

Cab standard.Reference

Variants

TN60AROPSReference

TN60DAcabReference

TN60SASuperSteerReference

Engine

Iveco 2.9L 3-cyl dieselReference

Fuel tank87.1 LReference

Engine (gross)42.5 kWReference

Engine (net)41.0 kWReference

Drawbar (tested)28.6 kWReference

IvecoReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement2.9 LReference

Bore/Stroke104 x 115 mmReference

EmissionsTier 2Reference

Power (net)41.0 kWReference

Power (gross)42.5 kWReference

Fuel use11.4 l/hourReference

Air cleanerdual paper elementsReference

Compression17:1Reference

Rated RPM2300Reference

Torque200.7 NmReference

Torque RPM1400Reference

StarterelectricReference

Starter volts12Reference

Max power36.0 kWReference

Power at rated engine speed35.5 kWReference

Max power28.6 kWReference

Transmission

16-speed partially synchronized with mechanical shuttleReference

16-speed partially synchronized with power shuttleReference

TransmissionSynchro Command PlusReference

Typepartially synchronized with mechanical shuttleReference

Gears16 forward and reverseReference

Clutch280mm dry cerametallic plateReference

Left-hand synchronized mechanical shuttle requires clutching.Reference

Typepartially synchronized with power shuttleReference

Clutchsix 113mm wet organic discsReference

Left-hand clutchless power shuttle.Reference

PTO & Hydraulics

PTO (claimed)33.6 kWReference

PTO (tested)36.0 kWReference

Typeopen centerReference

Pressure190.0 barReference

Valves1 to 4Reference

Pump flow48.4 lpmReference

Pump flow64.0 lpmReference

Steering flow28.0 lpmReference

Steering flow35.6 lpmReference

Rear TypeII/IReference

Rear lift (at 24"/610mm)1796 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Power at rated PTO speed35.6 kWReference

Dimensions

2WD Wheelbase213 cmReference

4WD Wheelbase206 cmReference

Weight5588 to 6450 poundsReference

2WD Length395 cmReference

4WD Length391 cmReference

Width170 cmReference

Height (cab)230 cmReference

2WD Shipping2534 kgReference

4WD Shipping2694 kgReference

2WD Operating2673 kgReference

4WD Operating2925 kgReference

Ballasted3490 kgReference

New Holland TN60DA attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps85Reference

Battery CCA730Reference

Battery volts12Reference

Test results

Diesel 16-speed 4WDMarch 1 - May 1, 2004Link: OCED Tractor Test 2160 fileReference

PTO performanceReference

Fuel use11.4 l/hourReference

Fuel use11.0 l/hourReference

Drawbar performanceReference

Gear 3M Lo used for power test.Reference

Max pull2989 kgReference

Gear 1M Lo used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
