Tractor · 2004Unverified

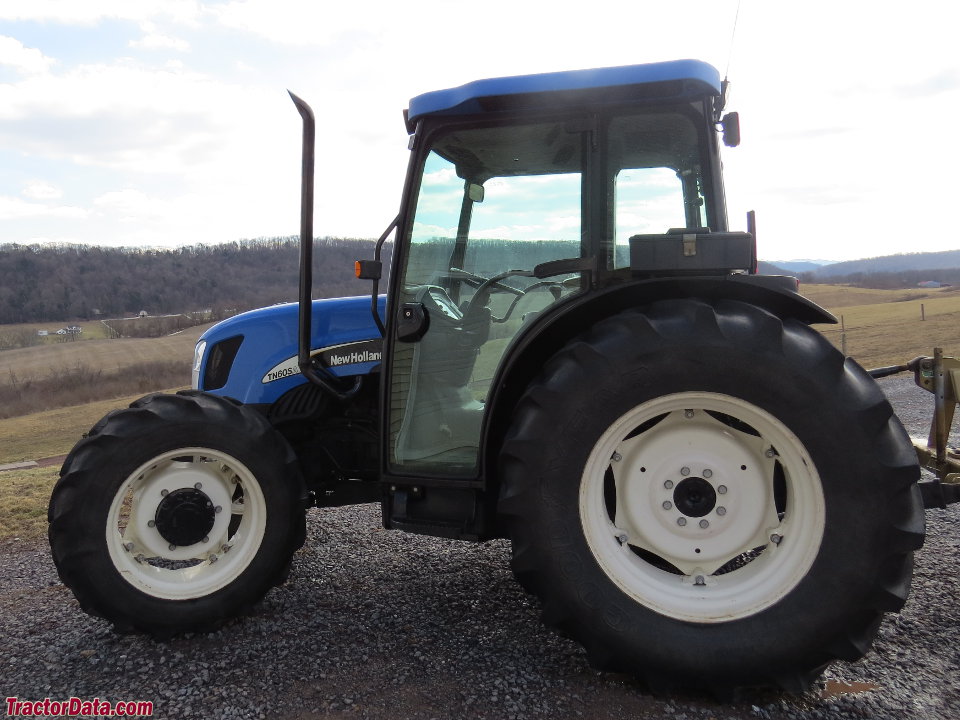

New Holland TN60SA
New Holland TN60SA — TN-A Series · 57 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
57 hp
Weight
6360 to 6537 pounds
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Utility tractorReference
Built in Jesi, ItalyReference
Four-wheel driveReference
Differential lockelectro-hydraulicReference
Steeringhydrostatic powerReference
Differential wet disc brakesReference
ROPS. Cab optional.Reference
Variants
TN60AROPSReference
TN60DAcabReference
TN60SASuperSteerReference
Engine
Iveco 2.9L 3-cyl dieselReference
Fuel tank73.8 LReference
Engine (gross)42.5 kWReference
Engine41.0 kWReference
IvecoReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke104 x 115 mmReference
EmissionsTier 2Reference
Power41.0 kWReference
Power (gross)42.5 kWReference
Fuel use11.4 l/hourReference
Air cleanerdual paper elementsReference
Compression17:1Reference
Rated RPM2300Reference
Torque200.7 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed partially synchronized with mechanical shuttleReference
16-speed partially synchronized with power shuttleReference
TransmissionSynchro Command PlusReference
Typepartially synchronized with mechanical shuttleReference
Gears16 forward and reverseReference
Left-hand synchronized mechanical shuttle requires clutching.Reference
Typepartially synchronized with power shuttleReference
Left-hand clutchless power shuttle.Reference
PTO & Hydraulics
PTO (claimed)33.6 kWReference
Typeopen centerReference
Pressure190.0 barReference
Valves1 to 4Reference
Pump flow48.4 lpmReference
Pump flow64.0 lpmReference
Steering flow28.0 lpmReference
Steering flow35.6 lpmReference
Rear TypeII/IReference
Rear lift (at 24"/610mm)1796 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Dimensions
Wheelbase206 cmReference
Weight6360 to 6537 poundsReference
Length393 cmReference
Width170 cmReference
ROPS Shipping weight2884 kgReference
Cab Shipping weight2965 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps65Reference
Charging amps85 (with cab)Reference
Battery CCA730Reference
Battery volts12Reference
New Holland TN60SA Height
ROPS241 cmReference
ROPS190 cmReference
Cab230 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
