Tractor · 1998Unverified
New Holland TN65
New Holland TN65 — TN Series · 57 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
57 hp
Max power
31.8 kW
Weight
4665 to 5775 pounds
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Utility tractorReference
Built in Jesi, ItalyReference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Power steeringReference
Differential hydraulic wet disc brakesReference
Two-post folding ROPS. Cab optional.Reference
Variants
TN65ROPSReference
TN65DcabReference
TN65SSuperSteerReference
TN65ForchardReference
Engine
Iveco 2.9L 3-cyl dieselReference
Engine (gross)42.5 kWReference
Engine (net)39.5 kWReference
Drawbar (tested)34.3 kWReference
Iveco 8035.05RReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke104 x 115 mmReference
Power (net)39.5 kWReference
Power (gross)42.5 kWReference
Air cleanerdual paper elementsReference
Compression18:1Reference
Rated RPM2300Reference
Torque219.7 NmReference
Torque RPM1400Reference
Starter volts12Reference
Power at rated engine speed39.4 kWReference
Max power31.8 kWReference
Power at rated engine speed39.3 kWReference
Max power34.3 kWReference
Transmission
8-speed gearReference
8-speed partially synchronizedReference
16-speed partially synchronizedReference
32-speed two-speed power shiftReference
TypegearReference
Gears8 forward and reverseReference
Clutch280mm dry discReference
Four gears (1-4) in two ranges (A/B) with mechanical shuttle. Non-synchronized transmission, available only on the base TN65 model.Reference
TransmissionSynchro CommandReference
Typepartially synchronizedReference
Clutchdry disc (mechanical shuttle)Reference
Clutchwet disc (power shuttle)Reference
Four synchronized gears (1-4) in two ranges (A/B). Available as either mechanical shuttle or power shuttle.Reference
TransmissionSynchro Command PlusReference
Gears16 forward and reverseReference
Four synchronized gears (1-4) in four ranges (A-D). Available as either mechanical shuttle or power shuttle. Standard transmission on the TN55D and TN55S.Reference
TransmissionDual CommandReference
Typetwo-speed power shiftReference
Gears32 forward and 16 reverseReference
Clutchwet discsReference
Four synchronized gears (1-4) in four ranges (A-D) with two-speed push-button power shift. Left-hand power shuttle.Reference
PTO & Hydraulics
PTO (claimed)35.0 kWReference
PTO (tested)39.4 kWReference
Hydraulic system42.0 LReference
Typeopen centerReference
Capacity42.0 LReference
Pressure190.0 barReference
Valves1 to 3Reference
Pump flow46.9 lpmReference
Pump flow64.0 lpmReference
Steering flow27.3 lpmReference
Steering flow34.8 lpmReference
Rear TypeIIReference
Rear lift (at 24"/610mm)1797 kgReference
Rear PTOindependentReference
Clutchdry discReference
Rear PTO Type540 (1.375)Reference
Power at rated PTO speed39.1 kWReference
Power at rated PTO speed38.6 kWReference
Capacities
Fuel73.8 LReference
Dimensions
2WD ROPS Wheelbase207 cmReference
2WD Cab Wheelbase213 cmReference
4WD ROPS Wheelbase200 cmReference
4WD Cab Wheelbase206 cmReference
4WD SuperSteer Wheelbase212 cmReference
Weight4665 to 5775 poundsReference
Front tire7.50-16Reference
2WD Rear tire14.9-28Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 14.9-28Reference
4WD Standard tires (ag)Front: 8.3-24. Rear: 14.9-28Reference
Length393 cmReference
Width170 cmReference
2WD ROPS Shipping2116 kgReference
4WD ROPS Shipping2331 kgReference
2WD cab Shipping2281 kgReference
4WD Cab Shipping2553 kgReference
SuperSteer ROPS Shipping2419 kgReference
SuperSteer Cab Shipping2619 kgReference
New Holland TN65 attachments
front-end loaderReference
TN65 Serial Numbers
19981128584Reference
19991157784Reference
20001184762Reference
20011219306Reference
20021252974Reference
20031287178Reference
20041317364Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps45Reference
Cab Charging amps65Reference
Battery CCA730Reference
Battery volts12Reference
Attachment overview

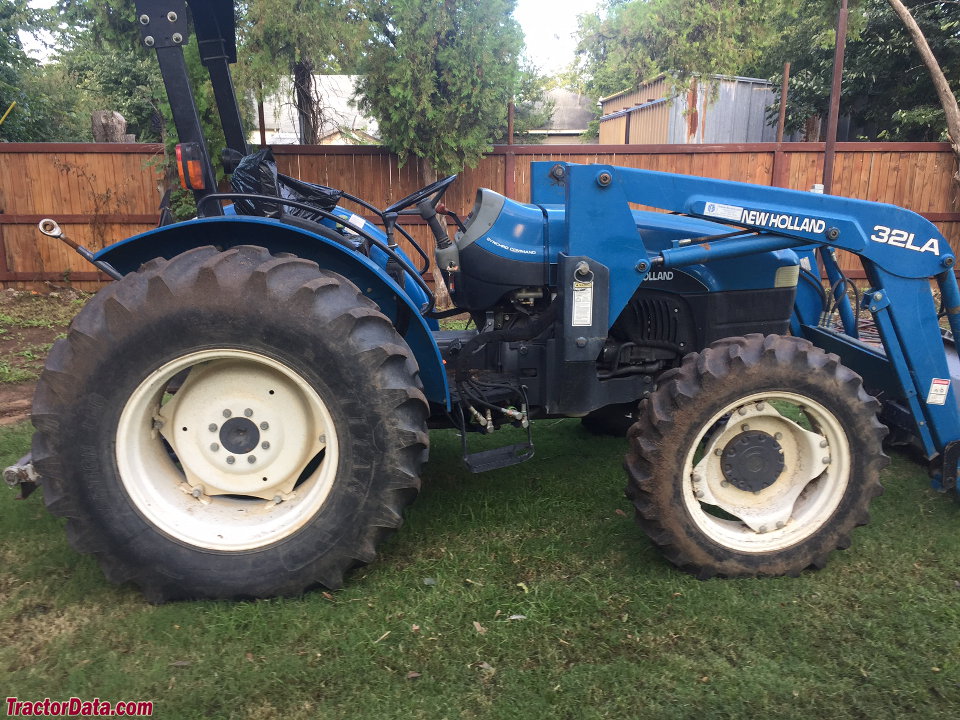

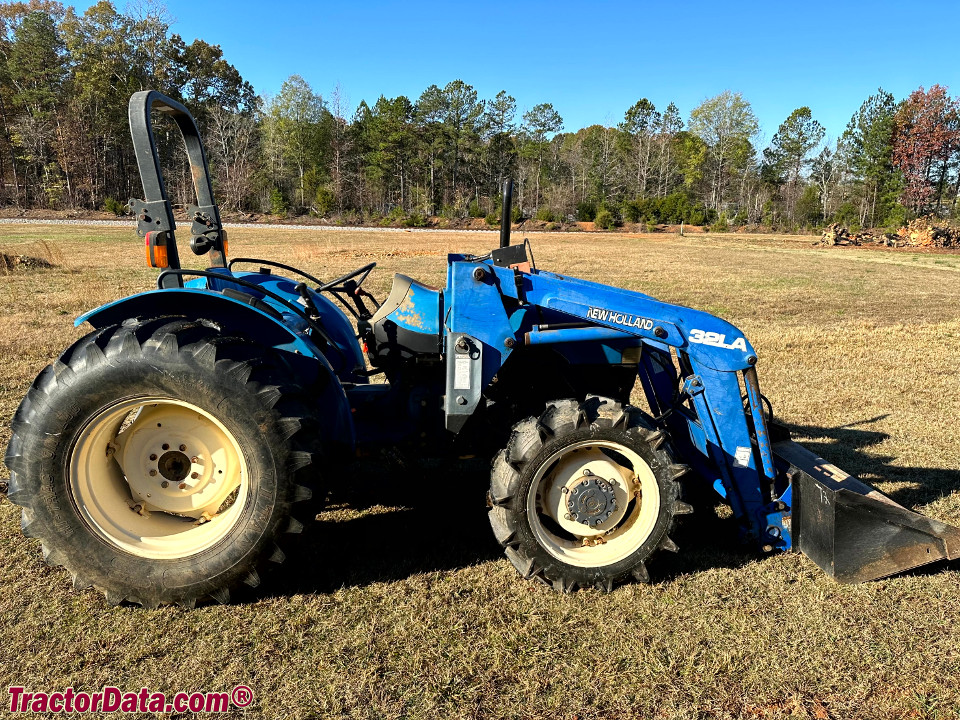

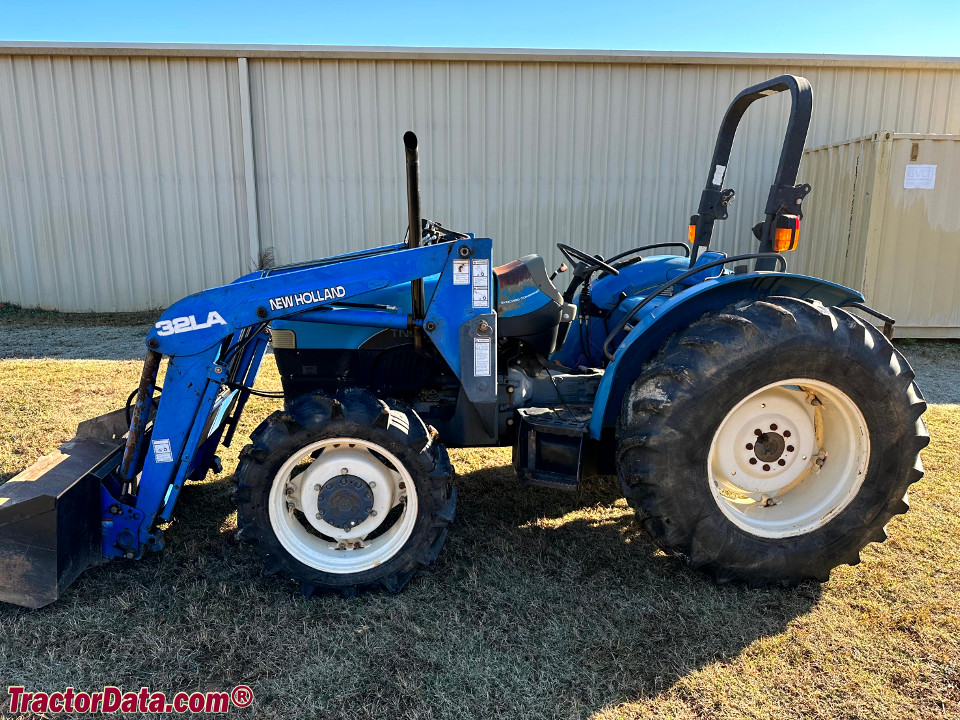

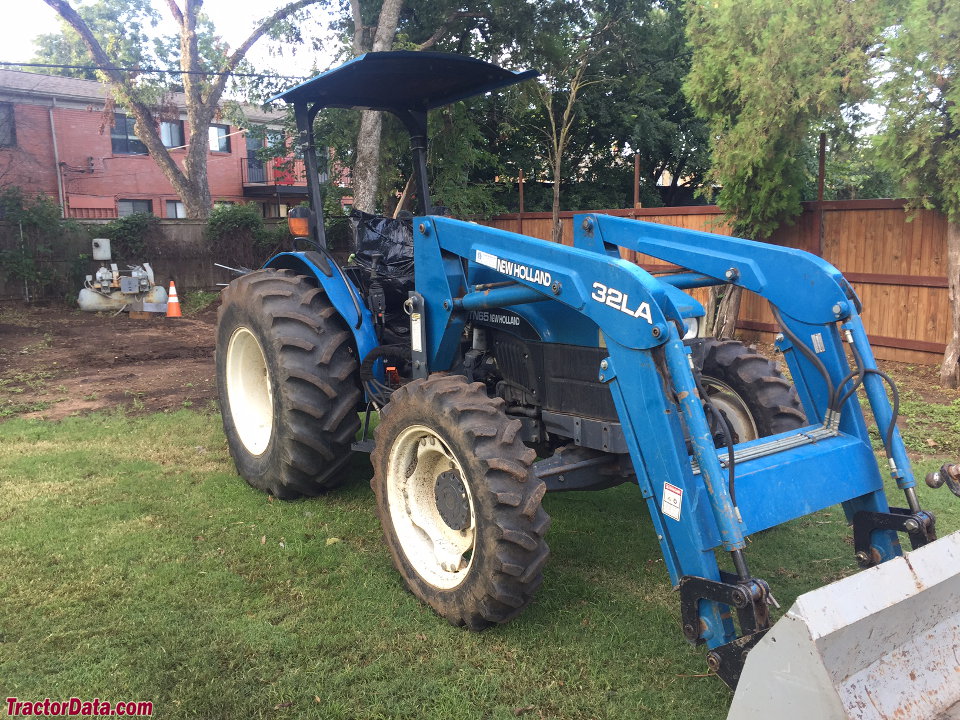

New Holland 32LA loaderReference
New Holland 32LA MSL loaderReference
New Holland 33LA loaderReference
New Holland 33LA MSL loaderReference
The 32LA loader fit TN and TND models, the 33LA fit TNS SuperSteer tractors.Reference
New Holland TN65 Height
ROPS241 cmReference
Cab230 cmReference
Exhaust228 cmReference
Test results
OECD 1902: diesel 8-speed 4WD CabReference
OECD 1948: diesel 8-speed 4WD ROPSReference
Diesel 8-speed 4WD CabApril 1 - November 30, 1999Link: OCED Tractor Test 1902 fileReference
PTO performanceReference
Fuel use12.5 l/hourReference
Fuel use12.1 l/hourReference
Drawbar performanceReference
Gear 4S used for power test.Reference
Max pull3077 kgReference
Gear 2S used for pull test.Reference
Diesel 8-speed 4WD ROPSNovember 1 - December 31, 2000Link: OCED Tractor Test 1948 fileReference
Fuel use12.9 l/hourReference
Fuel use13.2 l/hourReference
Gear 3S used for power test.Reference
Max pull3245 kgReference
Speeds
With 14.9-28 rear tires and 30 KPH transmission.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
