Tractor · 1998Unverified

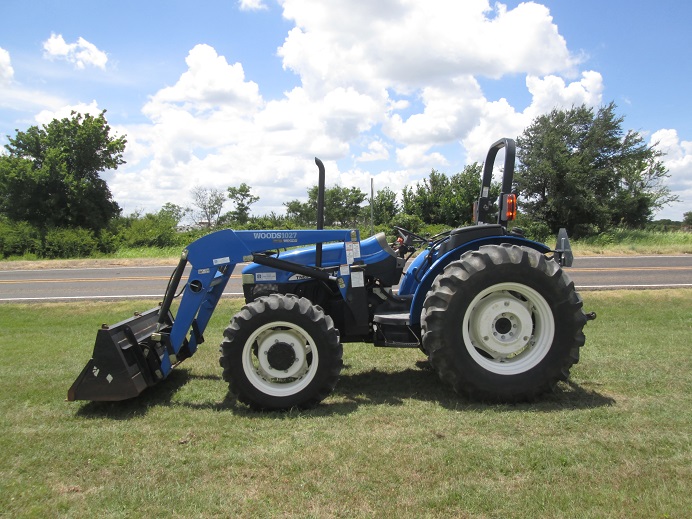

New Holland TN65F

Name: New Holland TN65F
Brand: New Holland

New Holland TN65F — TNF Series · 68 hp. Reference specifications; pending source verification.

The New Holland TN65F is a tractor model with a rated output of 68 hp, positioning it in the middle of its class in terms of power. Manufactured from 1998 to 2001, this tractor features a 4-cylinder diesel liquid-cooled engine, which drives through a four-wheel drive system with a powershift transmission. Weighing between 5181 and 5952 pounds, it is designed for tasks covering an area of approximately up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

68 hp

Weight

5181 to 5952 pounds

Catalogue coverage

Variants represented

Richest spec table

97 rows

Recorded power

68 hp

Transmissions

16-speed partially synchronized

Production years

1998-2001

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Orchard/Vineyard tractorReference

Two- or four-wheel driveReference

2WD Differential lockmechanicalReference

4WD Differential lockelectro-hydraulicReference

Power steeringReference

Hydraulic wet disc brakesReference

Two-post mid-mount folding ROPS. Cab optional with air-conditioning.Reference

Variants

TN65ROPSReference

TN65DcabReference

TN65SSuperSteerReference

TN65ForchardReference

Engine

Iveco 3.9L 4-cyl dieselReference

Fuel tank60.9 LReference

Engine (gross)50.7 kWReference

Engine (net)48.5 kWReference

Iveco 8045Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.9 LReference

Bore/Stroke104 x 115 mmReference

Power (net)48.5 kWReference

Power (gross)50.7 kWReference

Pre-heatingthermostartReference

Compression17:1Reference

Rated RPM2300Reference

Firing order1-3-4-2Reference

StarterelectricReference

Starter volts12Reference

ROPS Coolant capacity10.5 LReference

Cab Coolant capacity12.5 LReference

Oil capacity10.5 LReference

Transmission

16-speed partially synchronizedReference

32-speed two-speed power shiftReference

Typepartially synchronizedReference

Gears16 forward and reverseReference

Clutch279.4mm dry discReference

Oil capacity44.0 LReference

Four synchronized gears (1-4) in four ranges. Tractor must be stopped (and clutch used) to shift range. Mechanical shuttle lever.Reference

ManufacturerDual CommandReference

Typetwo-speed power shiftReference

Gears32 forward and 16 reverseReference

Oil capacity55.0 LReference

Four synchronized gears (1-4) in four ranges with two-speed push-button power shift and left-hand power shuttle. Push-button power shift only applies to forward speeds.Reference

PTO & Hydraulics

PTO (claimed)42.5 kWReference

Typeopen centerReference

Valves2Reference

Pump flow46.9 lpmReference

Pump flow64.0 lpmReference

Steering flow27.3 lpmReference

Steering flow34.8 lpmReference

Rear TypeII/IReference

Controlposition control and lower-link draft sensingReference

Rear lift (at 24"/610mm)1995 kgReference

Rear PTOindependentReference

Clutchcerametallic discReference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@1957Reference

Engine RPM540E@2132Reference

Engine RPM1000@2125Reference

Dimensions

2WD Wheelbase222 cmReference

4WD Wheelbase242 cmReference

Weight5181 to 5952 poundsReference

Front tire7.00-12Reference

2WD Rear tire380/70R20Reference

2WD Standard tires (ag)Front: 7.00-12. Rear: 380/70R20Reference

4WD Standard tires (ag)Front: 280/70R16. Rear: 380/70R20Reference

2WD Optional tires (ag)Front: 6.50-16. Rear: 360/70R28Reference

2WD Optional tires (ag)Front: 6.50-16. Rear: 420/70R24Reference

2WD Optional tires (ag)Front: 6.50-16. Rear: 13.6-28Reference

2WD Optional tires (ag)Front: 7.5L-15. Rear: 380/70R24Reference

4WD. Rear: Optional tires (ag)Front: 240/70R16Reference

4WD Optional tires (ag)Front: 280/70R16. Rear: 360/70R28Reference

4WD Optional tires (ag)Front: 280/70R16. Rear: 420/70R24Reference

4WD Optional tires (ag)Front: 7.50R18. Rear: 13.6-28Reference

2WD Length395 cmReference

4WD Length400 cmReference

Width149 cmReference

2WD Front tread122 to 162 cmReference

Rear tread110 to 145 cmReference

2WD ROPS2350 kgReference

2WD Cab2500 kgReference

4WD ROPS2550 kgReference

4WD Cab2699 kgReference

2WD Steering wheel131 cmReference

4WD Steering wheel132 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

ROPS Charging amps45Reference

Cab Charging amps65Reference

Battery CCA800Reference

Battery volts12Reference

Battery AH100Reference

New Holland TN65F Height

ROPS221 cmReference

Cab228 cmReference

Speeds

With 380/70R20 rear tires and 30 KPH transmission.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
