Tractor · 2004Unverified

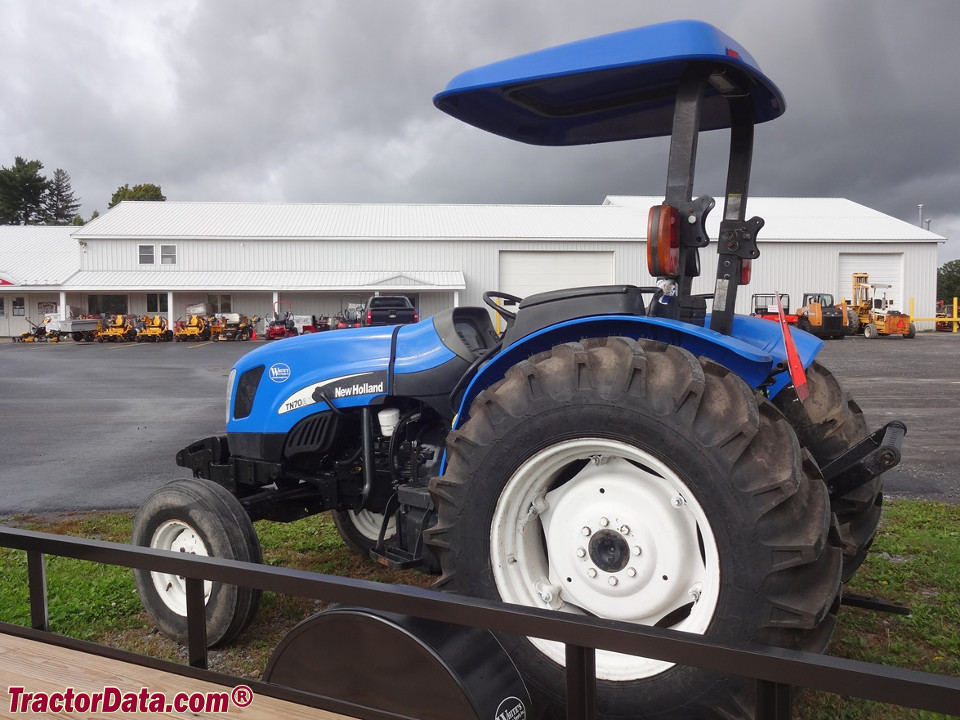

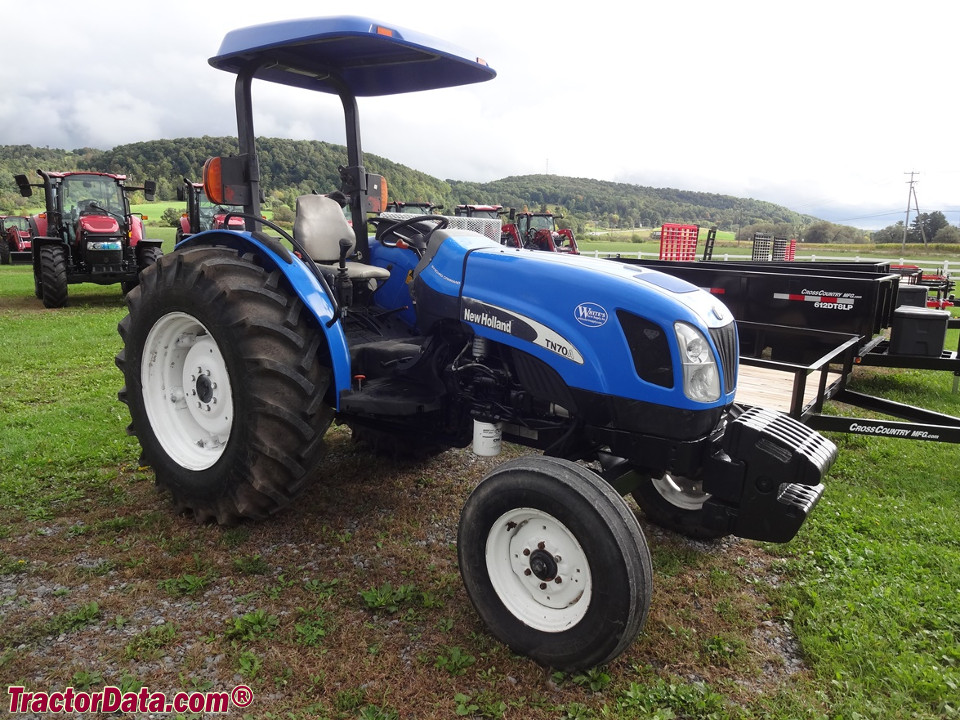

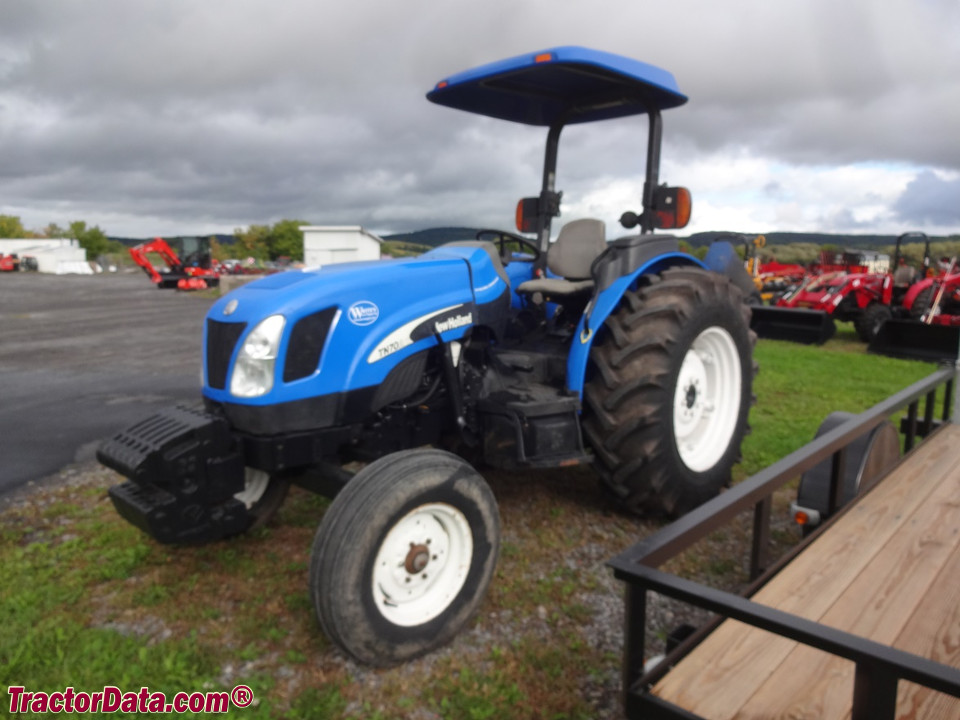

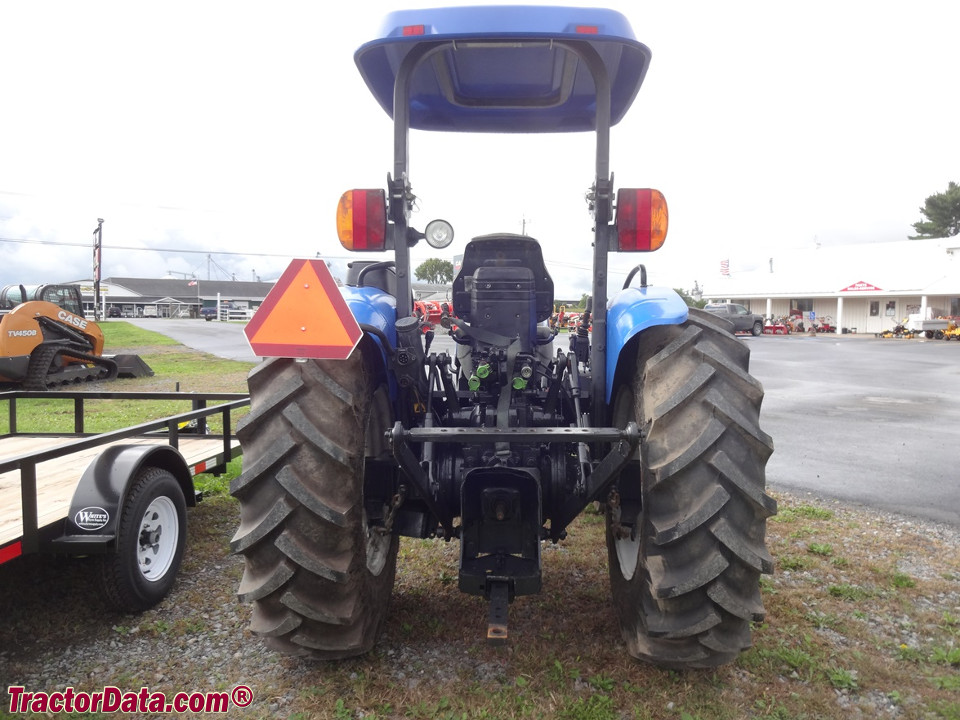

New Holland TN70A
New Holland TN70A — TN-A Series · 70 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
70 hp
Max power
45.3 kW
Weight
5020 to 5975 pounds
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Utility tractorReference
Built in Jesi, ItalyReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Steeringhydrostatic powerReference
Differential wet disc brakesReference
ROPS. Canopy optionalReference
Variants
TN70AROPSReference
TN70DAcabReference
TN70SASuperSteerReference
JX1070Csimilar CaseIH modelReference
Engine
Iveco 2.9L 3-cyl dieselReference
Fuel tank87.1 LReference
Engine (gross)52.2 kWReference
Engine (net)50.0 kWReference
Drawbar (tested)38.5 kWReference
IvecoReference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke104 x 115 mmReference
EmissionsTier 2Reference
Power (net)50.0 kWReference
Power (gross)52.2 kWReference
Fuel use14.7 l/hourReference
Air cleanerdual paper elementsReference
Compression18:1Reference
Rated RPM2300Reference
Torque288.8 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Max power45.3 kWReference
Power at rated engine speed44.4 kWReference
Max power38.5 kWReference
Transmission
8-speed constant mesh with mechanical shuttleReference
12-speed partially synchronized with mechanical shuttleReference
16-speed partially synchronized with mechanical shuttleReference
16-speed partially synchronized with power shuttleReference
Typeconstant mesh with mechanical shuttleReference
Gears8 forward and reverseReference
Clutch280mm dry cerametallic plateReference
Left-hand synchronized mechanical shuttle requires clutching.Reference
TransmissionSynchro CommandReference
Typepartially synchronized with mechanical shuttleReference
Gears12 forward and reverseReference
Four synchronized gears with three ranges. Left-hand synchronized mechanical shuttle requires clutching.Reference
TransmissionSynchro Command PlusReference
Gears16 forward and reverseReference
Typepartially synchronized with power shuttleReference
Clutchsix 113mm wet organic discsReference
Left-hand clutchless power shuttle.Reference
PTO & Hydraulics
PTO (claimed)42.5 kWReference
PTO (tested)45.3 kWReference
Typeopen centerReference
Pressure190.0 barReference
Valves1 to 4Reference
Pump flow48.4 lpmReference
Pump flow64.0 lpmReference
Steering flow28.0 lpmReference
Steering flow35.6 lpmReference
Rear TypeII/IReference
Rear lift (at 24"/610mm)1796 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Power at rated PTO speed45.0 kWReference
Dimensions
2WD Wheelbase207 cmReference
4WD Wheelbase200 cmReference
Weight5020 to 5975 poundsReference
2WD Length389 cmReference
4WD Length385 cmReference
Width170 cmReference
Height (ROPS)241 cmReference
Height (Folded ROPS)190 cmReference
2WD Shipping2277 kgReference
4WD Shipping2456 kgReference
4WD Operating2710 kgReference
Ballasted3200 kgReference
New Holland TN70A attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps65Reference
Battery CCA730Reference
Battery volts12Reference
Test results
Diesel 16-speed 4WDMarch 1 - May 1, 2004Link: OCED Tractor Test 2164 fileReference
PTO performanceReference
Fuel use14.4 l/hourReference
Fuel use14.8 l/hourReference
Fuel use14.0 l/hourReference
Drawbar performanceReference
Gear 3M Hi used for power test.Reference
Max pull2746 kgReference
Gear 2M Lo used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
