Tractor · 2004Unverified

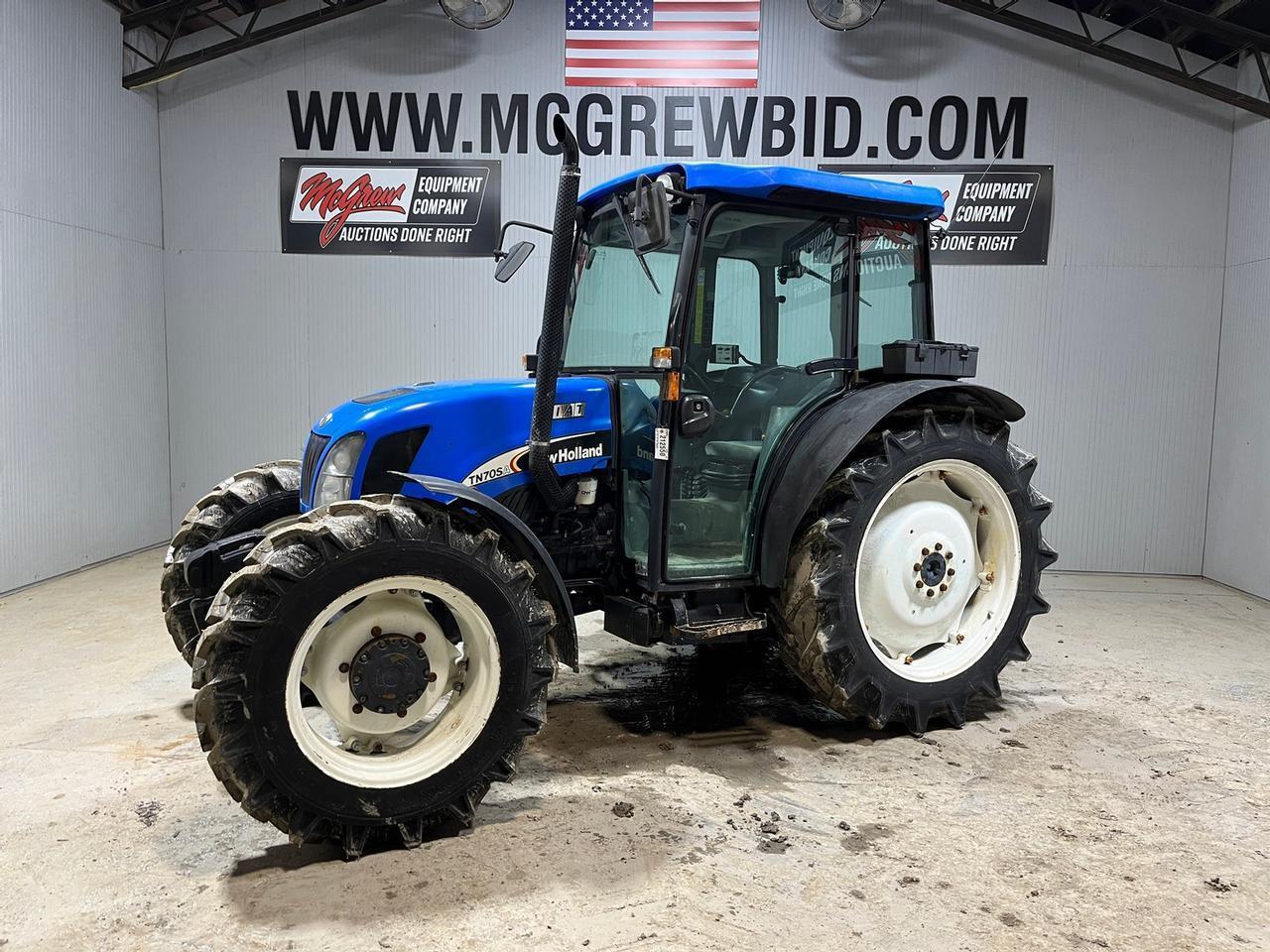

New Holland TN70SA
New Holland TN70SA — TN-A Series · 70 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
70 hp
Weight
6426 to 6602 pounds
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Utility tractorReference
Built in Jesi, ItalyReference
Four-wheel driveReference
Steeringhydrostatic power, SuperSteer front axleReference
Differential wet disc brakesReference
ROPS. Cab optional.Reference
Variants
TN70AROPSReference
TN70DAcabReference
TN70SASuperSteerReference
Engine
Iveco 2.9L 3-cyl dieselReference
Fuel tank73.8 LReference
Engine (gross)52.2 kWReference
Engine50.0 kWReference
IvecoReference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke104 x 115 mmReference
EmissionsTier 2Reference
Power50.0 kWReference
Power (gross)52.2 kWReference
Fuel use14.7 l/hourReference
Air cleanerdual paper elementsReference
Compression18:1Reference
Rated RPM2300Reference
Torque288.8 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed partially synchronized with mechanical shuttleReference
16-speed partially synchronized with power shuttleReference
TransmissionSynchro Command PlusReference
Typepartially synchronized with mechanical shuttleReference
Gears16 forward and reverseReference
Left-hand synchronized mechanical shuttle requires clutching.Reference
Typepartially synchronized with power shuttleReference
Left-hand clutchless power shuttle.Reference
PTO & Hydraulics
PTO (claimed)42.5 kWReference
Typeopen centerReference
Pressure190.0 barReference
Valves1 to 4Reference
Pump flow48.4 lpmReference
Pump flow64.0 lpmReference
Steering flow28.0 lpmReference
Steering flow35.6 lpmReference
Rear TypeII/IReference
Rear lift (at 24"/610mm)1796 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Dimensions
Wheelbase206 cmReference
Weight6426 to 6602 poundsReference
Length393 cmReference
Width170 cmReference
Shipping weight2914 kgReference
Shipping weight2994 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps65Reference
Charging amps85 (with cab)Reference
Battery CCA730Reference
Battery volts12Reference
New Holland TN70SA Height
ROPS241 cmReference
ROPS190 cmReference
Cab230 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
