Tractor · 1999Unverified

New Holland TN75

Name: New Holland TN75
Brand: New Holland

New Holland TN75 — TN Series · 75 hp. Reference specifications; pending source verification.

The New Holland TN75 is a tractor with a rated engine power of 75 hp, typical of its mid-range class. Produced between 1999 and 2003, it features a 3-cylinder turbocharged diesel liquid-cooled engine, coupled with four-wheel drive and a powershift transmission. The tractor's operating weight is listed as 4700 to 6460 pounds. It is suitable for operations on areas of up to 200 ac.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

75 hp

Weight

4700 to 6460 pounds

Catalogue coverage

Variants represented

Richest spec table

151 rows

Recorded power

75 hp

Transmissions

8-speed gear

Production years

1999-2003

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Utility tractorReference

Built in Jesi, ItalyReference

Two- or four-wheel driveReference

Final drivesplanetaryReference

Power steeringReference

Differential hydraulic wet disc brakesReference

Two-post folding ROPS. Cab optional.Reference

Variants

TN75ROPSReference

TN75DcabReference

TN75SSuper SteerReference

TN75ForchardReference

Engine

Iveco 2.9L 3-cyl dieselReference

Engine (gross)55.9 kWReference

Engine (net)53.7 kWReference

Iveco 8035Reference

turbocharged dieselReference

3-cylinderReference

liquid-cooledReference

Displacement2.9 LReference

Bore/Stroke104 x 115 mmReference

Power (net)53.7 kWReference

Power (gross)55.9 kWReference

Air cleanerdual paper elementsReference

Compression18:1Reference

Rated RPM2300Reference

Torque295.6 NmReference

Torque RPM1400Reference

Starter volts12Reference

Power at rated engine speed47.7 kWReference

Fuel TypeDieselReference

No of Cylinders3 CylinderReference

Rated engine speed2,300 RPMReference

Engine torque at rated speed98.9 kgReference

Bore and stroke4.094x4.528 inchesReference

Compression ratio18:1Reference

Cooling systemliquid-cooledReference

Transmission

8-speed gearReference

8-speed partially synchronizedReference

16-speed partially synchronizedReference

32-speed two-speed power shiftReference

TypegearReference

Gears8 forward and reverseReference

Clutch280mm dry discReference

Four gears (1-4) in two ranges (A/B) with mechanical shuttle. Non-synchronized transmission, available only on the base TN75 model.Reference

TransmissionSynchro CommandReference

Typepartially synchronizedReference

Clutchdry disc (mechanical shuttle)Reference

Clutchwet disc (power shuttle)Reference

Four synchronized gears (1-4) in two ranges (A/B). Available as either mechanical shuttle or power shuttle.Reference

TransmissionSynchro Command PlusReference

Gears16 forward and reverseReference

Four synchronized gears (1-4) in four ranges (A-D). Available as either mechanical shuttle or power shuttle. Standard transmission on the TN55D and TN55S.Reference

TransmissionDual CommandReference

Typetwo-speed power shiftReference

Gears32 forward and 16 reverseReference

Clutchwet discsReference

Four synchronized gears (1-4) in four ranges (A-D) with two-speed push-button power shift. Left-hand power shuttle.Reference

Transmission TypeSync ShuttleReference

forward and reverse options8F and 8RReference

Rear Axle Drive TypeplanetaryReference

PTO & Hydraulics

PTO (claimed)46.2 kWReference

PTO (tested)47.7 kWReference

Hydraulic system42.0 LReference

Typeopen centerReference

Capacity42.0 LReference

Pressure190.0 barReference

Valves2 to 3Reference

Pump flow64.0 lpmReference

Steering flow27.3 lpmReference

Steering flow34.8 lpmReference

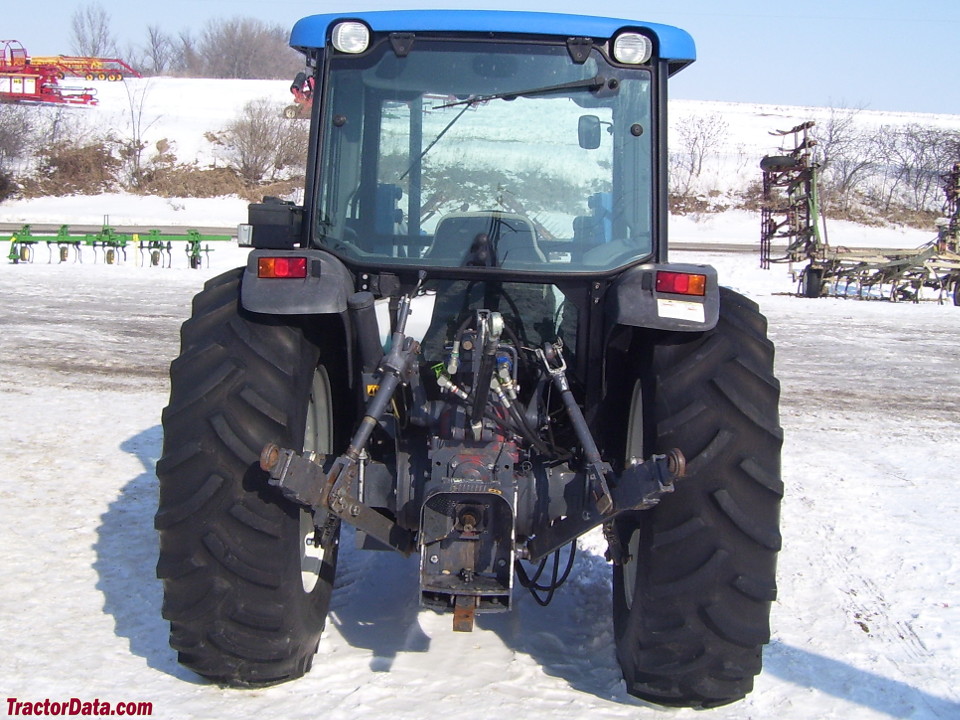

Rear TypeIIReference

Rear lift (at 24"/610mm)1797 kgReference

Rear PTOindependentReference

Clutchdry discReference

Rear PTO Type540 (1.375)Reference

Power at rated PTO speed47.5 kWReference

Capacities

Fuel65.5 LReference

Fuel tank65.5 LReference

Dimensions

2WD ROPS Wheelbase207 cmReference

4WD ROPS Wheelbase200 cmReference

2WD Cab Wheelbase213 cmReference

4WD Cab Wheelbase206 cmReference

4WD SuperSteer Wheelbase237 cmReference

Weight4700 to 6460 poundsReference

Front tire7.50-16Reference

2WD Rear tire14.9-28Reference

2WD Standard tires (ag)Front: 7.50-16. Rear: 14.9-28Reference

4WD Standard tires (ag)Front: 8.3-24. Rear: 14.9-28Reference

Length393 cmReference

Width170 cmReference

2WD ROPS Shipping2131 kgReference

4WD ROPS Shipping2347 kgReference

2WD Cab Shipping2297 kgReference

4WD Cab Shipping2569 kgReference

SuperSteer ROPS Shipping2435 kgReference

SuperSteer Cab Shipping2635 kgReference

2WD Cab Operating2560 kgReference

4WD Cab Operating2930 kgReference

New Holland TN75 attachments

front-end loaderReference

TN75 Serial Numbers

19981128584Reference

19991157784Reference

20001184745Reference

20011219138Reference

20021252974Reference

20031287178Reference

20041317364Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

ROPS Charging amps45Reference

Cab Charging amps65Reference

Battery CCA730Reference

Battery volts12Reference

Total cold cranking amps730 CCAReference

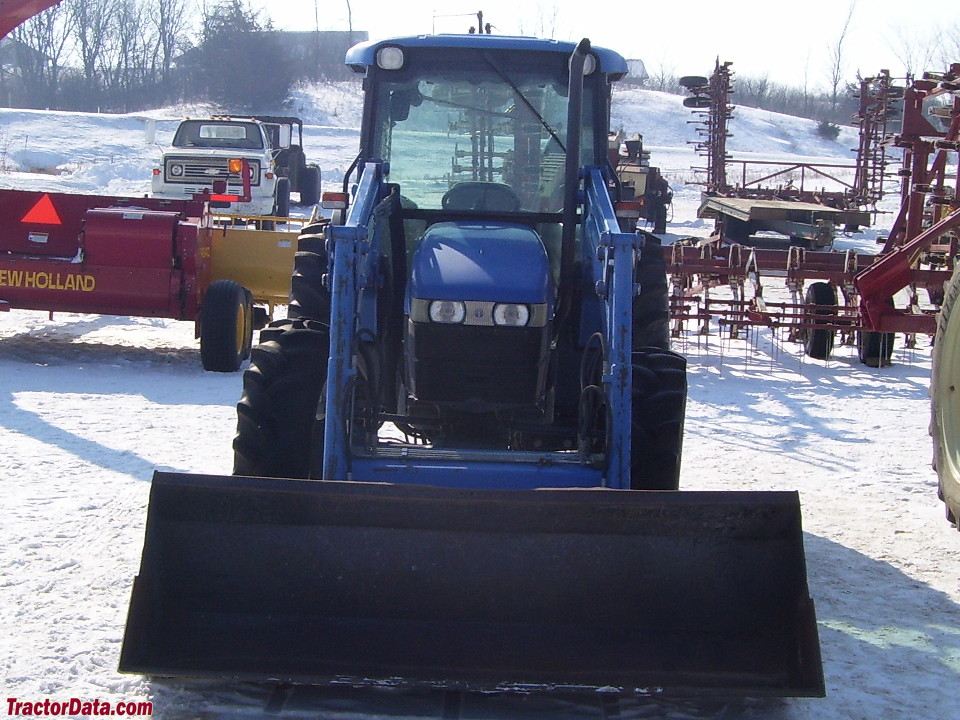

Attachment overview

New Holland 32LA loaderReference

New Holland 32LA MSL loaderReference

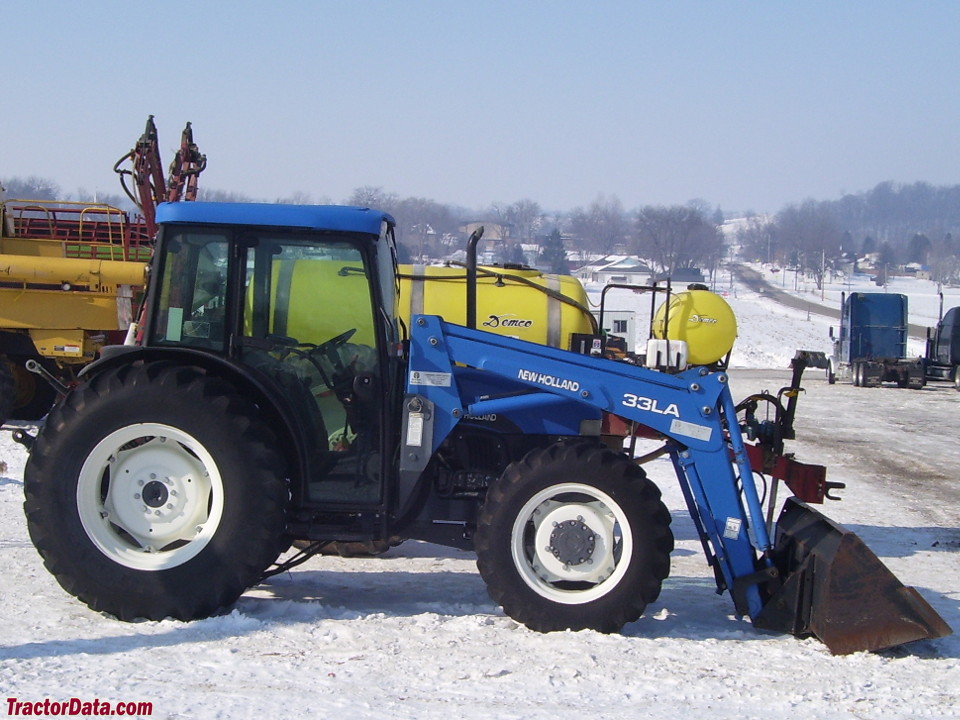

New Holland 33LA loaderReference

New Holland 33LA MSL loaderReference

The 32LA loader fit TN and TND models, the 33LA fit TNS SuperSteer tractors.Reference

New Holland TN75 Height

ROPS241 cmReference

Cab230 cmReference

Exhaust228 cmReference

Test results

Diesel 8-speed 4WDMarch 1 - November 30, 1999Link: OCED Tractor Test 1897 fileReference

PTO performanceReference

Fuel use14.4 l/hourReference

Fuel use14.0 l/hourReference

Drawbar performanceReference

Max pull3030 kgReference

Gear 2S used for pull test.Reference

Speeds

With 14.9-28 rear tires and 30 KPH transmission.Reference

General

Make & ModelNew HollandReference

Rollover protective structureTwo-post folding ROPSReference

Country of manufacturerItalyReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Steering & brakes

Brakesdifferential hydraulic wet discReference

Steering typepowerReference

Hydraulics

Hydraulics Typeopen centerReference

Maximum operating pressure2,755 psiReference

Remote Valves2 to 3 ValvesReference

Steering & Implements flow9.2 gpm (16.9 gpm)Reference

Rear Hitch category (SAE designation)Category IIReference

Dimensions & weight

Wheelbase237.5 cmReference

Height Over Cab230.6 cmReference

Height Over ROPS241.6 cmReference

Overall Length393.7 cmReference

Overall Width170.7 cmReference

Wheels & tyres

Rear Wheel TypeAg - 14.9-28Reference

Front Wheel TypeAg - 7.50-16.Reference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
