Tractor · 2004Unverified

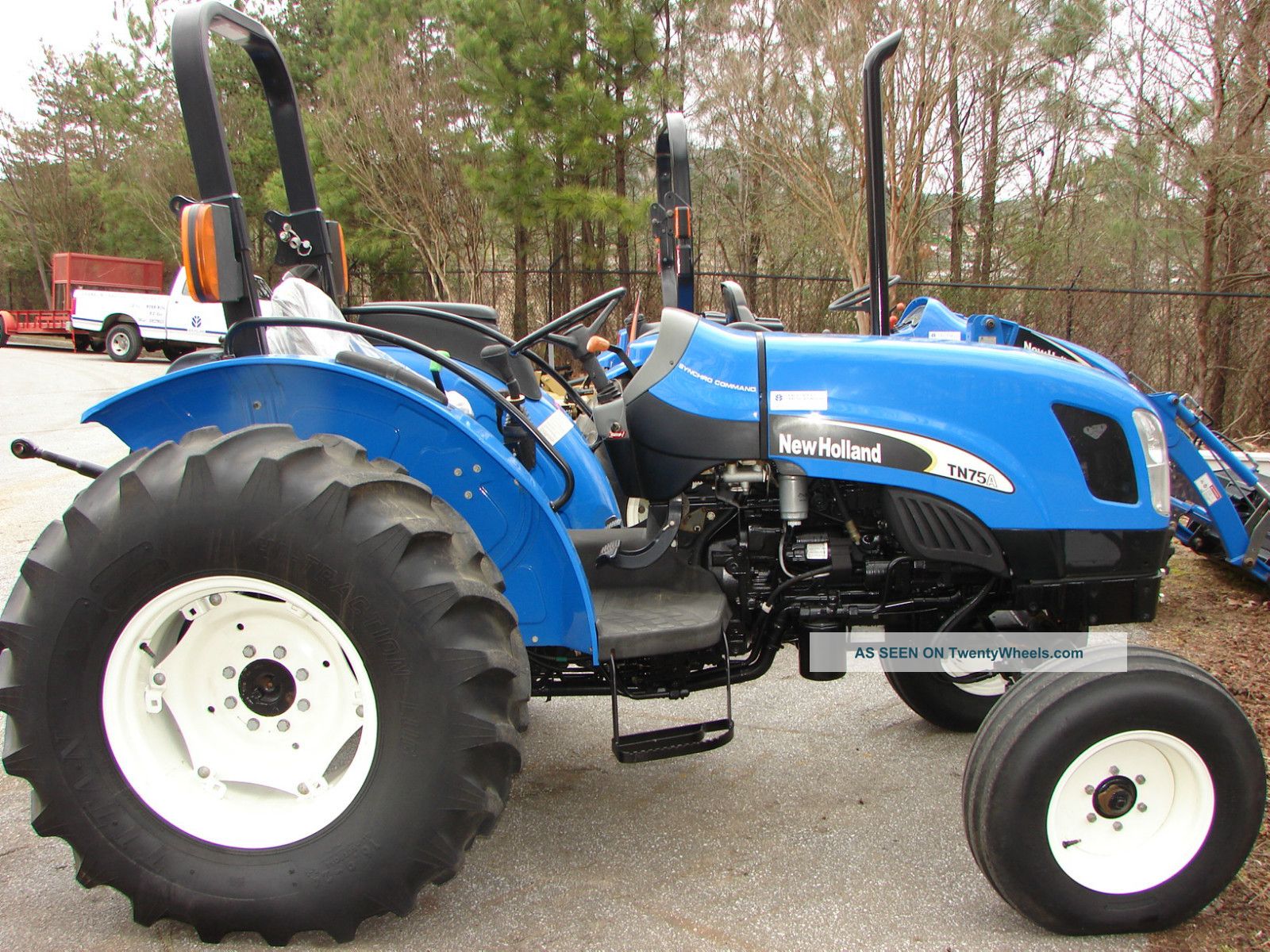

New Holland TN75A

Name: New Holland TN75A
Brand: New Holland

New Holland TN75A — TN-A Series · 75 hp. Reference specifications; pending source verification.

The New Holland TN75A is a tractor with a rated power output of 75 hp, a mid-range figure for its class. It was manufactured from 2004 to 2008 and features a 3-cylinder turbocharged diesel liquid-cooled engine paired with four-wheel drive and a hydrostatic transmission. The tractor's operating weight ranges from 5020 to 5810 pounds. It is suitable for operations spanning up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

75 hp

Max power

48.0 kW

Weight

5020 to 5810 pounds

Catalogue coverage

Variants represented

Richest spec table

96 rows

Recorded power

75 hp

Transmissions

8-speed constant mesh with mechanical shuttle

Production years

2004-2008

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Utility tractorReference

Built in Jesi, ItalyReference

Two- or four-wheel driveReference

Differential lockmechanical rearReference

Steeringhydrostatic powerReference

Differential wet disc brakesReference

ROPS. Canopy optionalReference

Variants

TN75AROPSReference

TN75DAcabReference

TN75SASuperSteerReference

TN75FAnarrow/orchardReference

JX1075Csimilar CaseIH modelReference

Engine

Iveco 2.9L 3-cyl dieselReference

Fuel tank87.1 LReference

Engine (gross)55.9 kWReference

Engine (net)53.7 kWReference

Drawbar (tested)40.8 kWReference

IvecoReference

turbocharged dieselReference

3-cylinderReference

liquid-cooledReference

Displacement2.9 LReference

Bore/Stroke104 x 115 mmReference

EmissionsTier 2Reference

Power (net)53.7 kWReference

Power (gross)55.9 kWReference

Fuel use14.9 l/hourReference

Air cleanerdual paper elementsReference

Compression16.5:1Reference

Rated RPM2300Reference

Torque298.3 NmReference

Torque RPM1400Reference

StarterelectricReference

Starter volts12Reference

Max power48.0 kWReference

Power at rated engine speed47.4 kWReference

Max power40.8 kWReference

Transmission

8-speed constant mesh with mechanical shuttleReference

12-speed partially synchronized with mechanical shuttleReference

16-speed partially synchronized with mechanical shuttleReference

16-speed partially synchronized with power shuttleReference

Typeconstant mesh with mechanical shuttleReference

Gears8 forward and reverseReference

Clutch280mm dry cerametallic plateReference

Left-hand synchronized mechanical shuttle requires clutching.Reference

TransmissionSynchro CommandReference

Typepartially synchronized with mechanical shuttleReference

Gears12 forward and reverseReference

Four synchronized gears with three ranges. Left-hand synchronized mechanical shuttle requires clutching.Reference

TransmissionSynchro Command PlusReference

Gears16 forward and reverseReference

Typepartially synchronized with power shuttleReference

Clutchsix 113mm wet organic discsReference

Left-hand clutchless power shuttle.Reference

PTO & Hydraulics

PTO (claimed)46.2 kWReference

PTO (tested)48.0 kWReference

Typeopen centerReference

Pressure190.0 barReference

Valves1 to 4Reference

Pump flow64.0 lpmReference

Steering flow28.0 lpmReference

Steering flow35.6 lpmReference

Rear TypeII/IReference

Rear lift (at 24"/610mm)1796 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Power at rated PTO speed47.4 kWReference

Dimensions

2WD Wheelbase207 cmReference

4WD Wheelbase200 cmReference

Weight5020 to 5810 poundsReference

2WD Length389 cmReference

4WD Length385 cmReference

Width170 cmReference

Height (ROPS)241 cmReference

Height (Folded ROPS)190 cmReference

2WD Shipping2277 kgReference

4WD Shipping2456 kgReference

2WD Operating2365 kgReference

4WD Operating2635 kgReference

Ballasted3200 kgReference

New Holland TN75A attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps65Reference

Battery CCA730Reference

Battery volts12Reference

Test results

Diesel 16-speed 4WDOctober 1, 2003 - April 1, 2004Link: OCED Tractor Test 2130 fileReference

PTO performanceReference

Fuel use15.1 l/hourReference

Fuel use14.8 l/hourReference

Drawbar performanceReference

Fuel use14.4 l/hourReference

Gear 3M Lo used for power test.Reference

Max pull2782 kgReference

Gear 1M Hi used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
