Tractor · 2004Unverified

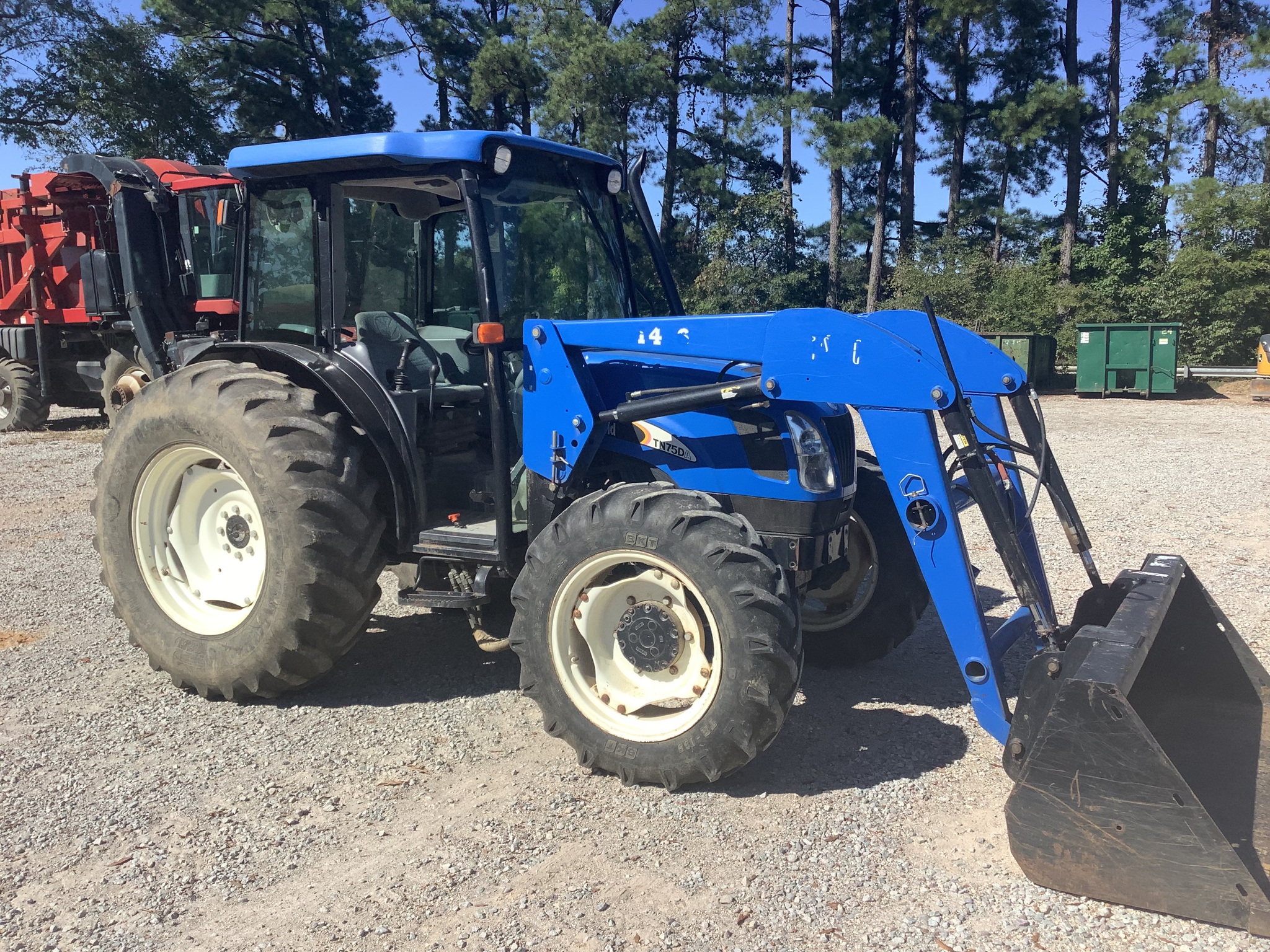

New Holland TN75DA
New Holland TN75DA — TN-A Series · 75 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
75 hp
Max power
48.0 kW
Weight
5605 to 6450 pounds
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Utility tractorReference
Built in Jesi, ItalyReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Steeringhydrostatic powerReference
Differential wet disc brakesReference
Cab standard.Reference
Variants
TN75AROPSReference
TN75DAcabReference
TN75SASuperSteerReference
TN75FAnarrow/orchardReference
Engine
Iveco 2.9L 3-cyl dieselReference
Fuel tank73.8 LReference
Engine (gross)55.9 kWReference
Engine (net)53.7 kWReference
Drawbar (tested)40.3 kWReference
IvecoReference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke104 x 115 mmReference
EmissionsTier 2Reference
Power (net)53.7 kWReference
Power (gross)55.9 kWReference
Fuel use14.9 l/hourReference
Air cleanerdual paper elementsReference
Compression16.5:1Reference
Rated RPM2300Reference
Torque298.3 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Max power48.0 kWReference
Power at rated engine speed47.3 kWReference
Max power40.3 kWReference
Transmission
16-speed partially synchronized with mechanical shuttleReference
16-speed partially synchronized with power shuttleReference
TransmissionSynchro Command PlusReference
Typepartially synchronized with mechanical shuttleReference
Gears16 forward and reverseReference
Clutch280mm dry cerametallic plateReference
Left-hand synchronized mechanical shuttle requires clutching.Reference
Typepartially synchronized with power shuttleReference
Clutchsix 113mm wet organic discsReference
Left-hand clutchless power shuttle.Reference
PTO & Hydraulics
PTO (claimed)46.2 kWReference
PTO (tested)48.0 kWReference
Typeopen centerReference
Pressure190.0 barReference
Valves1 to 4Reference
Pump flow64.0 lpmReference
Steering flow28.0 lpmReference
Steering flow35.6 lpmReference
Rear TypeII/IReference
Rear lift (at 24"/610mm)1796 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Power at rated PTO speed47.3 kWReference
Dimensions
Wheelbase213 cmReference
Wheelbase206 cmReference
Weight5605 to 6450 poundsReference
Length395 cmReference
Length391 cmReference
Width170 cmReference
Height (cab)230 cmReference
Shipping2542 kgReference
Shipping2721 kgReference
Operating2673 kgReference
Operating2925 kgReference
Ballasted3490 kgReference
New Holland TN75DA attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps85Reference
Battery CCA730Reference
Battery volts12Reference
Test results
Diesel 16-speed 4WDOctober 1, 2003 - April 1, 2004Link: OCED Tractor Test 2131 fileReference
PTO performanceReference
Fuel use15.1 l/hourReference
Fuel use14.8 l/hourReference
Drawbar performanceReference
Fuel use14.4 l/hourReference
Gear 3M Lo used for power test.Reference
Max pull2989 kgReference
Gear 2M Lo used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
