Tractor · 1998Unverified

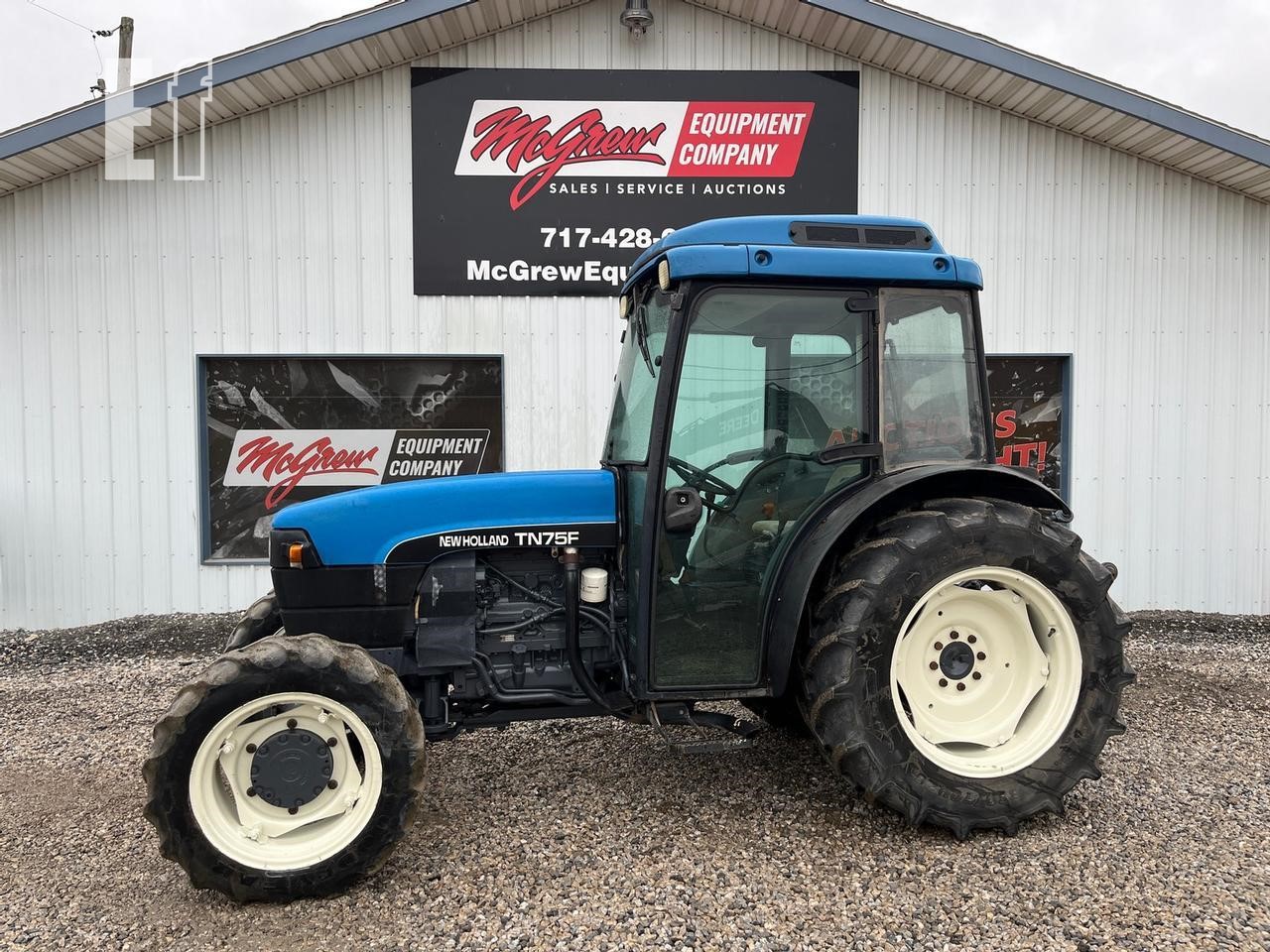

New Holland TN75F
New Holland TN75F — TNF Series · 78 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
78 hp
Weight
5401 to 6173 pounds
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Orchard/Vineyard tractorReference
Two- or four-wheel driveReference
2WD Differential lockmechanicalReference
4WD Differential lockelectro-hydraulicReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post mid-mount folding ROPS. Cab optional with air-conditioning.Reference
Variants
TN75ROPSReference
TN75DcabReference
TN75SSuper SteerReference
TN75ForchardReference
Engine
Iveco 3.9L 4-cyl dieselReference
Fuel tank60.9 LReference
Engine (gross)57.8 kWReference
Engine (net)56.7 kWReference
Iveco 8045Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke104 x 115 mmReference
Power (net)56.7 kWReference
Power (gross)57.8 kWReference
Pre-heatingthermostartReference
Compression17:1Reference
Rated RPM2300Reference
Firing order1-3-4-2Reference
StarterelectricReference
Starter volts12Reference
ROPS Coolant capacity10.5 LReference
Cab Coolant capacity12.5 LReference
Oil capacity10.5 LReference
Transmission
16-speed partially synchronizedReference
32-speed two-speed power shiftReference
Typepartially synchronizedReference
Gears16 forward and reverseReference
Clutch279.4mm dry discReference
Oil capacity44.0 LReference
Four synchronized gears (1-4) in four ranges. Tractor must be stopped (and clutch used) to shift range. Mechanical shuttle lever.Reference
ManufacturerDual CommandReference
Typetwo-speed power shiftReference
Gears32 forward and 16 reverseReference
Oil capacity55.0 LReference
Four synchronized gears (1-4) in four ranges with two-speed push-button power shift and left-hand power shuttle. Push-button power shift only applies to forward speeds.Reference
PTO & Hydraulics
PTO (claimed)50.0 kWReference
Typeopen centerReference
Valves2Reference
Pump flow46.9 lpmReference
Pump flow64.0 lpmReference
Steering flow27.3 lpmReference
Steering flow34.8 lpmReference
Rear TypeII/IReference
Controlposition control and lower-link draft sensingReference
Rear lift (at 24"/610mm)1995 kgReference
Rear PTOindependentReference
Clutchcerametallic discReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1957Reference
Engine RPM540E@2132Reference
Engine RPM1000@2125Reference
Dimensions
2WD Wheelbase222 cmReference
4WD Wheelbase242 cmReference
Weight5401 to 6173 poundsReference
Front tire7.50-16Reference
2WD Rear tire420/70R28Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 420/70R28Reference
4WD Standard tires (ag)Front: 280/70R20. Rear: 420/70R28Reference
2WD Optional tires (ag)Front: 6.50-16. Rear: 380/70R28Reference
2WD Optional tires (ag)Front: 7.50-16. Rear: 14.9-28Reference
2WD Optional tires (ag)Front: 7.50-16. Rear: 16.9-28Reference
2WD Optional tires (ag)Front: 6.50-16. Rear: 420/70R24Reference
2WD Optional tires (ag)Front: 6.50-16. Rear: 13.6-28Reference
2WD Optional tires (ag)Front: 7.00-12. Rear: 380/70R20Reference
2WD Optional tires (ag)Front: 7.5L-15. Rear: 380/70R24Reference
4WD Optional tires (ag)Front: 280/70R16. Rear: 380/70R24Reference
4WD Optional tires (ag)Front: 260/70R20. Rear: 380/70R28Reference
4WD Optional tires (ag)Front: 280/70R20. Rear: 14.9-28Reference
4WD Optional tires (ag)Front: 280/70R16. Rear: 380/70R20Reference
4WD Optional tires (ag)Front: 260/70R18. Rear: 420/70R24Reference
4WD Optional tires (ag)Front: 280/70R18. Rear: 420/70R24Reference
4WD Optional tires (ag)Front: 300/70R20. Rear: 16.9-28Reference
4WD Optional tires (ag)Front: 10.5-18. Rear: 420/70R28Reference
4WD Optional tires (ag)Front: 7.50R18. Rear: 13.6-28Reference
2WD Length395 cmReference
4WD Length400 cmReference
Width149 cmReference
2WD Front tread122 to 162 cmReference
Rear tread110 to 145 cmReference
2WD ROPS2449 kgReference
2WD Cab2600 kgReference
4WD ROPS2649 kgReference
4WD Cab2800 kgReference
2WD Steering wheel137 cmReference
4WD Steering wheel136 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps45Reference
Cab Charging amps65Reference
Battery CCA800Reference
Battery volts12Reference
Battery AH100Reference
New Holland TN75F Height
ROPS226 cmReference
Cab228 cmReference
Speeds
With 420/70R28 rear tires and 30 KPH transmission.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
