Tractor · 2004Unverified

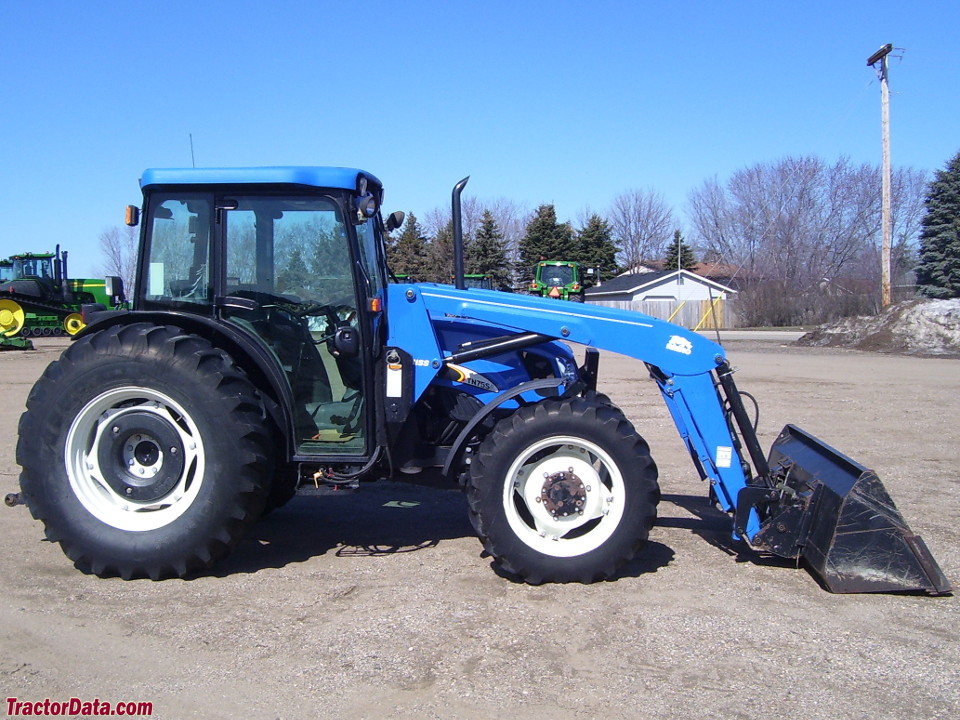

New Holland TN75SA
New Holland TN75SA — TN-A Series · 75 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
75 hp
Weight
5585 to 6050 pounds
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Utility tractorReference
Built in Jesi, ItalyReference
Four-wheel driveReference
Differential lockelectro-hydraulicReference
Steeringhydrostatic power, SuperSteer front axleReference
Differential wet disc brakesReference
ROPS. Cab optional.Reference
Variants
TN75AROPSReference
TN75DAcabReference
TN75SASuperSteerReference
TN75FAnarrow/orchardReference
Engine
Iveco 2.9L 3-cyl dieselReference
Fuel tank73.8 LReference
Engine (gross)55.9 kWReference
Engine (net)53.7 kWReference
IvecoReference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke104 x 115 mmReference
EmissionsTier 2Reference
Power (net)53.7 kWReference
Power (gross)55.9 kWReference
Fuel use14.9 l/hourReference
Air cleanerdual paper elementsReference
Compression16.5:1Reference
Rated RPM2300Reference
Torque298.3 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed partially synchronized with mechanical shuttleReference
16-speed partially synchronized with power shuttleReference
TransmissionSynchro Command PlusReference
Typepartially synchronized with mechanical shuttleReference
Gears16 forward and reverseReference
Left-hand synchronized mechanical shuttle requires clutching.Reference
Typepartially synchronized with power shuttleReference
Left-hand clutchless power shuttle.Reference
PTO & Hydraulics
PTO (claimed)46.2 kWReference
Typeopen centerReference
Pressure190.0 barReference
Valves1 to 4Reference
Pump flow64.0 lpmReference
Steering flow35.6 lpmReference
Rear TypeII/IReference
Rear lift (at 24"/610mm)1796 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase237 cmReference
Weight5585 to 6050 poundsReference
Length393 cmReference
Width170 cmReference
Height (ROPS)241 cmReference
Height (Folded ROPS)190 cmReference
Height (cab)230 cmReference
Shipping weight2533 kgReference
Shipping weight2744 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps65Reference
Charging amps85 (with cab)Reference
Battery CCA730Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
