Tractor · 2004Unverified

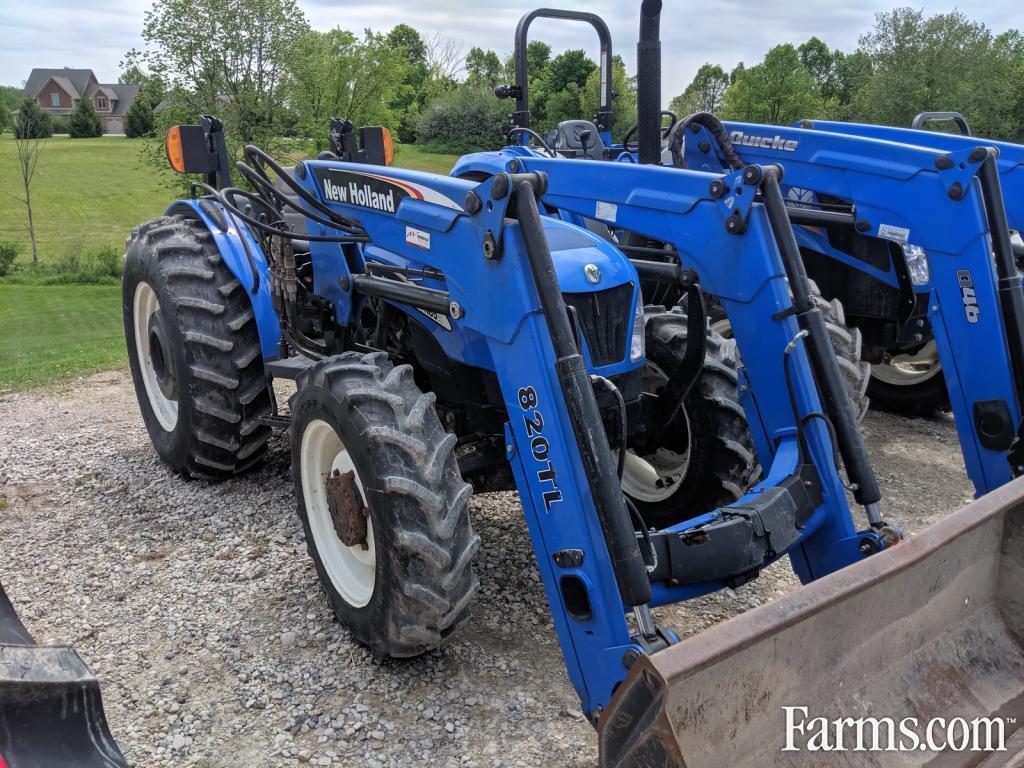

New Holland TN85A
New Holland TN85A — TN-A Series · 80 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
80 hp
Max power
53.7 kW
Weight
6008 to 6118 pounds
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Utility tractorReference
Built in Jesi, ItalyReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Steeringhydrostatic powerReference
Differential wet disc brakesReference
ROPS. Canopy optionalReference
Variants
TN85AROPSReference
TN85DAcabReference
TN85FAnarrow/orchardReference
JX1085Csimilar CaseIH modelReference
Engine
Iveco 4.5L 4-cyl dieselReference
Fuel tank88.9 LReference
Engine (gross)59.7 kWReference
Drawbar (tested)45.6 kWReference
IvecoReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke104 x 132 mmReference
EmissionsTier 2Reference
Power (gross)59.7 kWReference
Fuel use18.2 l/hourReference
Air cleanerdual paper elementsReference
Compression17.5:1Reference
Rated RPM2300Reference
Torque320.0 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Max power53.7 kWReference
Power at rated engine speed53.5 kWReference
Max power45.6 kWReference
Transmission
12-speed partially synchronized with mechanical shuttleReference
16-speed partially synchronized with mechanical shuttleReference
16-speed partially synchronized with power shuttleReference
TransmissionSynchro CommandReference
Typepartially synchronized with mechanical shuttleReference
Gears12 forward and reverseReference
Clutch280mm dry cerametallic plateReference
Four synchronized gears with three ranges. Left-hand synchronized mechanical shuttle requires clutching.Reference
TransmissionSynchro Command PlusReference
Gears16 forward and reverseReference
Left-hand synchronized mechanical shuttle requires clutching.Reference
Typepartially synchronized with power shuttleReference
Clutchsix 113mm wet organic platesReference
Left-hand clutchless power shuttle.Reference
PTO & Hydraulics
PTO (claimed)51.5 kWReference
PTO (tested)53.7 kWReference
Typeopen centerReference
Pressure190.0 barReference
Valves1 to 4Reference
Pump flow56.8 lpmReference
Steering flow35.6 lpmReference
Rear TypeII/IReference
Rear lift (at 24"/610mm)1796 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2196Reference
Power at rated PTO speed53.4 kWReference
Dimensions
2WD Wheelbase220 cmReference
4WD Wheelbase212 cmReference
Weight6008 to 6118 poundsReference
Length400 cmReference
Length400 cmReference
Width170 cmReference
Height (ROPS)241 cmReference
Height (Folded ROPS)190 cmReference
2WD Shipping weight2725 kgReference
4WD Shipping weight2775 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps65Reference
Battery CCA730Reference
Battery volts12Reference
Test results
Diesel 16-speed 4WDJuly 1 - October 1, 2005Link: OCED Tractor Test 2349 fileReference
PTO performanceReference
Fuel use18.2 l/hourReference
Drawbar performanceReference
Fuel use17.8 l/hourReference
Gear 4M-Low used for power test.Reference
Max pull3073 kgReference
Gear 2M-Low used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
