Tractor · 2004Unverified

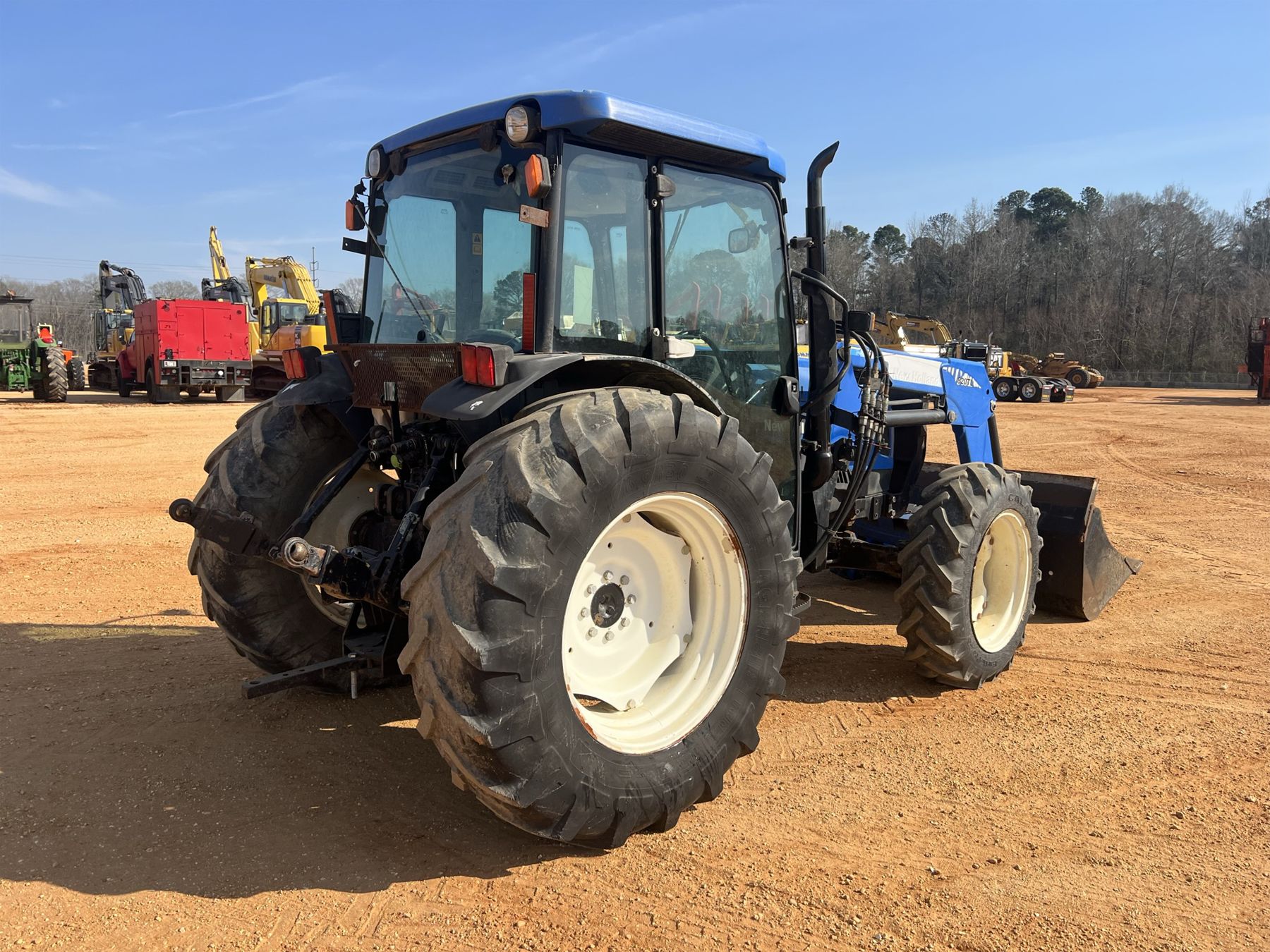

New Holland TN85DA
New Holland TN85DA — TN-A Series · 80 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
80 hp
Max power
53.7 kW
Weight
6230 to 6770 pounds
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Utility tractorReference
Built in Jesi, ItalyReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Steeringhydrostatic powerReference
Differential wet disc brakesReference
Cab standard.Reference
Variants
TN85AROPSReference
TN85DAcabReference
TN85FAnarrow/orchardReference
Engine
Iveco 4.5L 4-cyl dieselReference
Fuel tank88.9 LReference
Engine (gross)59.7 kWReference
Drawbar (tested)46.4 kWReference
IvecoReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke104 x 132 mmReference
EmissionsTier 2Reference
Power (gross)59.7 kWReference
Fuel use18.2 l/hourReference
Air cleanerdual paper elementsReference
Compression17.5:1Reference
Rated RPM2300Reference
Torque320.0 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Max power53.7 kWReference
Power at rated engine speed53.5 kWReference
Max power46.4 kWReference
Transmission
16-speed partially synchronized with mechanical shuttleReference
16-speed partially synchronized with power shuttleReference
TransmissionSynchro Command PlusReference
Typepartially synchronized with mechanical shuttleReference
Gears16 forward and reverseReference
Clutch280mm dry cerametallic plateReference
Left-hand synchronized mechanical shuttle requires clutching.Reference
Typepartially synchronized with power shuttleReference
Clutchsix 113mm wet organic discsReference
Left-hand clutchless power shuttle.Reference
PTO & Hydraulics
PTO (claimed)51.5 kWReference
PTO (tested)53.7 kWReference
Typeopen centerReference
Pressure190.0 barReference
Valves1 to 4Reference
Pump flow56.8 lpmReference
Steering flow35.6 lpmReference
Rear TypeII/IReference
Rear lift (at 24"/610mm)1796 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Power at rated PTO speed53.4 kWReference
Dimensions
Wheelbase226 cmReference
Wheelbase218 cmReference
Weight6230 to 6770 poundsReference
Length405 cmReference
Width170 cmReference
Height (cab)230 cmReference
Shipping2925 kgReference
Shipping2975 kgReference
Operating2825 kgReference
Operating3070 kgReference
Ballasted3635 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps85Reference
Battery CCA730Reference
Battery volts12Reference
Test results
Diesel 16-speed 4WDJuly 1 - October 1, 2005Link: OCED Tractor Test 2349 fileReference
PTO performanceReference
Fuel use18.2 l/hourReference
Drawbar performanceReference
Fuel use17.8 l/hourReference
Gear 3M Hi used for power test.Reference
Max pull3073 kgReference
Gear 2M Lo used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
