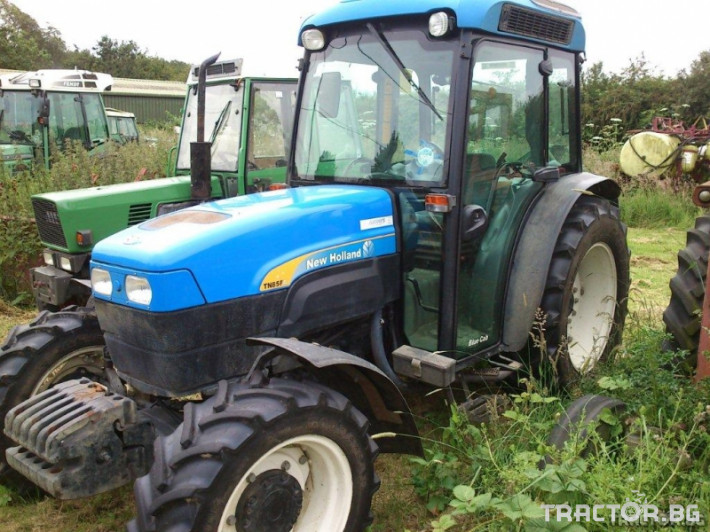

New Holland TN85FA
New Holland TN85FA — TN-A Series · 84 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
84 hp
Weight
2830 kg
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Utility tractorReference
Built in Jesi, ItalyReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Steeringhydrostatic powerReference
ROPS. Optional cab. Optional Blue Cab with A/C and filtration.Reference
Variants
TN85AROPSReference
TN85DAcabReference
TN85FAnarrow/orchardReference
Engine
Iveco 3.9L 4-cyl dieselReference
Engine (gross)62.6 kWReference
IvecoReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
EmissionsTier 2Reference
Power (gross)62.6 kWReference
Rated RPM2300Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed synchronized mechanical shuttleReference
Typesynchronized mechanical shuttleReference
Gears16 forward and reverseReference
PTO & Hydraulics
Typeopen centerReference
Valves2 or 3Reference
Pump flow46.9 lpmReference
Steering flow27.3 lpmReference
Rear TypeI/IN/IIReference
Rear lift (at 24"/610mm)2310 kgReference
Front HitchoptionalReference
Front lift (at 24"/610mm)1359 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Rear PTO Type540/750/1000 (optional)Reference
Front PTOindependent (optional)Reference
Front PTO Type1000Reference
Dimensions
Wheelbase223 cmReference
Wheelbase243 cmReference
Weight2830 kgReference
Length400 cmReference
Width140 cmReference
Height (cab)225 cmReference
Shipping weight2830 kgReference
Front tread122 to 162 cmReference
Rear tread114 to 147 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps85Reference
Battery CCA800Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
