Tractor · 2004Unverified

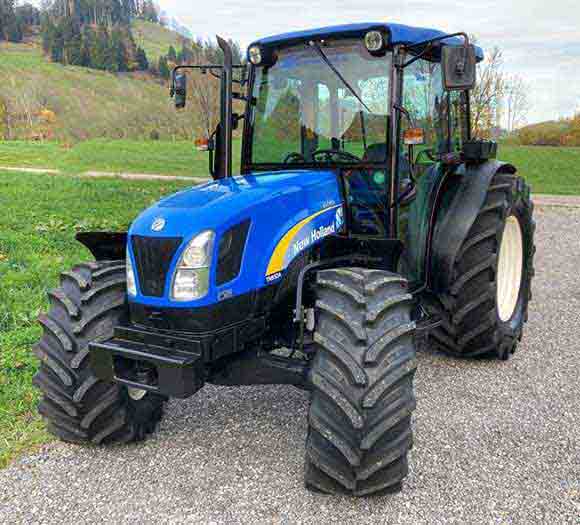

New Holland TN95A
New Holland TN95A — TN-A Series · 90 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
90 hp
Weight
2775 kg
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Utility tractorReference
Built in Jesi, ItalyReference
Four-wheel driveReference
Differential lockmechanical rearReference
Steeringhydrostatic powerReference
Differential wet disc brakesReference
ROPS. Canopy optionalReference
Variants
TN95AROPSReference
TN95DAcabReference
TN95FAnarrow/orchardReference
JX1095Csimilar CaseIH modelReference
Engine
Iveco 4.5L 4-cyl dieselReference
Fuel tank88.9 LReference
Engine (gross)67.1 kWReference
IvecoReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke104 x 132 mmReference
EmissionsTier 2Reference
Power (gross)67.1 kWReference
Fuel use19.7 l/hourReference
Air cleanerdual paper elementsReference
Compression17.5:1Reference
Rated RPM2300Reference
Torque364.8 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed partially synchronized with power shuttleReference
TransmissionSynchro CommandReference
Typepartially synchronized with power shuttleReference
Gears12 forward and reverseReference
Clutchsix 113mm wet organic platesReference
Left-hand clutchless power shuttleReference
PTO & Hydraulics
PTO (claimed)57.4 kWReference
Typeopen centerReference
Pressure190.0 barReference
Valves1 to 4Reference
Pump flow56.8 lpmReference
Steering flow35.6 lpmReference
Rear TypeII/IReference
Rear lift (at 24"/610mm)1796 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase212 cmReference
Weight2775 kgReference
Length400 cmReference
Width170 cmReference
Height (ROPS)241 cmReference
Height (Folded ROPS)190 cmReference
Shipping weight2775 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps65Reference
Battery CCA730Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
