Tractor · 2002Unverified

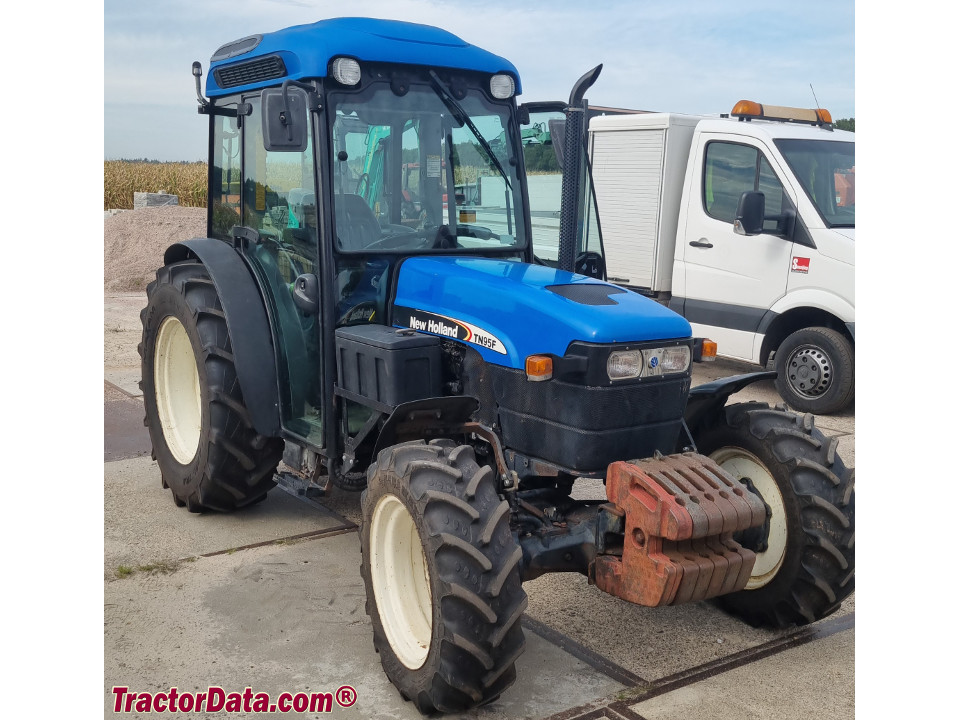

New Holland TN95F

Name: New Holland TN95F
Brand: New Holland

New Holland TN95F — TNF Series · 90 hp. Reference specifications; pending source verification.

The New Holland TN95F is a tractor rated at approximately 90 hp, a mid-range figure for its class. It was manufactured between 2002 and 2004. It features a 4-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a 16-speed gearbox. The tractor's operating weight is listed as 3100 kg, and it is suited to operations ranging from 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

90 hp

Weight

3100 kg

Catalogue coverage

Variants represented

Richest spec table

31 rows

Recorded power

90 hp

Recorded weight

3100 kg

Transmissions

16-speed

Production years

2002-2004

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Orchard/Vineyard tractorReference

Four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab optional.Reference

Engine

Iveco 3.9L 4-cyl dieselReference

Engine (gross)67.1 kWReference

Engine (net)64.7 kWReference

Iveco 8045Reference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.9 LReference

Bore/Stroke104 x 115 mmReference

Power (net)64.7 kWReference

Power (gross)67.1 kWReference

Compression16.5:1Reference

Rated RPM2300Reference

Starter volts12Reference

Transmission

16-speedReference

32-speedReference

TransmissionSynchro CommandReference

Gears16 forward and reverseReference

TransmissionDual CommandReference

Gears32 forward and 16 reverseReference

PTO & Hydraulics

PTO (claimed)59.7 kWReference

Rear PTO Type540/1000Reference

Dimensions

Weight3100 kgReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
