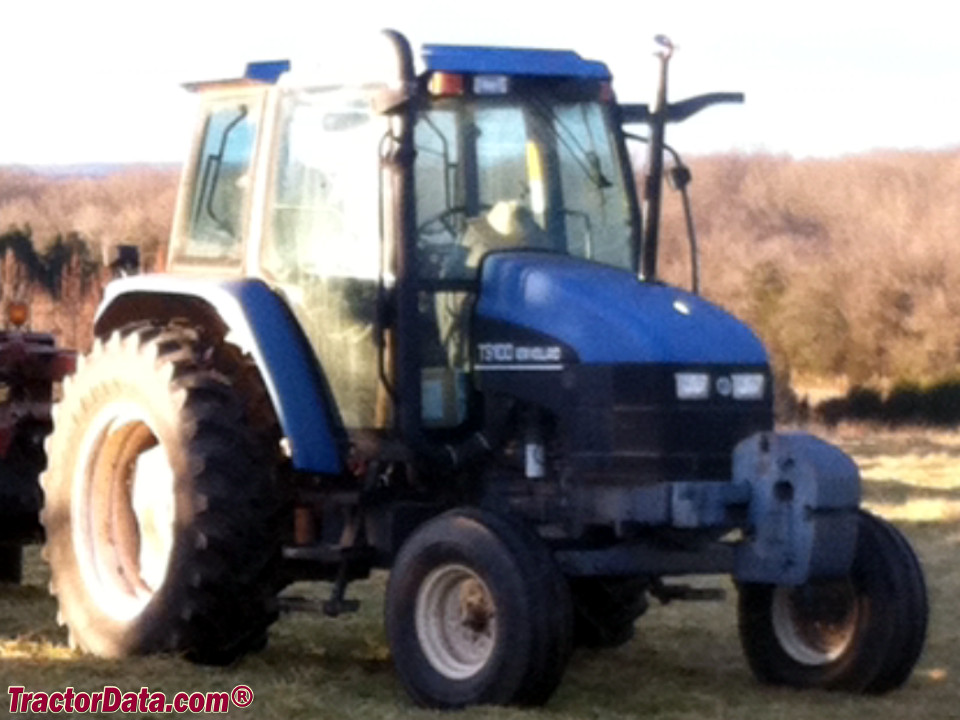

New Holland TS100

Name: New Holland TS100
Brand: New Holland

New Holland TS100 — TS Series · 85 hp. Reference specifications; pending source verification.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

85 hp

Max power

66.0 kW

Weight

7275 to 9855 pounds

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Built in Basildon, EnglandReference

Two- or four-wheel driveReference

Final drivesplanetaryReference

Differential lockmechanical rearReference

Differential lockelectro-hydraulic front and rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Trailer brakeshydraulicReference

Two-post folding ROPS. Cab optional with air-conditioning.Reference

Engine

New Holland 5.0L 4-cyl dieselReference

Fuel tank128.7 LReference

Fuel tank159.0 LReference

Engine74.6 kWReference

Drawbar (tested)53.4 kWReference

New Holland GenesisReference

turbocharged dieselReference

4-cylinderReference

liquid-cooled inlineReference

Displacement5.0 LReference

Bore/Stroke112 x 127 mmReference

Power74.6 kWReference

Compression17.5:1Reference

Rated RPM2170Reference

Firing order1-3-4-2Reference

StarterelectricReference

Starter volts12Reference

ROPS Coolant capacity14.0 LReference

Cab Coolant capacity15.9 LReference

Intake valve clearance0.406 mmReference

Exhaust valve clearance0.483 mmReference

Oil capacity11.4 LReference

Max power66.0 kWReference

Power at rated engine speed63.7 kWReference

Max power53.4 kWReference

Transmission

8-speed unsynchronized gearReference

16-speed two-speed power shiftReference

12-speedReference

24-speedReference

16-speed four-speed power shiftReference

TransmissionEconoShiftReference

Typeunsynchronized gearReference

Gears8 forward and 2 reverseReference

Clutchdry discReference

Four gears, plus reverse, in two ranges. Tractor must be stopped, and clutch used, before shifting gear or range. Optional creeper range.Reference

TransmissionEcono Dual CommandReference

Typetwo-speed power shiftReference

Gears16 forward and 4 reverseReference

Same as EconoShift, with an additional under-speed power shift button on the dashboard. The direct/underspeed ranges may be shifted on the move without the clutch. Four gears, plus reverse, in two ranges. Tractor must be stopped, and clutch used, before shifting gear or range. Optional creeper range.Reference

TransmissionSynchro CommandReference

Gears12 forward and reverseReference

Oil capacity56.8 LReference

Four gears provided in three ranges, plus a shuttle lever. Tractor may be shifted on the move, using the clutch, between gears, high or medium range, and forward-reverse shuttle. Tractor must be stopped to enter low range.Reference

TransmissionSynchro Dual CommandReference

Gears24 forward and reverseReference

Same as Synchro Command, with an additional under-speed power shift button on the gear lever. The direct/underspeed ranges may be shifted on the move without the clutch. A 'dump button' on the shuttle lever can be used for clutchless shifting between forward and reverse.Reference

TransmissionElectroShiftReference

Typefour-speed power shiftReference

Gears16 forward and reverseReference

Oil capacity60.6 LReference

Four gears in four ranges (A-D). Push-button power shifting between gears and clutch-free shifting between ranges A-B and C-D. Synchronized shift from ranges B to C. Power shuttle shifting.Reference

TransmissionElectroShift - creeperReference

Additional range of creeper gears can be selected using the clutch with the range in low. Creeper engaged by a toggle switch.Reference

PTO & Hydraulics

PTO (claimed)59.7 kWReference

PTO (tested)66.0 kWReference

Typeopen centerReference

Typeclosed centerReference

Pressure172.4 barReference

Pressure186.2 barReference

Valves2 to 4Reference

Pump flow36.7 lpmReference

Pump flow68.9 lpmReference

Pump flow79.5 lpmReference

Steering flow36.0 lpmReference

Steering press.144.8 barReference

Steering press.172.4 barReference

Rear TypeII/IINReference

Rear lift (at 24"/610mm)1905 kgReference

Rear lift (at 24"/610mm)2816 kgReference

Rear lift (at 24"/610mm)3737 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@1900Reference

Engine RPM1000@2050 (non-shiftable)Reference

Engine RPM1000@2060 (shiftable)Reference

Power at rated PTO speed66.0 kWReference

Dimensions

2WD Wheelbase233 cmReference

4WD Wheelbase236 cmReference

Weight7275 to 9855 poundsReference

Front tire7.50-16Reference

Rear tire16.9-30Reference

Ag front7.50-16Reference

Ag rear16.9-30Reference

2WD Length381 cmReference

4WD Length403 cmReference

Width201 cmReference

Width195 cmReference

Ground clearance39 cmReference

2WD Front tread142 to 226 cmReference

4WD Front tread142 to 213 cmReference

Rear tread152 to 203 cmReference

3299 kgReference

3749 kgReference

3929 kgReference

4470 kgReference

TS100 Serial Numbers

Location:Serial number decal inside the hood on the right side of the tractor.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

ROPS Charging amps55Reference

Cab Charging amps100Reference

Batteries1Reference

Batteries2Reference

Battery CCA800Reference

Battery volts12Reference
