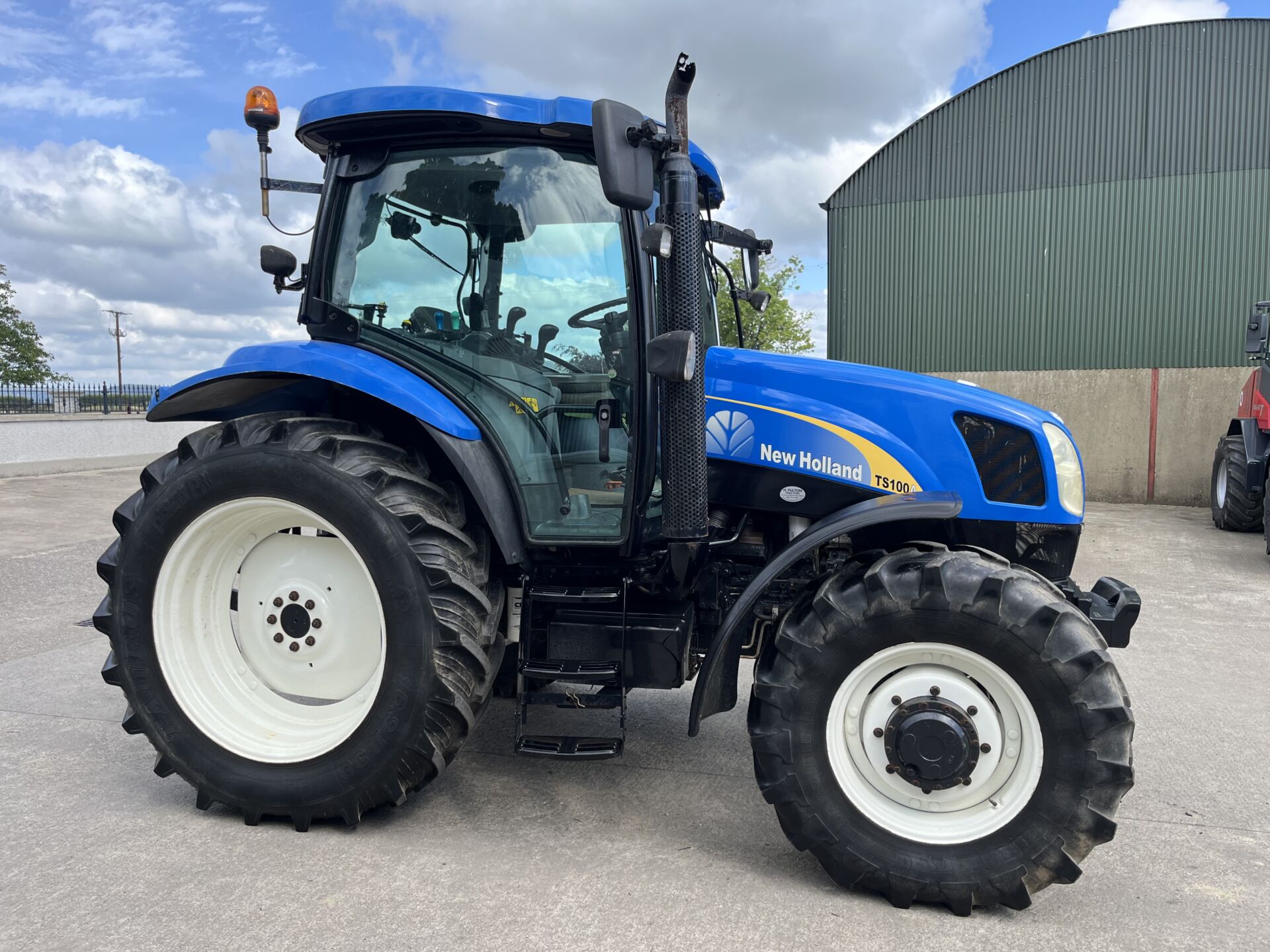

New Holland TS100A
New Holland TS100A — TS-A Series · 100 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
100 hp
Max power
65.4 kW
Weight
4560 kg
Hover a source tag to verify
Overview
ManufacturerNew Holland (a part of CNH)Reference
Utility tractorReference
Built in Basildon, EnglandReference
Two- or four-wheel driveReference
Differential lockelectro-hydraulic rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post folding ROPS. Cab available with air-conditioning.Reference
Variants
TS100A Deltaeconomy modelReference
TS100A Pluspremium modelReference
Engine
Iveco 4.5L 4-cyl dieselReference
Fuel tank180.2 LReference
SuperSteer Fuel tank155.9 LReference
Engine (gross)74.6 kWReference
Drawbar (tested)55.7 kWReference
Iveco NEF F4CReference
turbocharged intercooled dieselReference
4-cylinder 8-valveReference
liquid-cooled inlineReference
Displacement4.5 LReference
Bore/Stroke104 x 132 mmReference
Power (gross)74.6 kWReference
Fuel systemmechanical direct injectionReference
Air cleanerdual element dryReference
Pre-heatinggrid heaterReference
Rated RPM2200Reference
Plus Torque435.0 NmReference
Delta Torque398.0 NmReference
Torque RPM1400Reference
Firing order1-3-4-2Reference
StarterelectricReference
Starter volts12Reference
Max power65.4 kWReference
Power at rated engine speed64.8 kWReference
Max power55.7 kWReference
Transmission
12-speed partially synchronizedReference
24-speed two-speed power shiftReference
16-speed four-speed power shiftReference
TransmissionSynchro CommandReference
Typepartially synchronizedReference
Gears12 forward and reverseReference
Four gears provided in three ranges, plus a shuttle lever. Tractor may be shifted on the move, using the clutch, between gears, high or medium range, and forward-reverse shuttle. Tractor must be stopped to enter low range.Reference
TransmissionDual CommandReference
Typetwo-speed power shiftReference
Gears24 forward and reverseReference
Same as Synchro Command, with an additional underspeed powershift button on the gear lever. The direct/underspeed ranges may be shifted on the move without the clutch. A 'dump button' on the shuttle lever can be used for clutchless shifting between forward and reverse.Reference
TransmissionElectro CommandReference
Typefour-speed power shiftReference
Gears16 forward and reverseReference
Four gears in four ranges. Push-button shifting between gears. Clutchless shifting between ranges A-B and ranges C-D. The Autoshift tranmssion adds automatic computer-controlled shifting to the 16-speed transmission.Reference
PTO & Hydraulics
PTO (claimed)59.7 kWReference
PTO (tested)65.4 kWReference
Typeopen centerReference
Typeclosed-center load sensingReference
Pressure190.0 barReference
Pressure205.1 barReference
Rear valves2 to 4Reference
Mid valves2Reference
Pump flow62.8 lpmReference
Pump flow74.9 lpmReference
Pump flow100.3 lpmReference
Steering flow39.7 lpmReference
Rear TypeIIReference
Rear lift (at ends)6218 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1969Reference
Engine RPM540E@1546Reference
Engine RPM1000@2120Reference
Power at rated PTO speed65.0 kWReference
Dimensions
2WD Wheelbase241 cmReference
Terraglide Wheelbase242 cmReference
SuperSteer Wheelbase251 cmReference
Weight4560 kgReference
Front tire13.6R28Reference
Rear tire16.9R38Reference
Standard tires (ag)Front: 13.6R28. Rear: 16.9R38Reference
Length429 cmReference
Width187 cmReference
Height287 cmReference
Shipping weight4560 kgReference
Max weight8099 kgReference
Flange rear axleReference
Bar rear axle2489 mmReference
New Holland TS100A attachments
front-end loaderReference
TS100A Serial Numbers
Location:Serial number decal on the left side of the tractor, on the lower part of the radiator support bracket.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps70Reference
Cab Charging amps120Reference
Battery volts12Reference
Test results
Diesel 12-speed 4WDNovember 2004 - January 2005, Link: OCED Tractor Test 2241 fileReference
PTO performanceReference
Fuel use20.8 l/hourReference
Fuel use22.0 l/hourReference
Fuel use21.6 l/hourReference
Drawbar performanceReference
Gear 2II used for power test.Reference
Max pull5465 kgReference
Gear 1I used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
