Tractor · 2003Unverified

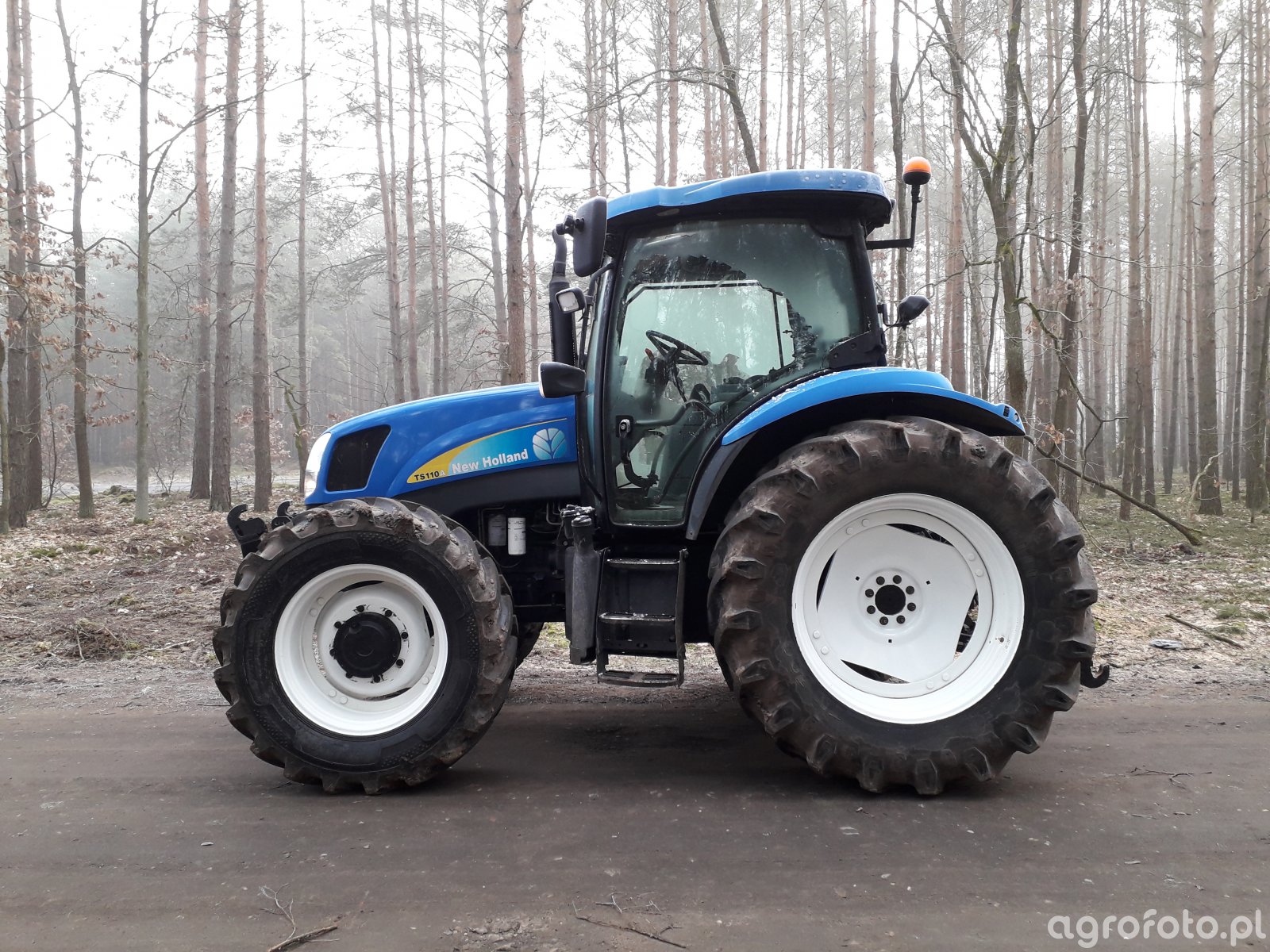

New Holland TS110A
New Holland TS110A — TS-A Series · 110 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
110 hp
Weight
4790 kg
Hover a source tag to verify
Overview
ManufacturerNew Holland (a part of CNH)Reference
Utility tractorReference
Built in Basildon, EnglandReference
Two- or four-wheel driveReference
Differential lockelectro-hydraulic rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post folding ROPS. Cab available with air-conditioning.Reference
Variants
TS110A Deltaeconomy modelReference
TS110A Pluspremium modelReference
Engine
Iveco 4.5L 4-cyl dieselReference
Fuel tank180.2 LReference
SuperSteer Fuel tank155.9 LReference
Engine (gross)82.0 kWReference
Engine (max)106.6 kWReference
Iveco NEF F4CReference
turbocharged intercooled dieselReference
4-cylinder 8-valveReference
liquid-cooled inlineReference
Displacement4.5 LReference
Bore/Stroke104 x 132 mmReference
Power (gross)82.0 kWReference
Maximum Power106.6 kWReference
Fuel systemelectronic common railReference
Air cleanerdual element dryReference
Pre-heatinggrid heaterReference
Rated RPM2200Reference
Idle RPM650-2400Reference
Torque520.0 NmReference
Torque RPM1400Reference
Firing order1-3-4-2Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed partially synchronizedReference
24-speed two-speed power shiftReference
16-speed four-speed power shiftReference
TransmissionSynchro CommandReference
Typepartially synchronizedReference
Gears12 forward and reverseReference
Four gears provided in three ranges, plus a shuttle lever. Tractor may be shifted on the move, using the clutch, between gears, high or medium range, and forward-reverse shuttle. Tractor must be stopped to enter low range.Reference
TransmissionDual CommandReference
Typetwo-speed power shiftReference
Gears24 forward and reverseReference
Same as Synchro Command, with an additional underspeed powershift button on the gear lever. The direct/underspeed ranges may be shifted on the move without the clutch. A 'dump button' on the shuttle lever can be used for clutchless shifting between forward and reverse.Reference
TransmissionElectro CommandReference
Typefour-speed power shiftReference
Gears16 forward and reverseReference
Four gears in four ranges. Push-button shifting between gears. Clutchless shifting between ranges A-B and ranges C-D. The Autoshift tranmssion adds automatic computer-controlled shifting to the 16-speed transmission.Reference
PTO & Hydraulics
PTO (claimed)67.1 kWReference
Typeopen centerReference
Typeclosed-center load sensingReference
Pressure210.0 barReference
Rear valves2 to 4Reference
Mid valves2Reference
Pump flow62.8 lpmReference
Pump flow74.9 lpmReference
Pump flow100.3 lpmReference
Steering flow39.7 lpmReference
Rear TypeIIReference
Rear lift (at ends)7864 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1969Reference
Engine RPM540E@1546Reference
Engine RPM1000@2120Reference
Dimensions
2WD Wheelbase241 cmReference
Terraglide Wheelbase242 cmReference
SuperSteer Wheelbase251 cmReference
Weight4790 kgReference
Front tire7.50-16Reference
2WD Rear tire16.9R38Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 16.9R38Reference
4WD Standard tires (ag)Front: 14.9R28. Rear: 16.9R38Reference
Length429 cmReference
Width187 cmReference
Height287 cmReference
Shipping weight4790 kgReference
Max weight8099 kgReference
Flange rear axleReference
Bar rear axle2489 mmReference
TS110A Serial Numbers
Location:Serial number decal on the left side of the tractor, on the lower part of the radiator support bracket.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps70Reference
Cab Charging amps120Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
