Tractor · 1998Unverified

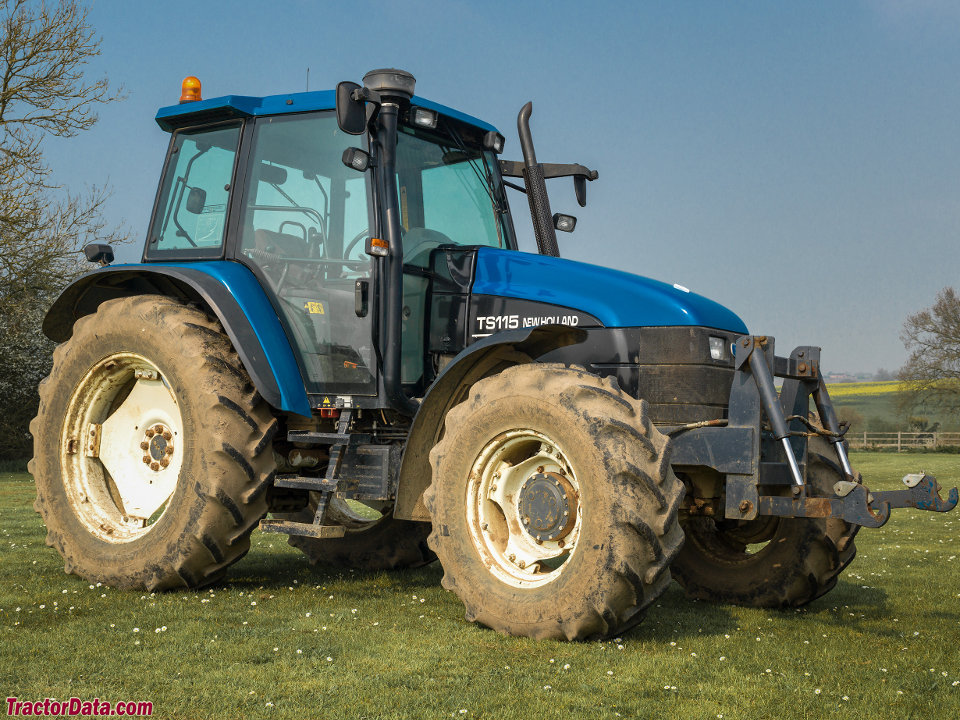

New Holland TS115
New Holland TS115 — TS Series · 95 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
95 hp
Weight
4739 kg
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Built in Basildon, EnglandReference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
New Holland 7.5L 6-cyl dieselReference
Fuel tank198.7 LReference
Engine82.0 kWReference
New Holland GenesisReference
dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement7.5 LReference
Bore/Stroke112 x 127 mmReference
Power82.0 kWReference
Compression17.5:1Reference
Rated RPM2070Reference
Firing order1-5-3-6-2-4Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity21.6 LReference
Intake valve clearance0.406 mmReference
Exhaust valve clearance0.483 mmReference
Oil capacity20.8 LReference
Transmission
12-speedReference
24-speedReference
16-speedReference
TransmissionSynchro CommandReference
Gears12 forward and reverseReference
Oil capacity56.8 LReference
Four gears provided in three ranges, plus a shuttle lever. Tractor may be shifted on the move, using the clutch, between gears, high or medium range, and forward-reverse shuttle. Tractor must be stopped to enter low range.Reference
TransmissionDual CommandReference
Gears24 forward and reverseReference
Same as Synchro Command, with an additional underspeed powershift button on the gear lever. The direct/underspeed ranges may be shifted on the move without the clutch. A 'dump button' on the shuttle lever can be used for clutchless shifting between forward and reverse.Reference
TransmissionElectroShiftReference
Gears16 forward and reverseReference
Oil capacity60.6 LReference
TransmissionElectroShift - creeperReference
Additional range of creeper gears can be selected using the clutch with the range in low. Creeper engaged by a toggle switch.Reference
PTO & Hydraulics
PTO (claimed)70.8 kWReference
Typeopen centerReference
Typeclosed centerReference
Pressure172.4 barReference
Pressure186.2 barReference
Valves2 to 4Reference
Pump flow35.2 lpmReference
Pump flow65.9 lpmReference
Pump flow75.7 lpmReference
Rear TypeIIReference
Rear lift (at 24"/610mm)1905 kgReference
Rear lift (at 24"/610mm)2816 kgReference
Rear lift (at 24"/610mm)3737 kgReference
Rear lift (at 24"/610mm)3900 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1900Reference
Engine RPM1000@2050 (non-shiftable)Reference
Engine RPM1000@2060 (shiftable)Reference
Dimensions
Wheelbase262 cmReference
Weight4739 kgReference
Front tire13.6-24Reference
Rear tire16.9-34Reference
Standard tires (ag)Front: 13.6-24. Rear: 16.9-34Reference
Length436 cmReference
Width201 cmReference
Height (cab)271 cmReference
Height (exhaust)282 cmReference
Clearance (front axle)44 cmReference
Clearance (drawbar)38 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps100Reference
Charging volts12Reference
Battery volts12Reference
Speeds
16.9-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
