Tractor · 2003Unverified

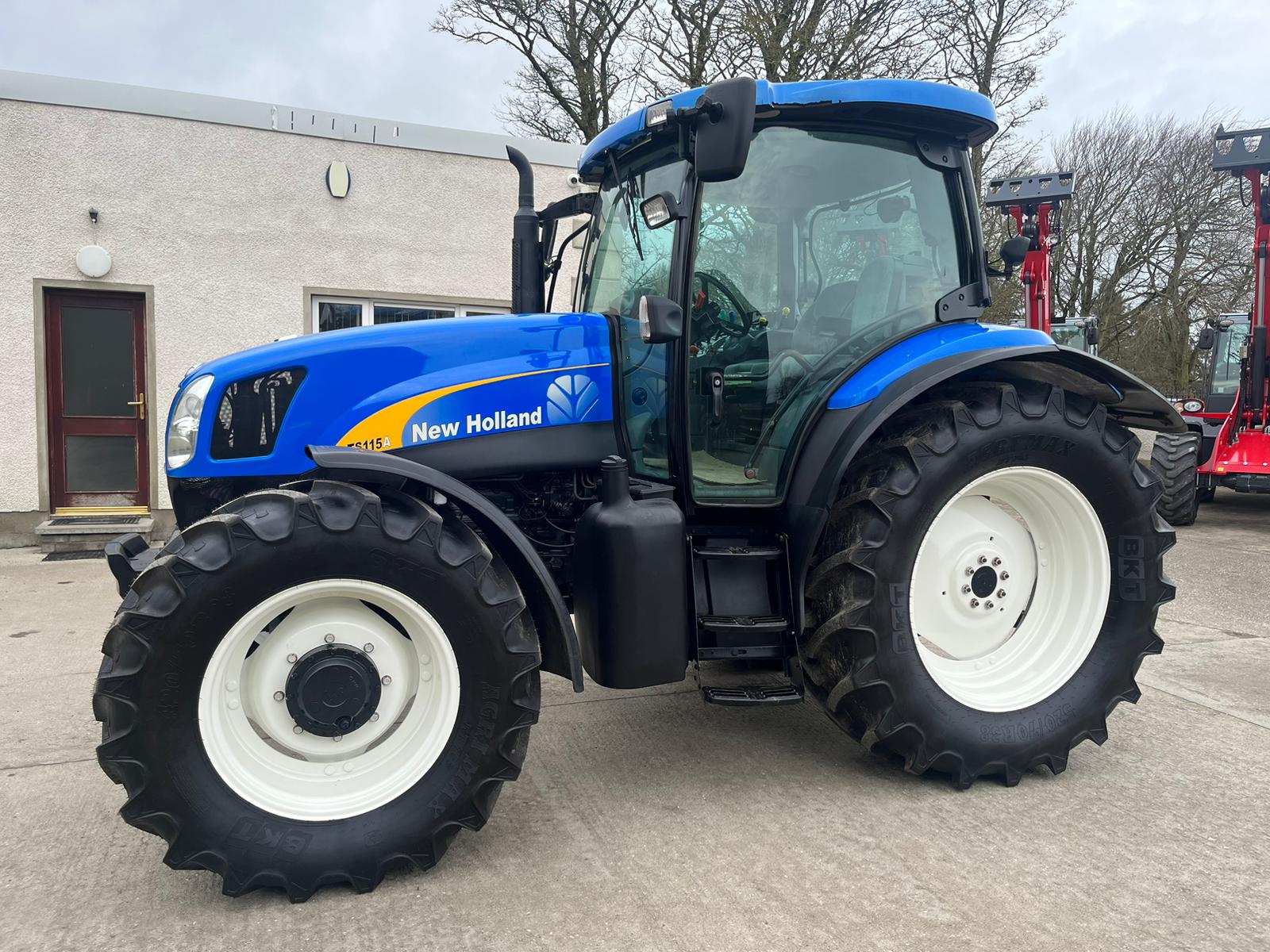

New Holland TS115A
New Holland TS115A — TS-A Series · 95 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
95 hp
Weight
4739 kg
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Utility tractorReference
Built in Basildon, EnglandReference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post foldable ROPS. Cab available with air-conditioning.Reference
Engine
New Holland 6.7L 6-cyl dieselReference
Fuel tank198.7 LReference
Engine85.8 kWReference
New Holland NEF F4DReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.7 LReference
Bore/Stroke104 x 132 mmReference
Power85.8 kWReference
Fuel systemdirect injection with mechanical governorReference
Air cleanerdual element dryReference
Pre-heatinggrid heaterReference
Rated RPM2200Reference
Starter volts12Reference
Transmission
12-speedReference
24-speedReference
16-speed power shiftReference
TransmissionSynchro-CommandReference
Gears12 forward and reverseReference
Oil capacity56.8 LReference
Four gears provided in three ranges, plus a shuttle lever. Tractor may be shifted on the move, using the clutch, between gears, high or medium range, and forward-reverse shuttle. Tractor must be stopped to enter low range.Reference
TransmissionDual-CommandReference
Gears24 forward and reverseReference
Same as Synchro Command, with an additional underspeed powershift button on the gear lever. The direct/underspeed ranges may be shifted on the move without the clutch. A 'dump button' on the shuttle lever can be used for clutchless shifting between forward and reverse.Reference
TransmissionElectro-ShiftReference
Typepower shiftReference
Gears16 forward and reverseReference
Four gears in four ranges. Push-button shifting between gears. Clutchless shifting between ranges A-B and ranges C-D.Reference
TransmissionAutoshiftReference
The Autoshift tranmssion adds automatic computer-controlled shifting to the 16-speed transmission.Reference
PTO & Hydraulics
PTO (claimed)70.8 kWReference
TypeopenReference
Typeclosed load sensing optionalReference
Pressure172.4 barReference
Pressure186.2 barReference
Valves2 to 4Reference
Pump flow35.2 lpmReference
Pump flow65.9 lpmReference
Pump flow75.7 lpmReference
Steering flow34.4 lpmReference
Steering press.172.4 barReference
Rear TypeIIReference
Rear TypeIIIN/IIReference
Controlmechanical lower link draft sensingReference
Controlelectronic draft controlReference
Rear lift (at 24"/610mm)1905 kgReference
Rear lift (at 24"/610mm)2816 kgReference
Rear lift (at 24"/610mm)3737 kgReference
Rear lift (at 24"/610mm)3900 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/1000Reference
Dimensions
2WD Wheelbase265 cmReference
4WD Wheelbase265 cmReference
Weight4739 kgReference
Length436 cmReference
Width201 cmReference
Height (cab)271 cmReference
Height (exhaust)282 cmReference
Ground clearance38 cmReference
Flange rear axleReference
Bar rear axle2489 mmReference
New Holland TS115A attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps100Reference
Batteries1Reference
Batteries2 (optional)Reference
Battery CCA800Reference
Battery volts12Reference
Speeds
16.9-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
