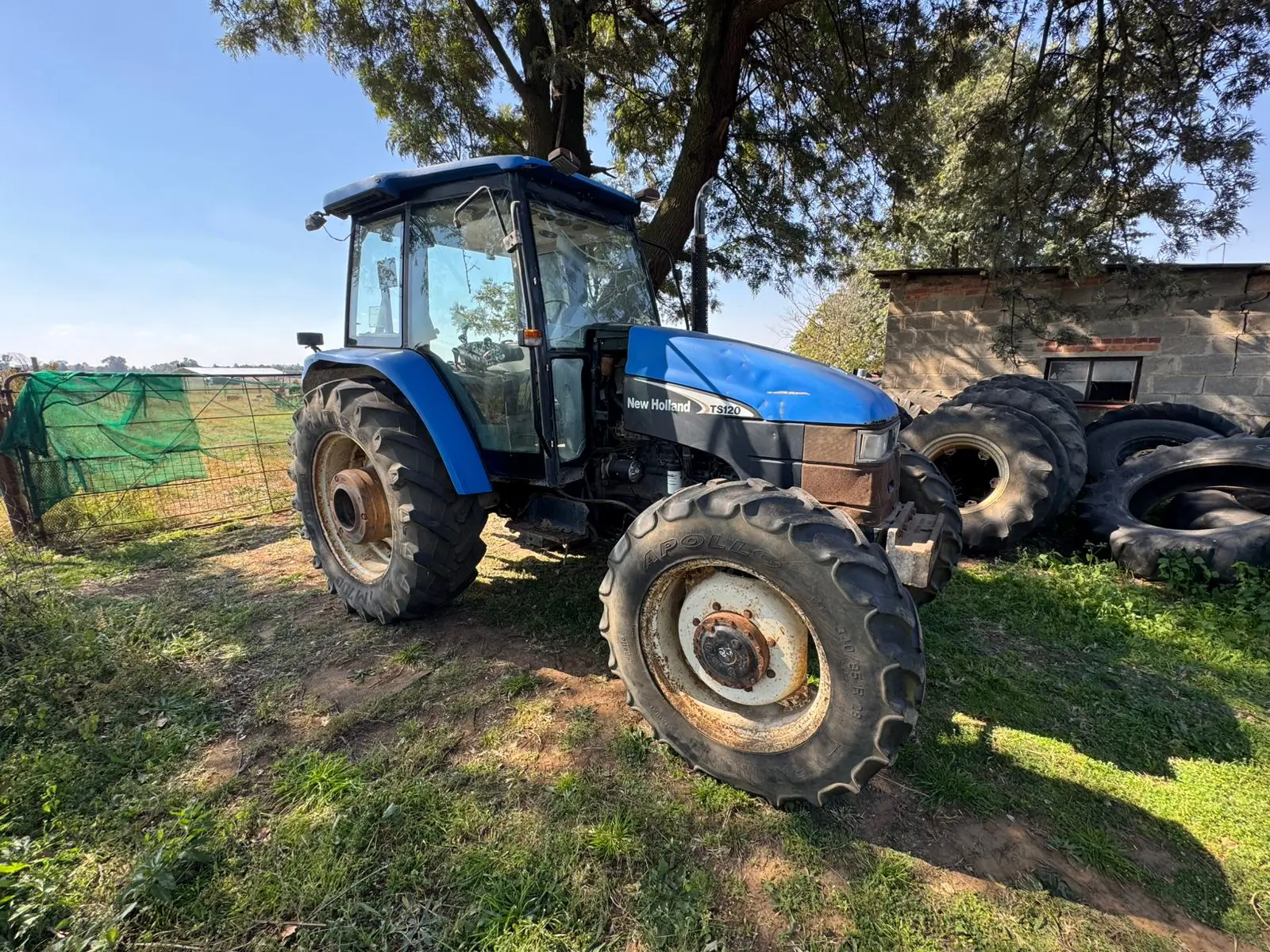

New Holland TS120
New Holland TS120 — TS Series · 118 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
118 hp
Weight
4740 kg
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Utility tractorReference
Built in Curitiba, BrazilReference
Four-wheel driveReference
Final drivesmechanical rearReference
Final driveselectrohydraulic rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab optional with air-conditioning.Reference
Engine
New Holland 7.5L 6-cyl dieselReference
Fuel tank149.9 LReference
Engine88.0 kWReference
New Holland GenesisReference
dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement7.5 LReference
Bore/Stroke112 x 127 mmReference
Power88.0 kWReference
Air cleanerdryReference
Rated RPM2070Reference
Torque466.5 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed gearReference
12-speedReference
TransmissionEconoShiftReference
TypegearReference
Gears16 forward and 4 reverseReference
Clutch330mm dry discReference
TransmissionSynchro CommandReference
Gears12 forward and reverseReference
Four gears provided in three ranges, plus a shuttle lever. Tractor may be shifted on the move, using the clutch, between gears, high or medium range, and forward-reverse shuttle. Tractor must be stopped to enter low range.Reference
PTO & Hydraulics
Typeopen centerReference
Pressure180.0 barReference
Pump flow35.2 lpmReference
Pump flow65.9 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift (at 24"/610mm)4990 kgReference
Rear lift (at 24"/610mm)6569 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
Wheelbase262 cmReference
Weight4740 kgReference
Front tire14.9-28Reference
Rear tire18.4-38Reference
Standard tires (ag)Front: 14.9-28. Rear: 18.4-38Reference
Length438 cmReference
Height (ROPS)253 cmReference
Ground clearance56 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
