Tractor · 2003Unverified

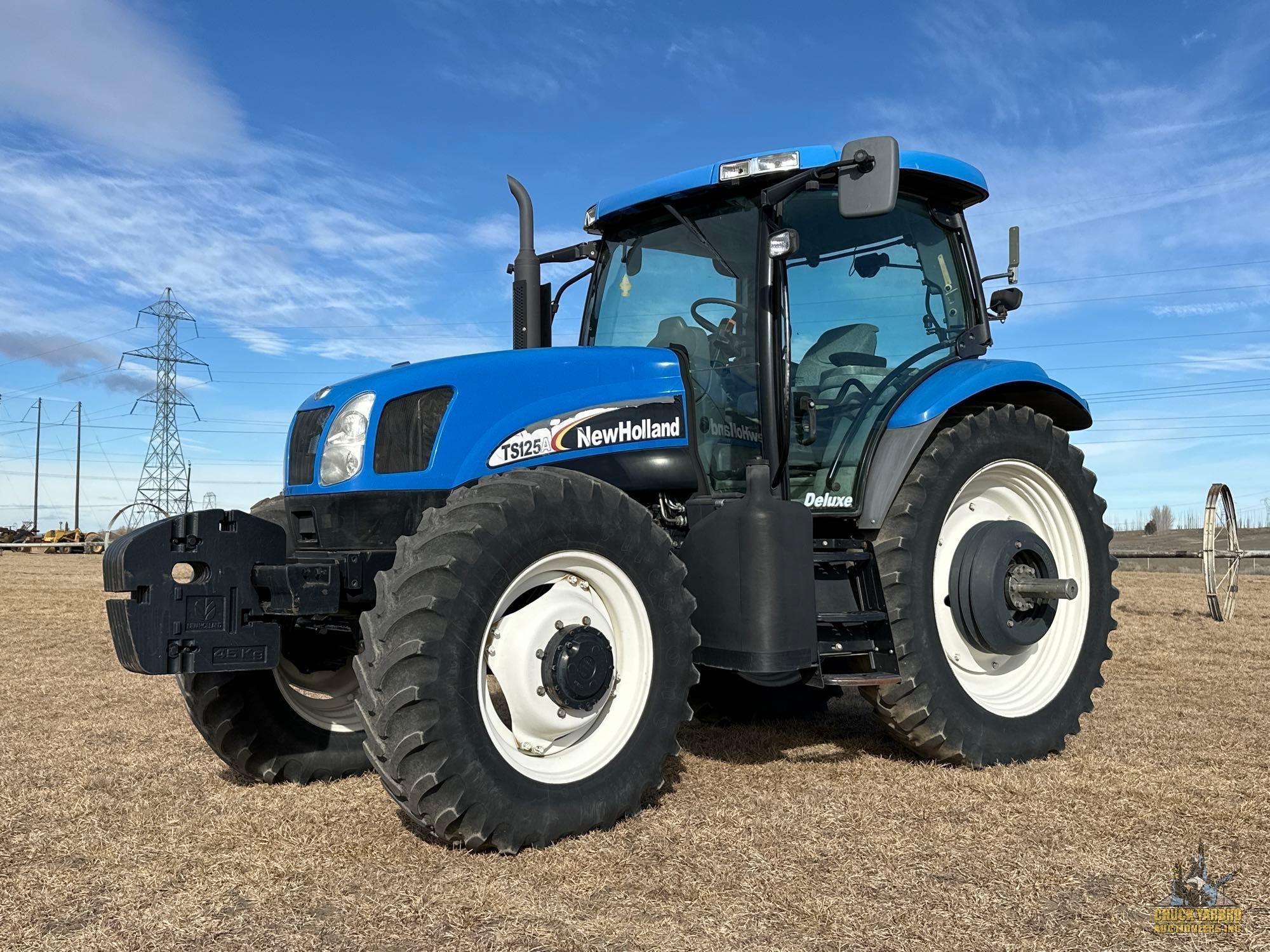

New Holland TS125A

Name: New Holland TS125A
Brand: New Holland

New Holland TS125A — TS-A Series · 125 hp. Reference specifications; pending source verification.

The New Holland TS125A is a tractor with a rating of 125 hp, positioning it among the higher-powered machines in its class. Manufactured from 2003 to 2005, the TS125A features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, which powers a four-wheel drive system via a powershift transmission. Its listed weight is 4939 kg. It is suited for tasks covering approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

125 hp

Max power

90.4 kW

Weight

4939 kg

Catalogue coverage

Variants represented

Richest spec table

106 rows

Recorded power

125 hp

Recorded weight

4939 kg

Transmissions

24-speed two-speed power shift

Production years

2003-2005

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew Holland (a part of CNH)Reference

Utility tractorReference

Built in Basildon, EnglandReference

Two- or four-wheel driveReference

Differential lockelectro-hydraulic rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Two-post folding ROPS. Cab available with air-conditioning.Reference

Engine

Iveco 6.7L 6-cyl dieselReference

Fuel tank254.0 LReference

SuperSteer Fuel tank235.8 LReference

Engine (gross)93.2 kWReference

Engine (max)114.8 kWReference

Drawbar (tested)66.0 kWReference

Iveco NEF F4DReference

turbocharged intercooled dieselReference

6-cylinder 24-valveReference

liquid-cooled inlineReference

Displacement6.7 LReference

Bore/Stroke104 x 132 mmReference

Power (gross)93.2 kWReference

Maximum Power114.8 kWReference

Fuel systemelectronic common railReference

Air cleanerdual element dryReference

Pre-heatinggrid heaterReference

Rated RPM2200Reference

Torque566.1 NmReference

Torque RPM1400Reference

Firing order1-5-3-6-2-4Reference

StarterelectricReference

Starter volts12Reference

Max power90.4 kWReference

Power at rated engine speed81.6 kWReference

Max power66.0 kWReference

Transmission

24-speed two-speed power shiftReference

16-speed partial power shiftReference

TransmissionDual CommandReference

Typetwo-speed power shiftReference

Gears24 forward and reverseReference

Four gears in three ranges with shuttle lever and an additional powershift button on the gear lever. Tractor may be shifted on the move, using the clutch, between gears, high or medium range, and forward-reverse shuttle. Tractor must be stopped to enter low range.Reference

TransmissionElectro CommandReference

Typepartial power shiftReference

Gears16 forward and reverseReference

Four gears in four ranges. Push-button shifting between gears. Clutchless shifting between ranges A-B and ranges C-D. Computer-controlled Autoshift.Reference

PTO & Hydraulics

PTO (claimed)78.3 kWReference

PTO (tested)90.4 kWReference

Typeopen centerReference

Typeclosed-center load sensingReference

Pressure210.0 barReference

Rear valves2 to 4Reference

Mid valves2Reference

Pump flow74.9 lpmReference

Pump flow100.3 lpmReference

Steering flow39.7 lpmReference

Rear TypeIIReference

Rear TypeIIIN/IIReference

Controlmechanical lower-link draft sensingReference

Controlelectronic draft controlReference

Rear lift (at 24"/610mm)4211 kgReference

Rear lift (at 24"/610mm)4363 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@1969Reference

Engine RPM540E@1546Reference

Engine RPM1000@2120Reference

Power at rated PTO speed84.7 kWReference

Dimensions

2WD Wheelbase265 cmReference

Terraglide Wheelbase266 cmReference

SuperSteer Wheelbase276 cmReference

Weight4939 kgReference

Front tire14.9R28Reference

Rear tire18.4R38Reference

Standard tires (ag)Front: 14.9R28. Rear: 18.4R38Reference

Length453 cmReference

Width216 cmReference

Shipping weight4939 kgReference

Max weight8700 kgReference

2WD Clearance (front axle)50 cmReference

4WD Clearance (front axle)47 cmReference

SuperSteer Clearance (front axle)45 cmReference

Clearance (drawbar)46 cmReference

Flange rear axleReference

Bar rear axle2489 mmReference

2WD Front tread142 to 213 cmReference

4WD Front tread140 to 210 cmReference

Rear tread142 to 202 cmReference

New Holland TS125A attachments

front-end loaderReference

TS125A Serial Numbers

Location:Serial number decal on the left side of the tractor, on the lower part of the radiator support bracket.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

ROPS Charging amps70Reference

Cab Charging amps120Reference

Battery volts12Reference

New Holland TS125A Height

ROPS289 cmReference

Cab296 cmReference

Exhaust291 cmReference

Test results

Diesel 24-speed 4WDMarch 2005 - May 2005, Link: OCED Tractor Test 2258 fileReference

PTO performanceReference

Fuel use25.0 l/hourReference

Fuel use25.4 l/hourReference

Drawbar performanceReference

Gear 12 used for power test.Reference

Max pull5792 kgReference

Gear 2 used for pull test.Reference

Speeds

With 18.4-38 rear tires and 30 kph transmission option.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
