Tractor · 2003Unverified

New Holland TS130A

Name: New Holland TS130A
Brand: New Holland

New Holland TS130A — TS-A Series · 130 hp. Reference specifications; pending source verification.

The New Holland TS130A is a tractor with a rated power of 130 hp, positioning it at the upper end of its class in terms of power output. This model was manufactured from 2003 to 2005. Key features include a 6-cylinder turbocharged intercooled diesel liquid-cooled engine and four-wheel drive with a powershift transmission. Operating weights range from 9986 to 11265 pounds, making it suitable for operations spanning 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

130 hp

Weight

9986 to 11265 pounds

Catalogue coverage

Variants represented

Richest spec table

88 rows

Recorded power

130 hp

Recorded weight

4529 kg

Transmissions

24-speed two-speed power shift

Production years

2003-2005

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew Holland (a part of CNH)Reference

Utility tractorReference

Built in Basildon, EnglandReference

Two- or four-wheel driveReference

Differential lockelectro-hydraulic rearReference

Power steeringReference

Hydraulic wet disc brakesReference

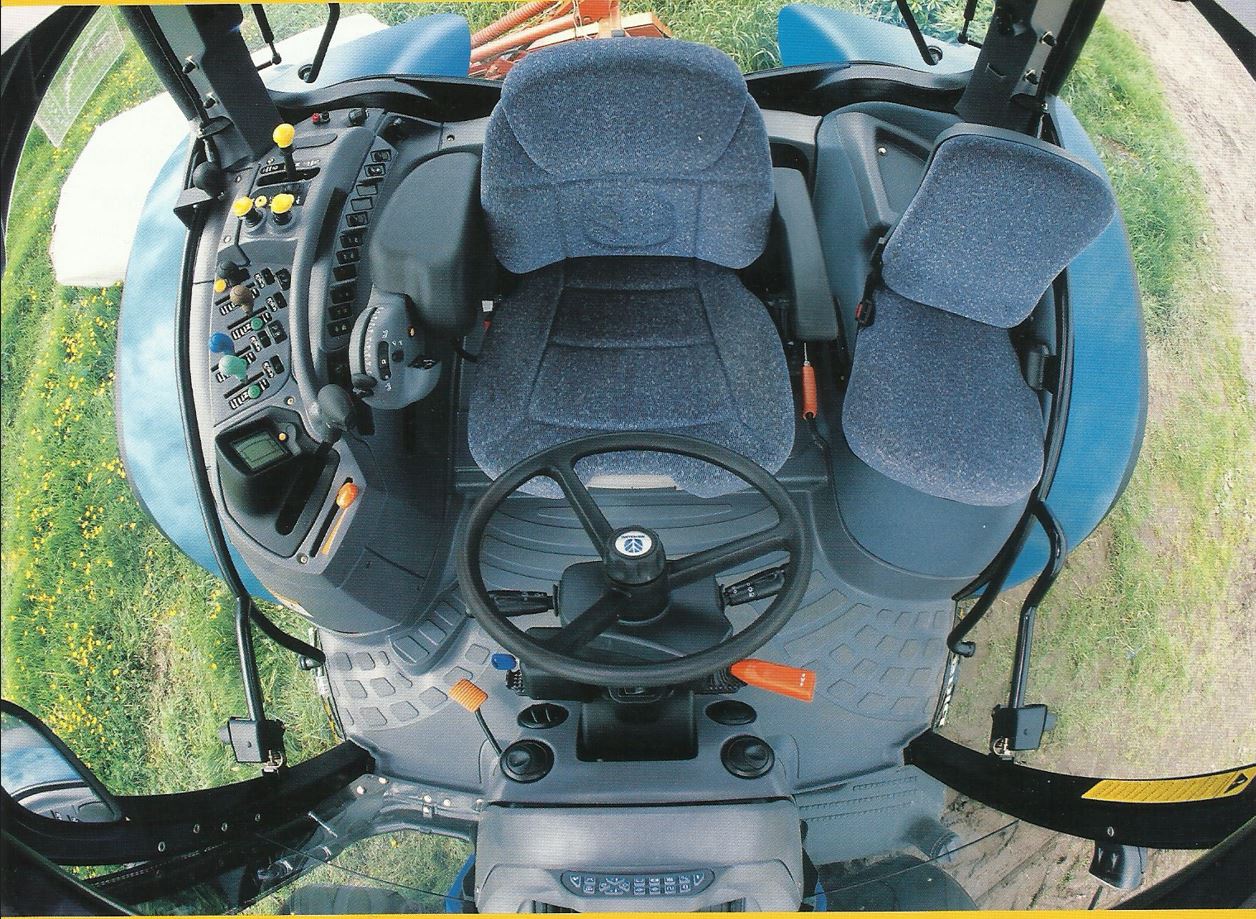

Two-post folding ROPS. Cab available with air-conditioning.Reference

Engine

Iveco 6.7L 6-cyl dieselReference

Fuel tank254.0 LReference

Engine (gross)96.9 kWReference

Iveco NEF F4DReference

turbocharged intercooled dieselReference

6-cylinder 12-valveReference

liquid-cooled inlineReference

Displacement6.7 LReference

Bore/Stroke104 x 132 mmReference

Power (gross)96.9 kWReference

Fuel systemmechanical fuel injectionReference

Air cleanerdual element dryReference

Pre-heatinggrid heaterReference

Compression17.5:1Reference

Rated RPM2200Reference

Idle RPM850-2400Reference

Torque583.1 NmReference

Torque RPM1400Reference

Firing order1-5-3-6-2-4Reference

StarterelectricReference

Starter volts12Reference

Oil capacity15.0 LReference

ROPS Coolant capacity23.0 LReference

Cab Coolant capacity25.0 LReference

Transmission

24-speed two-speed power shiftReference

16-speed four-speed power shiftReference

TransmissionDual CommandReference

Typetwo-speed power shiftReference

Gears24 forward and reverseReference

Clutchelectro-hydraulic wet discReference

Oil capacity65.5 LReference

Four gears in three ranges with shuttle lever and an additional powershift button on the gear lever. Tractor may be shifted on the move, using the clutch, between gears, high or medium range, and forward-reverse shuttle. Tractor must be stopped to enter low range.Reference

TransmissionElectro CommandReference

Typefour-speed power shiftReference

Gears16 forward and reverseReference

Oil capacity62.0 LReference

Four gears in four ranges. Push-button shifting between gears. Clutchless shifting between ranges A-B and ranges C-D. Computer-controlled Autoshift.Reference

PTO & Hydraulics

PTO (claimed)82.0 kWReference

Typeopen centerReference

Pressure190.0 barReference

Rear valves2 to 4Reference

Mid valves2Reference

Pump flow62.8 lpmReference

Total flow102.6 lpmReference

Steering flow39.7 lpmReference

Rear TypeIIReference

Rear PTOindependentReference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@1969Reference

Engine RPM540E@1546Reference

Engine RPM1000@2120Reference

Dimensions

2WD Wheelbase265 cmReference

4WD Wheelbase265 cmReference

Weight9986 to 11265 poundsReference

Front tire10.00-16Reference

2WD Rear tire18.4R38Reference

2WD Standard tires (ag)Front: 10.00-16. Rear: 18.4R38Reference

4WD Standard tires (ag)Front: 14.9R28. Rear: 18.4R38Reference

Length453 cmReference

Width216 cmReference

2WD ROPS Weight4529 kgReference

4WD Cab Weight5109 kgReference

2WD Clearance (front axle)50 cmReference

4WD Clearance (front axle)47 cmReference

Clearance (drawbar)46 cmReference

Flange rear axleReference

Bar rear axle2489 mmReference

2WD Front tread142 to 213 cmReference

4WD Front tread140 to 210 cmReference

Rear tread142 to 202 cmReference

TS130A Serial Numbers

Location:Serial number decal on the left side of the tractor, on the lower part of the radiator support bracket.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

ROPS Charging amps70Reference

Cab Charging amps120Reference

Battery volts12Reference

New Holland TS130A Height

ROPS289 cmReference

Cab296 cmReference

Cab281 cmReference

Exhaust291 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
