Tractor · 2003Unverified

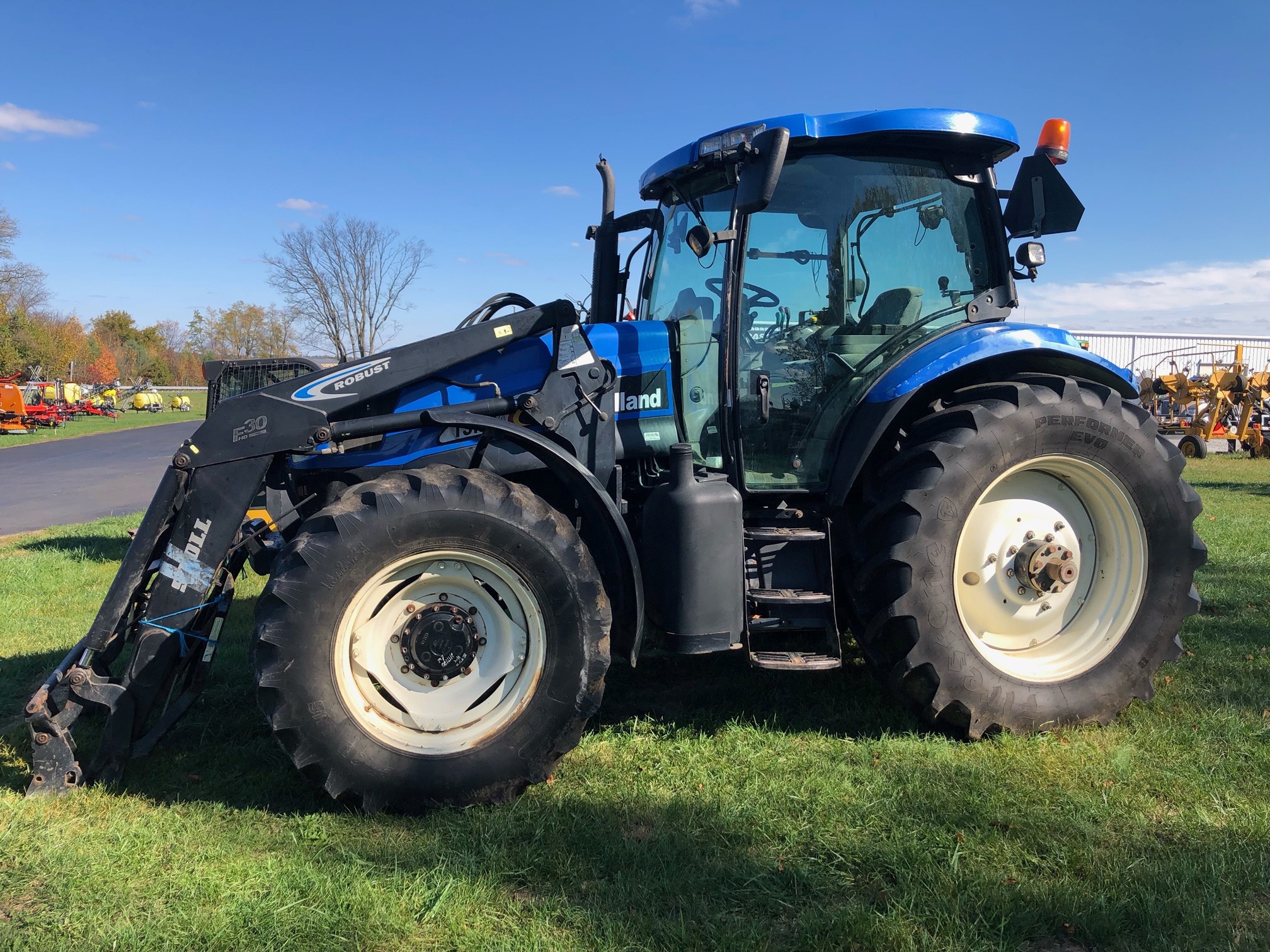

New Holland TS135A

Name: New Holland TS135A
Brand: New Holland

New Holland TS135A — TS-A Series · 135 hp. Reference specifications; pending source verification.

The New Holland TS135A tractor is a high-powered model, rated at 135 hp. It was manufactured from 2003 to 2005. The TS135A is equipped with a 6-cylinder turbocharged, intercooled diesel engine, which is liquid-cooled and paired with a four-wheel drive powershift transmission. Its operating weight is 4950 kg, making it suitable for operations of 200-800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

135 hp

Max power

95.0 kW

Weight

4950 kg

Catalogue coverage

Variants represented

Richest spec table

105 rows

Recorded power

135 hp

Recorded weight

4950 kg

Transmissions

24-speed two-speed power shift

Production years

2003-2005

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew Holland (a part of CNH)Reference

Utility tractorReference

Built in Basildon, EnglandReference

Original price$58,678 (2003 Dual Command 2WD)Reference

Original price$73,051 (2003 AutoShift 4WD)Reference

Two- or four-wheel driveReference

Final drivesplanetary inboardReference

Differential lockelectro-hydraulic rearReference

Differential lockfrontReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab standard with air-conditioning.Reference

Variants

MXU135similar CaseIH modelReference

Engine

Iveco 6.7L 6-cyl dieselReference

Fuel tank254.0 LReference

SuperSteer Fuel tank235.8 LReference

Engine (gross)100.7 kWReference

Engine (max)126.0 kWReference

Drawbar (tested)70.4 kWReference

Iveco NEF F4DReference

turbocharged intercooled dieselReference

6-cylinder 24-valveReference

liquid-cooled inlineReference

Displacement6.7 LReference

Bore/Stroke104 x 132 mmReference

Power (gross)100.7 kWReference

Maximum Power126.0 kWReference

Fuel systemelectronic common railReference

Air cleanerdual element dryReference

Pre-heatinggrid heaterReference

Rated RPM2200Reference

Torque612.1 NmReference

Torque RPM1400Reference

Firing order1-5-3-6-2-4Reference

StarterelectricReference

Starter volts12Reference

Max power95.0 kWReference

Power at rated engine speed85.4 kWReference

Max power70.4 kWReference

Transmission

24-speed two-speed power shiftReference

16-speed four-speed power shiftReference

TransmissionDual CommandReference

Typetwo-speed power shiftReference

Gears24 forward and reverseReference

Clutchelectro-hydraulic wet discReference

Four gears in three ranges with shuttle lever and an additional powershift button on the gear lever. Tractor may be shifted on the move, using the clutch, between gears, high or medium range, and forward-reverse shuttle. Tractor must be stopped to enter low range.Reference

TransmissionElectro CommandReference

Typefour-speed power shiftReference

Gears16 forward and reverseReference

Four gears in four ranges. Push-button shifting between gears. Clutchless shifting between ranges A-B and ranges C-D. Computer-controlled Autoshift.Reference

PTO & Hydraulics

PTO (claimed)85.8 kWReference

PTO (tested)95.0 kWReference

Typeclosed-center load sensingReference

Pressure210.0 barReference

Rear valves2 to 4Reference

Mid valves2Reference

Pump flow100.3 lpmReference

SCV flow94.6 lpmReference

Total flow140.0 lpmReference

Steering flow39.7 lpmReference

Rear TypeIIIN/IIReference

Rear lift (at 24"/610mm)5527 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@1969Reference

Engine RPM540E@1546Reference

Engine RPM1000@2120Reference

Power at rated PTO speed89.6 kWReference

Dimensions

2WD Wheelbase265 cmReference

Terraglide Wheelbase266 cmReference

SuperSteer Wheelbase276 cmReference

Weight4950 kgReference

Front tire11.00-16Reference

2WD Rear tire16.9R38Reference

2WD Standard tires (ag)Front: 11.00-16. Rear: 16.9R38Reference

4WD Standard tires (ag)Front: 13.6R28. Rear: 16.9R38Reference

2WD Optional tires (ag)Front: 10.00-16. Rear: 16.9R34Reference

2WD Optional tires (ag)Front: 11.00-16. Rear: 18.4R34Reference

2WD Optional tires (ag)Front: 11.00-16. Rear: 18.4R42Reference

4WD Optional tires (ag)Front: 13.6R24. Rear: 16.9R34Reference

4WD Optional tires (ag)Front: 14.9R24. Rear: 18.4R34Reference

4WD Optional tires (ag)Front: 14.9R28. Rear: 18.4R38Reference

4WD Optional tires (ag)Front: 14.9R30. Rear: 18.4R42Reference

Length453 cmReference

Width216 cmReference

Height292 cmReference

Shipping weight4950 kgReference

Max weight8700 kgReference

Flange rear axleReference

Bar rear axle2489 mmReference

New Holland TS135A attachments

front-end loaderReference

TS135A Serial Numbers

Location:Serial number decal on the left side of the tractor, on the lower part of the radiator support bracket.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps120Reference

Battery volts12Reference

Test results

Diesel 16-speed 4WDJune 2004 - August 2004, Link: OCED Tractor Test 2203 fileReference

PTO performanceReference

Fuel use27.3 l/hourReference

Drawbar performanceReference

Fuel use26.5 l/hourReference

Gear 7 used for power test.Reference

Max pull5332 kgReference

Gear 3 used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
