Tractor · 2010Unverified

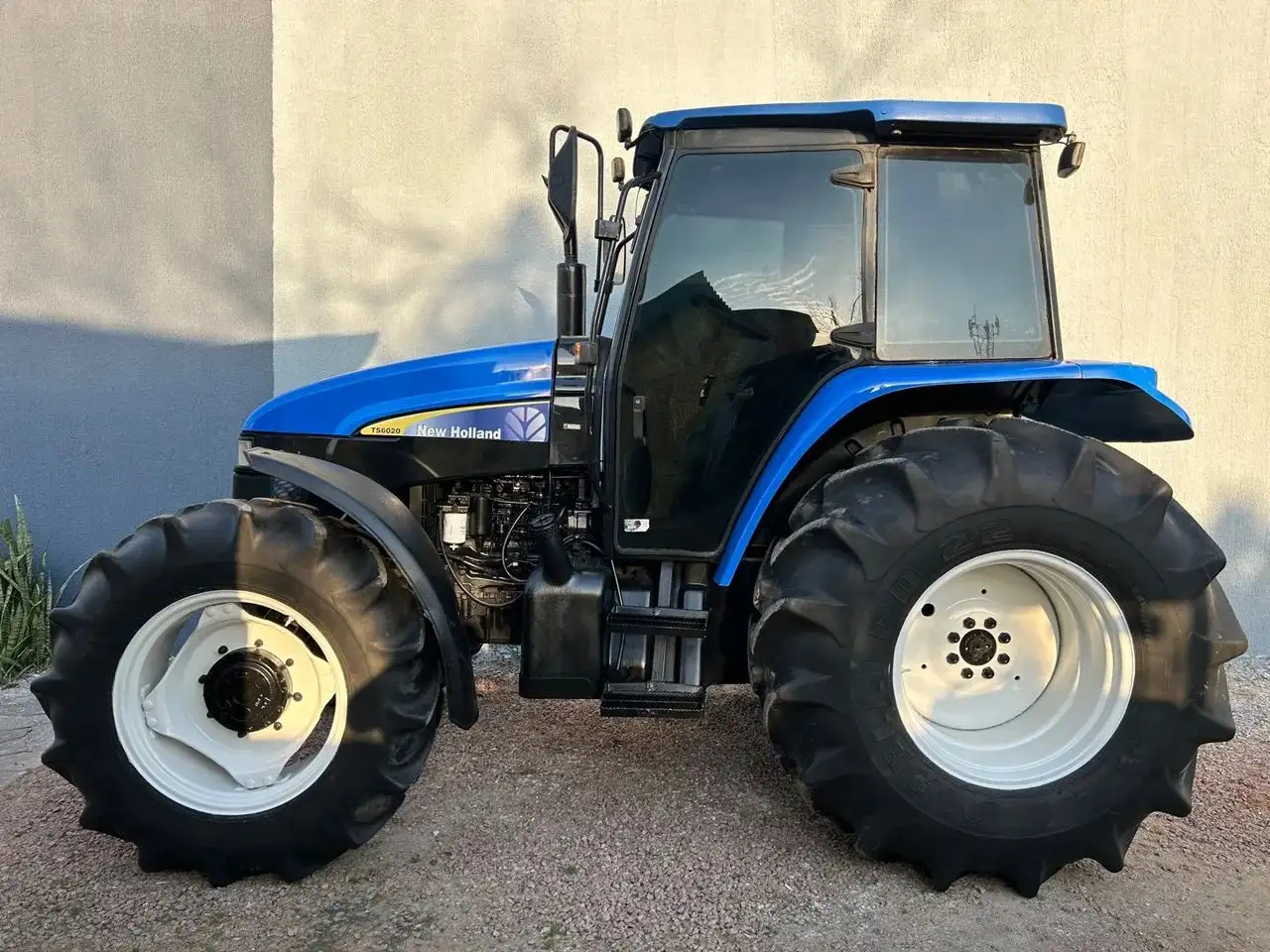

New Holland TS6020

Name: New Holland TS6020
Brand: New Holland

New Holland TS6020 — TS6000 Series · 110 hp. Reference specifications; pending source verification.

The New Holland TS6020 is a tractor rated at 110 hp, positioned in the middle of its class for power. It was manufactured from 2010 to 2012, featuring a 4-cylinder turbocharged intercooled diesel liquid-cooled engine. The tractor is equipped with mechanical front-wheel drive and a hydrostatic transmission, with a listed weight of 7617 to 9088 pounds. It is designed for use on plots of around 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

110 hp

Max power

71.8 kW

Weight

7617 to 9088 pounds

Catalogue coverage

Variants represented

Richest spec table

111 rows

Recorded power

110 hp

Transmissions

8-speed constant mesh

Production years

2010-2012

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Row-Crop tractorReference

Original price$46,704 (2012 8-speed cab 2WD )Reference

Original price$38,549 (2012 8-speed ROPS 2WD )Reference

Original price$53,450 (2012 8-speed cab 4WD )Reference

Original price$45,295 (2012 8-speed ROPS 2WD )Reference

Drive4x2 2WDReference

Drive4x4 MFWD 4WD (optional)Reference

Steeringhydrostatic powerReference

Wet disc brakesReference

Two-post foldable ROPS. Optional cab with air-conditioning.Reference

Engine

FPT 4.5L 4-cyl dieselReference

Fuel tank147.6 LReference

Engine (gross)82.0 kWReference

FPT NEFReference

turbocharged intercooled dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.5 LReference

Bore/Stroke104 x 132 mmReference

EmissionsTier 3Reference

Power (gross)82.0 kWReference

Fuel systemmechanical injectionReference

Air cleanerdryReference

Pre-heatinggrid heaterReference

Rated RPM2200Reference

Starter volts12Reference

Max power71.8 kWReference

Power at rated engine speed70.5 kWReference

Fuel TypeDieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,200 rpmReference

Emissions complianceTier 3Reference

Bore and stroke4.094x5.197 inchesReference

Cooling systemliquid-cooledReference

Transmission

8-speed constant meshReference

12-speed constant mesh with creeperReference

16-speedReference

24-speedReference

Typeconstant meshReference

Gears8 forward and 2 reverseReference

Clutch14-inch cerametallic dry discReference

Typeconstant mesh with creeperReference

Gears12 forward and 3 reverseReference

TransmissionDual CommandReference

Gears16 forward and 4 reverseReference

TransmissionDual Command creeperReference

Gears24 forward and 6 reverseReference

Transmission TypeGearReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)67.1 kWReference

PTO (tested)71.8 kWReference

Typeopen centerReference

Valves2Reference

Pump flow49.2 lpmReference

Pump flow83.3 lpmReference

Steering flow26.5 lpmReference

Rear Type2Reference

Controlmechanical top-link draft sensingReference

Rear lift (at 24"/610mm)1632 kgReference

Rear lift (at 24"/610mm)2449 kgReference

Rear lift (at 24"/610mm)3265 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Power at rated PTO speed71.4 kWReference

Dimensions

Weight7617 to 9088 poundsReference

2WD Length376 cmReference

4WD Length395 cmReference

Ground clearance46 cmReference

Front tread152 to 203 cmReference

Front tread162 to 203 cmReference

Rear tread152 to 203 cmReference

2WD ROPS Shipping3455 kgReference

2WD Cab Shipping3858 kgReference

4WD ROPS Shipping3816 kgReference

4WD Cab Shipping4122 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps120Reference

Battery CCA950Reference

Battery volts12Reference

Total cold cranking amps950 ccaReference

New Holland TS6020 Height

ROPS278 cmReference

ROPS211 cmReference

Cab284 cmReference

Exhaust285 cmReference

Test results

Diesel 8-speed 4WDDecember 6 - 13, 2010Link: Nebraska Tractor Test 1981 fileReference

PTO performanceReference

Fuel use23.1 l/hourReference

Fuel use24.6 l/hourReference

Capacities

Capacity274 ciReference

PTO

PTO Power90 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Steering & brakes

Brakeswet discReference

Steering typehydrostatic powerReference

Hydraulics

Hydraulics Typeopen centerReference

Remote Valves2 valvesReference

Steering & Implements flow7 gpm (22 gpm)Reference

Rear Hitch category (SAE designation)Category 2Reference

Rear Hitch Sensing Typemechanical top-link draft sensingReference

Dimensions & weight

Height Over Cab284.2 cmReference

Height Over ROPS278.4 cmReference

Overall Length395.7 cmReference

Overall weight3,816.1 kgReference

Wheels & tyres

Rear wheel tread range60 to 80 inchesReference

Front Wheel tread range64 to 80 inchesReference

General

Rollover protective structureTwo-post foldable ROPSReference

Operator station

Cab AvailabilityAvailableReference

Cab Air conditioning, temperature differentialOptional cab with air-conditioningReference

Seat SuspensiontrueReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
