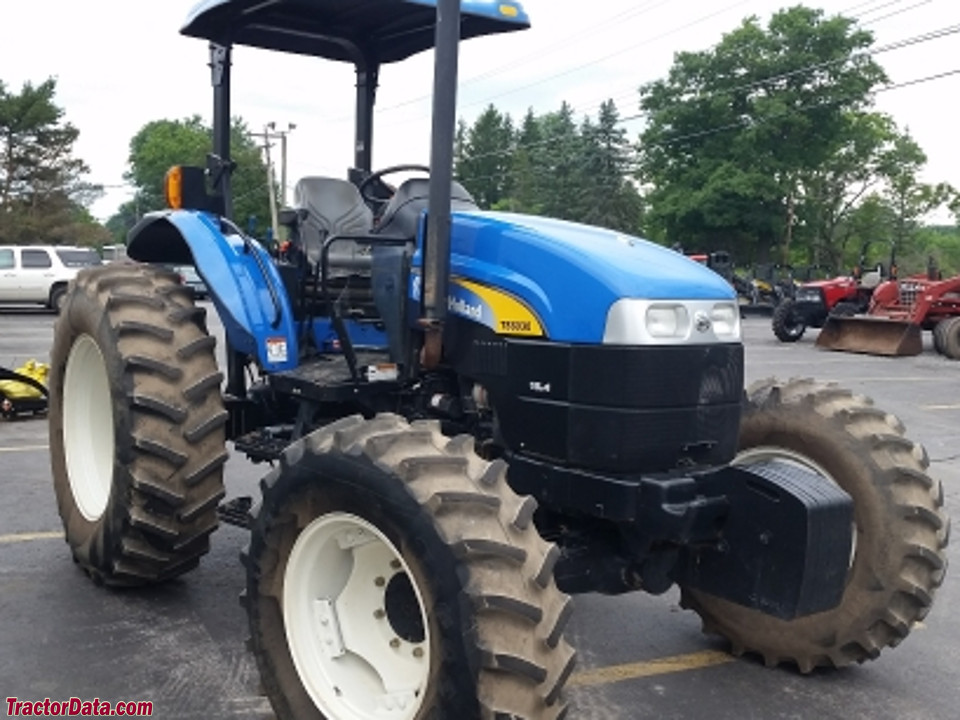

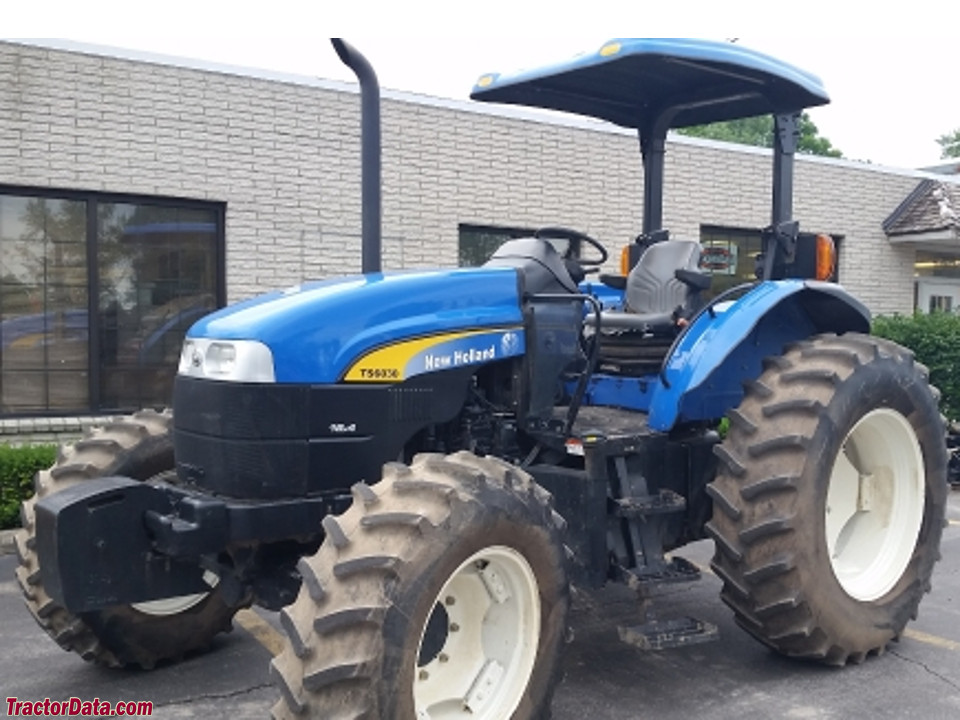

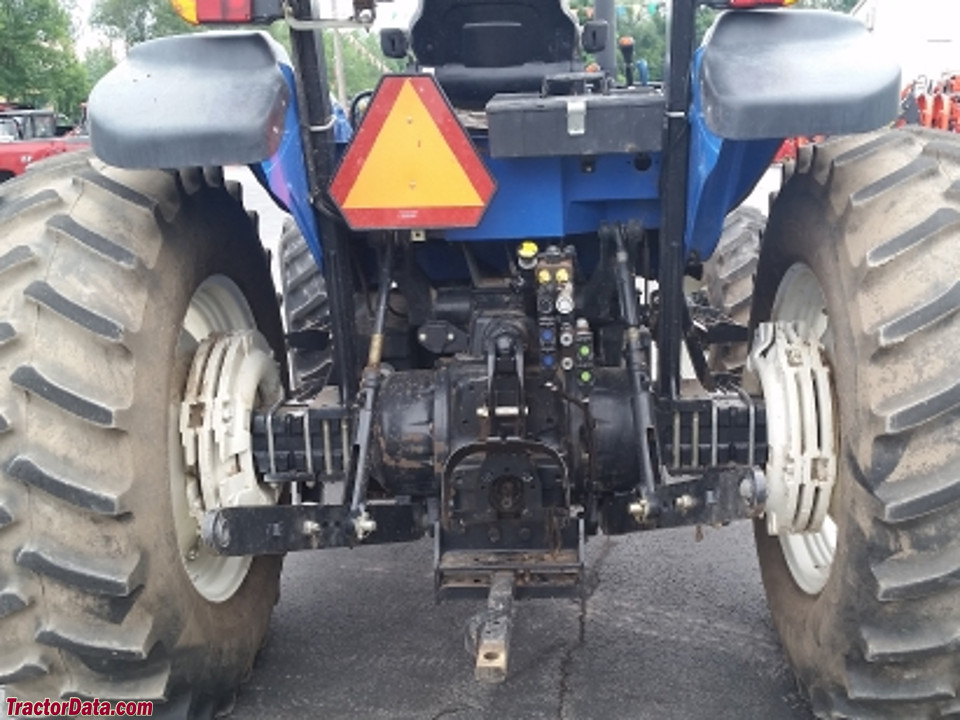

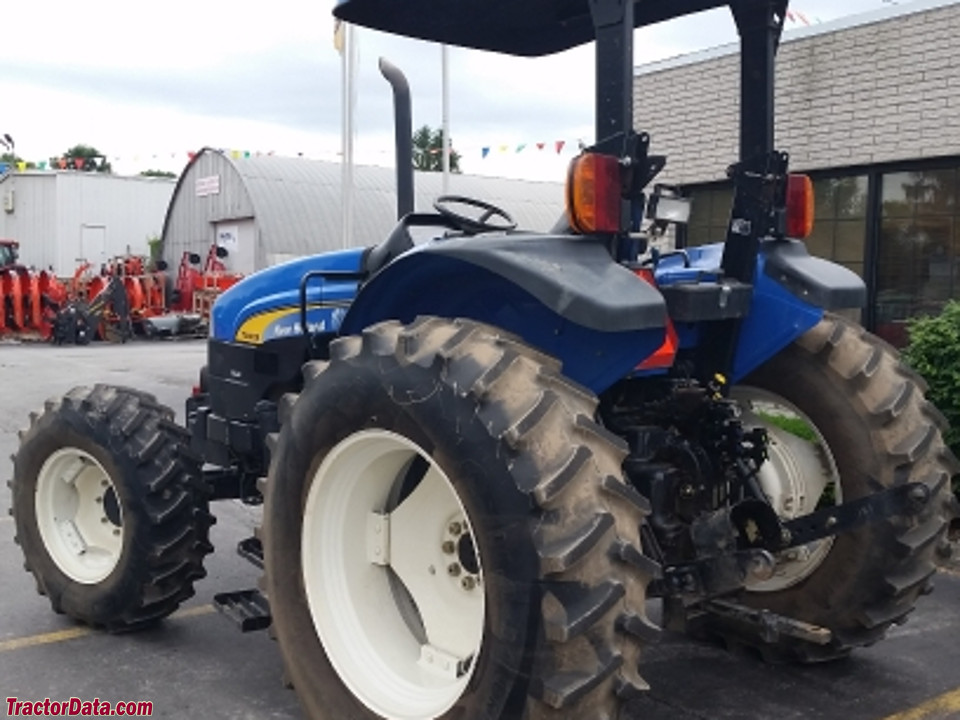

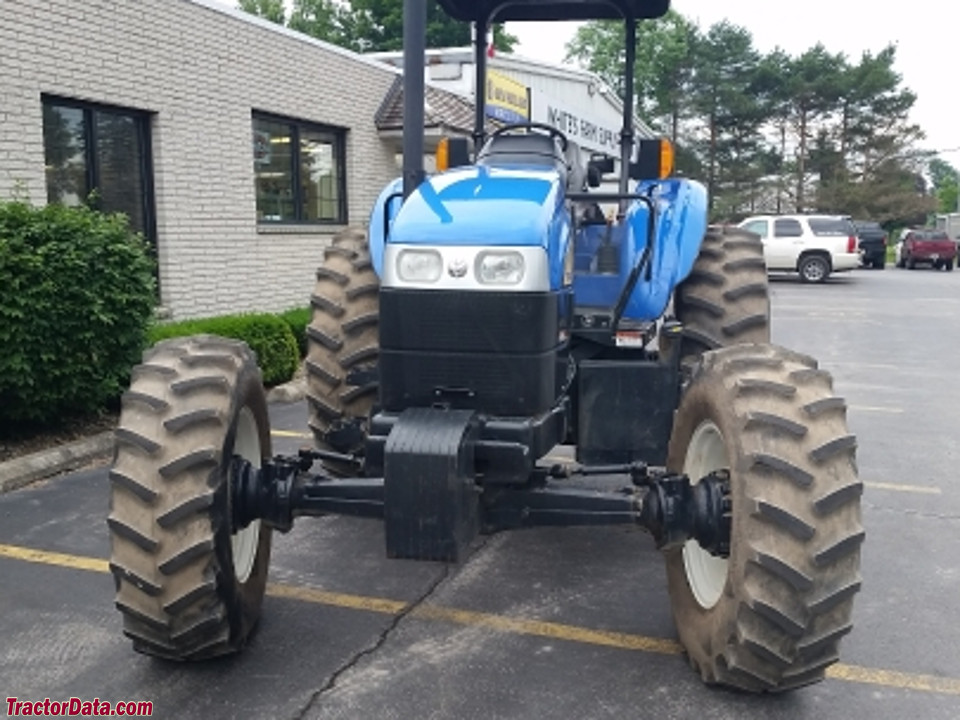

New Holland TS6030
New Holland TS6030 — TS6000 Series · 118 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
118 hp
Max power
74.2 kW
Weight
7617 to 9088 pounds
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Row-Crop tractorReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Steeringhydrostatic powerReference
Wet disc brakesReference
Two-post foldable ROPS. Optional cab with air-conditioning.Reference
Variants
TS6030row-cropReference
TS6030HChigh-cropReference
Engine
FPT 4.5L 4-cyl dieselReference
Fuel tank147.6 LReference
Engine (gross)88.0 kWReference
FPT NEFReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke104 x 132 mmReference
EmissionsTier 3Reference
Power (gross)88.0 kWReference
Fuel systemmechanical injectionReference
Air cleanerdryReference
Pre-heatinggrid heaterReference
Compression17.5:1Reference
Rated RPM2200Reference
Starter volts12Reference
Max power74.2 kWReference
Power at rated engine speed72.9 kWReference
Transmission
8-speed constant meshReference
12-speed constant mesh with creeperReference
16-speedReference
24-speedReference
Typeconstant meshReference
Gears8 forward and 2 reverseReference
Clutch14-inch cerametallic dry discReference
Typeconstant mesh with creeperReference
Gears12 forward and 3 reverseReference
TransmissionDual CommandReference
Gears16 forward and 4 reverseReference
TransmissionDual Command creeperReference
Gears24 forward and 6 reverseReference
PTO & Hydraulics
PTO (claimed)71.6 kWReference
PTO (tested)74.2 kWReference
Typeopen centerReference
Valves2Reference
Pump flow49.2 lpmReference
Pump flow83.3 lpmReference
Steering flow26.5 lpmReference
Rear Type2Reference
Controlmechanical top-link draft sensingReference
Rear lift (at 24"/610mm)1632 kgReference
Rear lift (at 24"/610mm)2449 kgReference
Rear lift (at 24"/610mm)3265 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Power at rated PTO speed74.2 kWReference
Dimensions
Weight7617 to 9088 poundsReference
2WD Length376 cmReference
4WD Length395 cmReference
Ground clearance46 cmReference
Front tread152 to 203 cmReference
Front tread162 to 203 cmReference
Rear tread152 to 203 cmReference
2WD ROPS Shipping3455 kgReference
2WD Cab Shipping3858 kgReference
4WD ROPS Shipping3816 kgReference
4WD Cab Shipping4122 kgReference
4WD ROPS Operating3946 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Battery CCA950Reference
Battery volts12Reference
New Holland TS6030 Height
ROPS278 cmReference
ROPS211 cmReference
Cab284 cmReference
Exhaust285 cmReference
Test results
Diesel 8-speed 4WDDecember 7 - July 13, 2010Link: Nebraska Tractor Test 1982 fileReference
PTO performanceReference
Fuel use23.5 l/hourReference
Fuel use25.7 l/hourReference
Fuel use24.2 l/hourReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
