Tractor · 2010Unverified

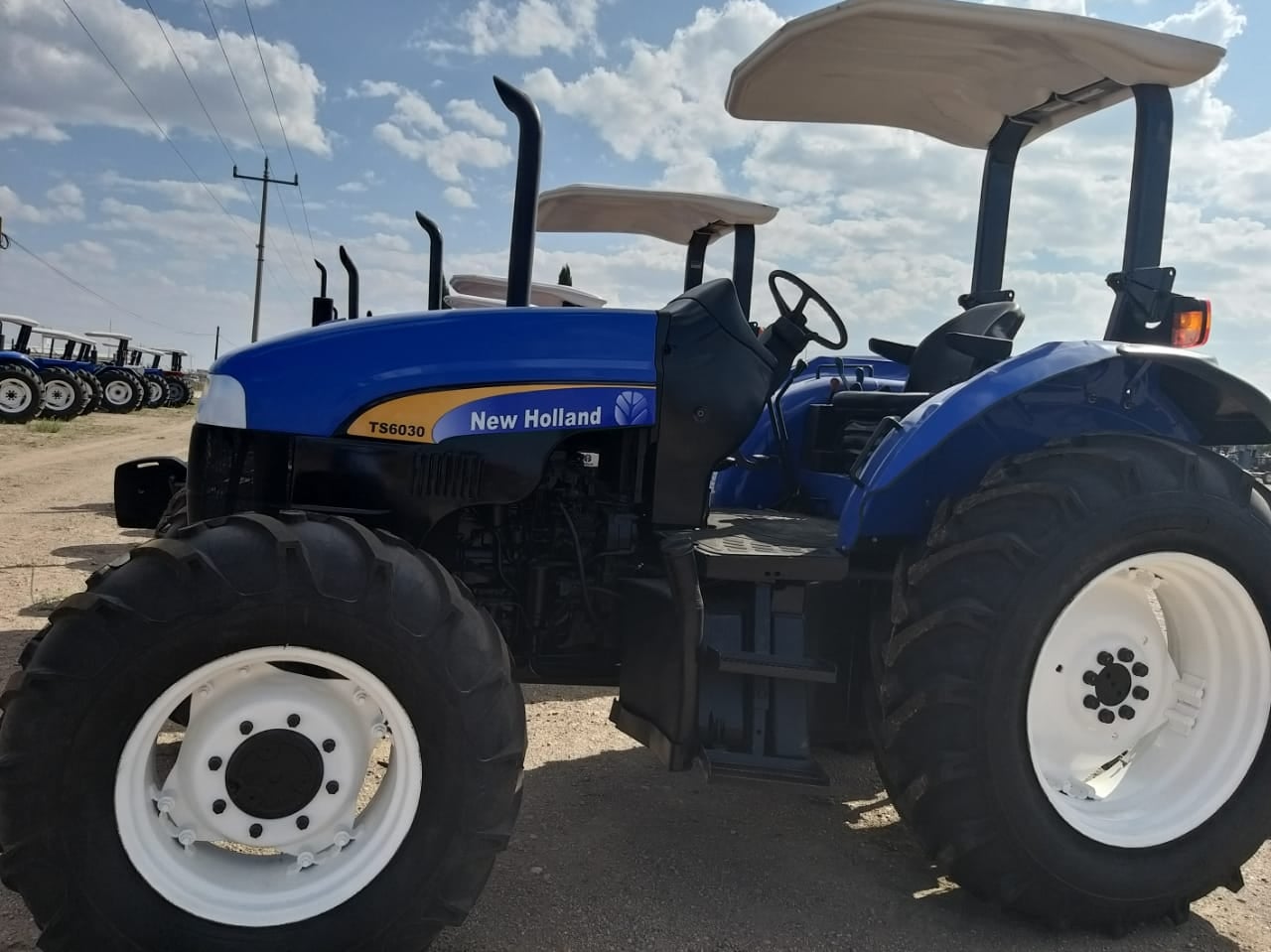

New Holland TS6030 High-Clearance

Name: New Holland TS6030 High-Clearance
Brand: New Holland

New Holland TS6030 High-Clearance — TS6000 Series · 118 hp. Reference specifications; pending source verification.

The New Holland TS6030 High-Clearance is a tractor model with a rated power output of 118 hp, positioned in the mid-range of its class. This model was manufactured from 2010 to 2012. The tractor features a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with four-wheel drive and a hydrostatic transmission. Its listed operating weight is 3670 kg, suitable for operations of up to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

118 hp

Weight

3670 kg

Catalogue coverage

Variants represented

Richest spec table

57 rows

Recorded power

118 hp

Recorded weight

3670 kg

Transmissions

12-speed constant mesh with creeper

Production years

2010-2012

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

High-Clearance tractorReference

Original price$55,665 (2012 16-speed ROPS )Reference

Original price$63,583 (2012 24-speed ROPS )Reference

Four-wheel driveReference

Steeringhydrostatic powerReference

Variants

TS6030row-cropReference

TS6030HChigh-cropReference

Engine

4.5L 4-cyl dieselReference

Fuel tank147.6 LReference

Engine (gross)88.0 kWReference

FPTReference

turbocharged intercooled dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.5 LReference

Bore/Stroke104 x 132 mmReference

EmissionsTier 3Reference

Power (gross)88.0 kWReference

Rated RPM2200Reference

Starter volts12Reference

Transmission

12-speed constant mesh with creeperReference

16-speedReference

24-speedReference

Typeconstant mesh with creeperReference

Gears12 forward and 3 reverseReference

TransmissionDual CommandReference

Gears16 forward and 4 reverseReference

TransmissionDual Command creeperReference

Gears24 forward and 6 reverseReference

PTO & Hydraulics

PTO (claimed)71.6 kWReference

Typeopen centerReference

Valves2Reference

Pump flow49.2 lpmReference

Pump flow83.3 lpmReference

Steering flow26.5 lpmReference

Rear Type2Reference

Rear lift (at 24"/610mm)1632 kgReference

Rear lift (at 24"/610mm)2449 kgReference

Rear lift (at 24"/610mm)3265 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Dimensions

Weight3670 kgReference

Length408 cmReference

Shipping weight3670 kgReference

Clearance (front axle)64 cmReference

Clearance (drawbar)76 cmReference

Front tread182 to 213 cmReference

Rear tread182 to 213 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps120Reference

Battery CCA950Reference

Battery volts12Reference

New Holland TS6030 High-Clearance Height

ROPS306 cmReference

ROPS240 cmReference

Exhaust313 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
