Tractor · 2012Unverified

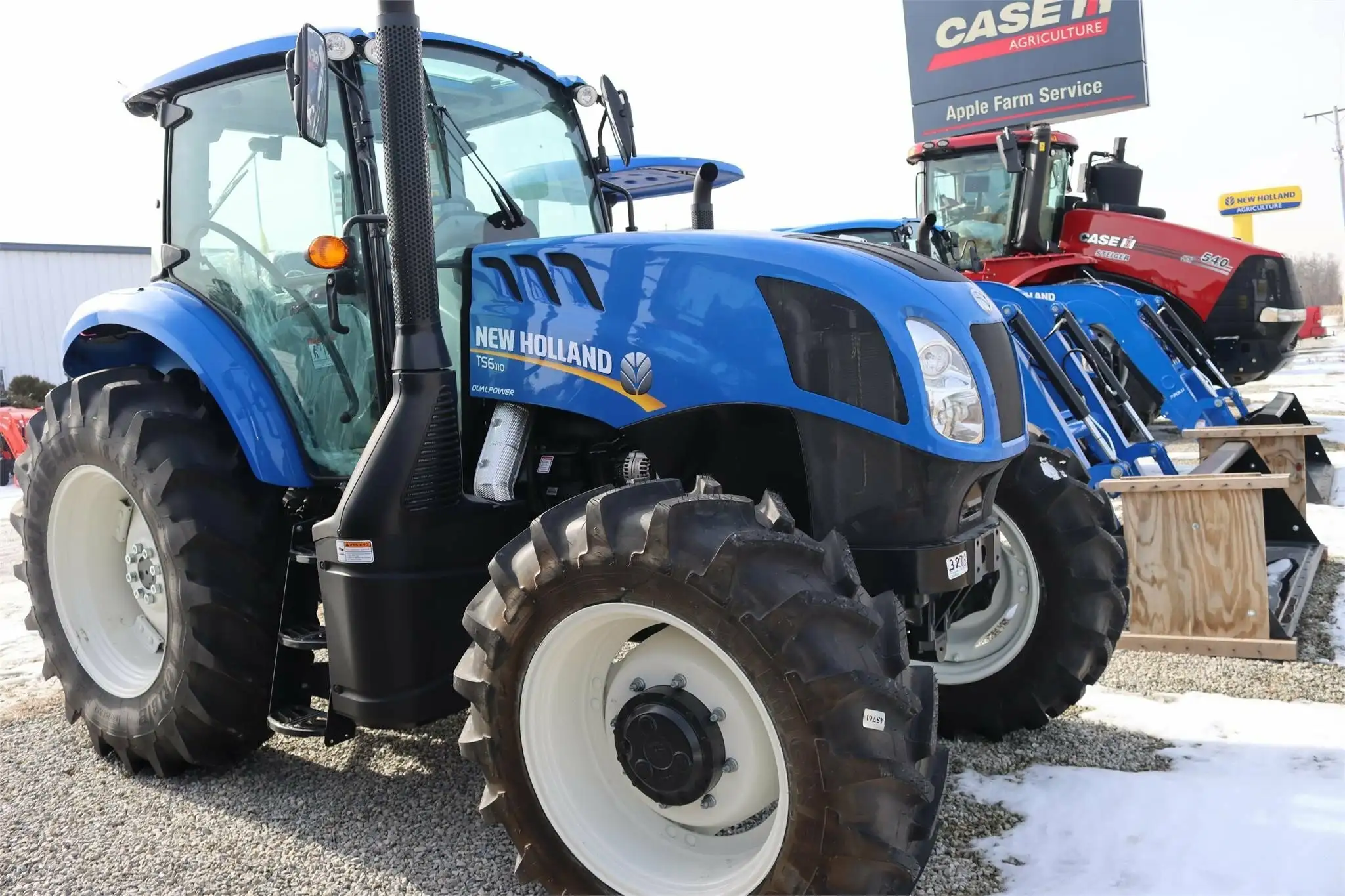

New Holland TS6.110

Name: New Holland TS6.110
Brand: New Holland

New Holland TS6.110 — TS6 Series · 110 hp. Reference specifications; pending source verification.

The New Holland TS6.110 is a tractor with a rated output of 110 hp, situated within its class for power. It was produced in 2012 and features a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, coupled with a four-wheel drive system and an 8-speed gearbox. The listed weight of the TS6.110 ranges from 7524 to 8847 pounds. It is designed for use in areas of around 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

110 hp

Weight

7524 to 8847 pounds

Catalogue coverage

Variants represented

Richest spec table

66 rows

Recorded power

110 hp

Transmissions

8-speed mechanical shuttle

Production years

2012-2012

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Row-Crop tractorReference

Original price$45,289 (2014 Mech Shuttle ROPS 2WD )Reference

Original price$59,539 (2014 DualPower Cab 4WD )Reference

Two- or four-wheel driveReference

Two-post foldable ROPS. Cab optional with air-conditioning.Reference

Engine

FPT 4.5L 4-cyl dieselReference

Fuel tank149.9 LReference

Engine (gross)82.0 kWReference

FPTReference

turbocharged intercooled dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.5 LReference

Bore/Stroke104 x 132 mmReference

EmissionsTier IIIReference

Power (gross)82.0 kWReference

StarterelectricReference

Starter volts12Reference

Transmission

8-speed mechanical shuttleReference

8-speed power shuttleReference

16-speedReference

Typemechanical shuttleReference

Gears8 forward and reverseReference

Clutchdry discReference

Typepower shuttleReference

Clutchwet discReference

TransmissionDualPowerReference

Gears16 forward and 8 reverseReference

PTO & Hydraulics

PTO (claimed)67.1 kWReference

Rear valves2 to 4Reference

Pump flow49.2 lpmReference

Pump flow83.3 lpmReference

Steering flow34.1 lpmReference

Rear TypeIIReference

Controltop link draft sensingReference

Rear lift (at 24"/610mm)1632 kgReference

Rear lift (at 24"/610mm)2449 kgReference

Rear lift (at 24"/610mm)3265 kgReference

Rear PTOindependentReference

Clutchwet discReference

Rear PTO Type540/1000Reference

Dimensions

Weight7524 to 8847 poundsReference

Length421 cmReference

Length411 cmReference

Flange rear axleReference

Bar rear axleReference

Front tread142 to 203 cmReference

Front tread162 to 203 cmReference

Rear tread162 to 203 cmReference

Rear tread157 to 233 cmReference

Shipping3412 kgReference

Shipping3587 kgReference

Shipping3678 kgReference

Shipping4012 kgReference

New Holland TS6.110 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps120Reference

Battery CCA950Reference

Battery volts12Reference

Attachment overview

New Holland 645TL loaderReference

New Holland 835TL loaderReference

New Holland TS6.110 Height

ROPS294 cmReference

Cab281 cmReference

Exhaust294 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
