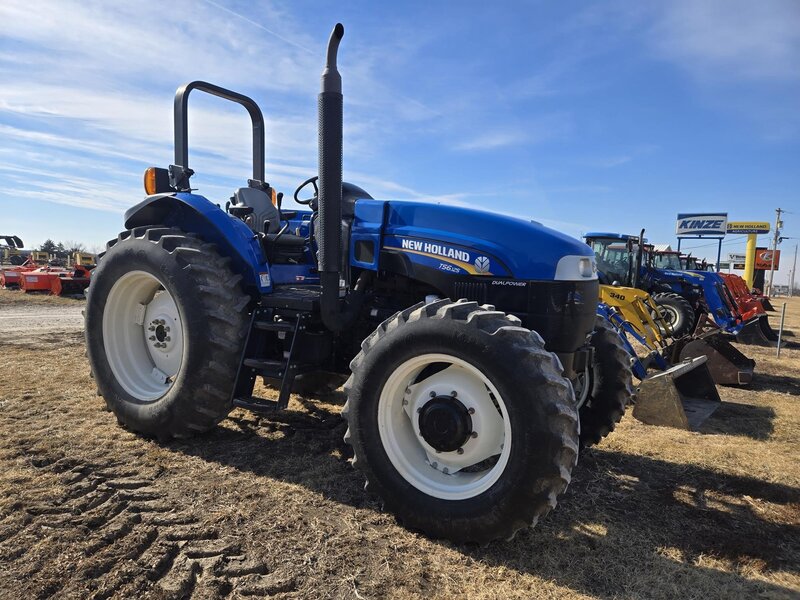

New Holland TS6.125
New Holland TS6.125 — TS6 Series · 124 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
124 hp
Weight
7524 to 8847 pounds
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Row-Crop tractorReference
Original price$53,456 (2014 Mech Shuttle ROPS 2WD )Reference
Original price$72,952 (2014 DualPower Cab 4WD )Reference
Two- or four-wheel driveReference
Two-post foldable ROPS. Cab optional with air-conditioning.Reference
Engine
FPT 6.7L 6-cyl dieselReference
Fuel tank234.7 LReference
Engine (gross)92.5 kWReference
FPTReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.7 LReference
Bore/Stroke104 x 132 mmReference
EmissionsTier IIIReference
Power (gross)92.5 kWReference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed mechanical shuttleReference
8-speed power shuttleReference
16-speedReference
Typemechanical shuttleReference
Gears8 forward and reverseReference
Clutchdry discReference
Typepower shuttleReference
Clutchwet discReference
TransmissionDualPowerReference
Gears16 forward and 8 reverseReference
PTO & Hydraulics
PTO (claimed)78.3 kWReference
Rear valves2 to 4Reference
Pump flow49.2 lpmReference
Pump flow83.3 lpmReference
Steering flow34.1 lpmReference
Rear TypeIIReference
Controltop link draft sensingReference
Rear lift (at 24"/610mm)1632 kgReference
Rear lift (at 24"/610mm)2449 kgReference
Rear lift (at 24"/610mm)3265 kgReference
Rear PTOindependentReference
Clutchwet discReference
Rear PTO Type540/1000Reference
Dimensions
Weight7524 to 8847 poundsReference
Flange rear axleReference
Bar rear axleReference
Front tread142 to 203 cmReference
Front tread162 to 203 cmReference
Rear tread162 to 203 cmReference
Rear tread157 to 233 cmReference
Shipping3412 kgReference
Shipping3587 kgReference
Shipping3678 kgReference
Shipping4012 kgReference
New Holland TS6.125 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Battery CCA950Reference
Battery volts12Reference
New Holland TS6.125 Height
ROPS294 cmReference
Cab281 cmReference
Exhaust294 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
