Tractor · 2012Unverified

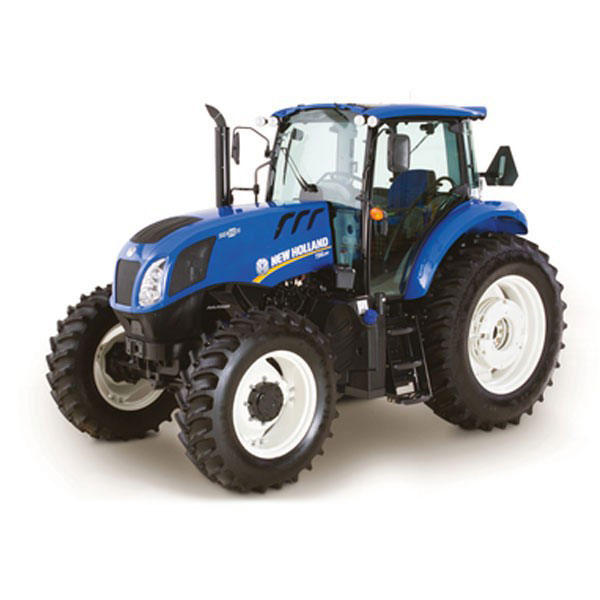

New Holland TS6.140

Name: New Holland TS6.140
Brand: New Holland

New Holland TS6.140 — TS6 Series · 139 hp. Reference specifications; pending source verification.

The New Holland TS6.140 is a tractor with a rated power output of 139 hp, positioning it among the more powerful models in its class. Manufactured in 2012, this tractor is equipped with a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, which drives the four-wheel drive system through an 8-speed gearbox. The TS6.140 has a listed weight of 7524 to 8847 pounds. It is designed for use on land areas of approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

139 hp

Weight

7524 to 8847 pounds

Catalogue coverage

Variants represented

Richest spec table

62 rows

Recorded power

139 hp

Transmissions

8-speed mechanical shuttle

Production years

2012-2012

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Row-Crop tractorReference

Original price$59,341 (2014 Mech Shuttle ROPS 2WD )Reference

Original price$78,837 (2014 DualPower Cab 4WD )Reference

Two- or four-wheel driveReference

Two-post foldable ROPS. Cab optional with air-conditioning.Reference

Engine

FPT 6.7L 6-cyl dieselReference

Fuel tank234.7 LReference

Engine (gross)103.7 kWReference

FPTReference

turbocharged intercooled dieselReference

6-cylinderReference

liquid-cooledReference

Displacement6.7 LReference

Bore/Stroke104 x 132 mmReference

EmissionsTier IIIReference

Power (gross)103.7 kWReference

StarterelectricReference

Starter volts12Reference

Transmission

8-speed mechanical shuttleReference

8-speed power shuttleReference

16-speedReference

Typemechanical shuttleReference

Gears8 forward and reverseReference

Clutchdry discReference

Typepower shuttleReference

Clutchwet discReference

TransmissionDualPowerReference

Gears16 forward and 8 reverseReference

PTO & Hydraulics

PTO (claimed)85.8 kWReference

Rear valves2 to 4Reference

Pump flow49.2 lpmReference

Pump flow83.3 lpmReference

Steering flow34.1 lpmReference

Rear TypeIIReference

Controltop link draft sensingReference

Rear lift (at 24"/610mm)1632 kgReference

Rear lift (at 24"/610mm)2449 kgReference

Rear lift (at 24"/610mm)3265 kgReference

Rear PTOindependentReference

Clutchwet discReference

Rear PTO Type540/1000Reference

Dimensions

Weight7524 to 8847 poundsReference

Flange rear axleReference

Bar rear axleReference

Front tread142 to 203 cmReference

Front tread162 to 203 cmReference

Rear tread162 to 203 cmReference

Rear tread157 to 233 cmReference

Shipping3412 kgReference

Shipping3587 kgReference

Shipping3678 kgReference

Shipping4012 kgReference

New Holland TS6.140 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps120Reference

Battery CCA950Reference

Battery volts12Reference

New Holland TS6.140 Height

ROPS294 cmReference

Cab281 cmReference

Exhaust294 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
