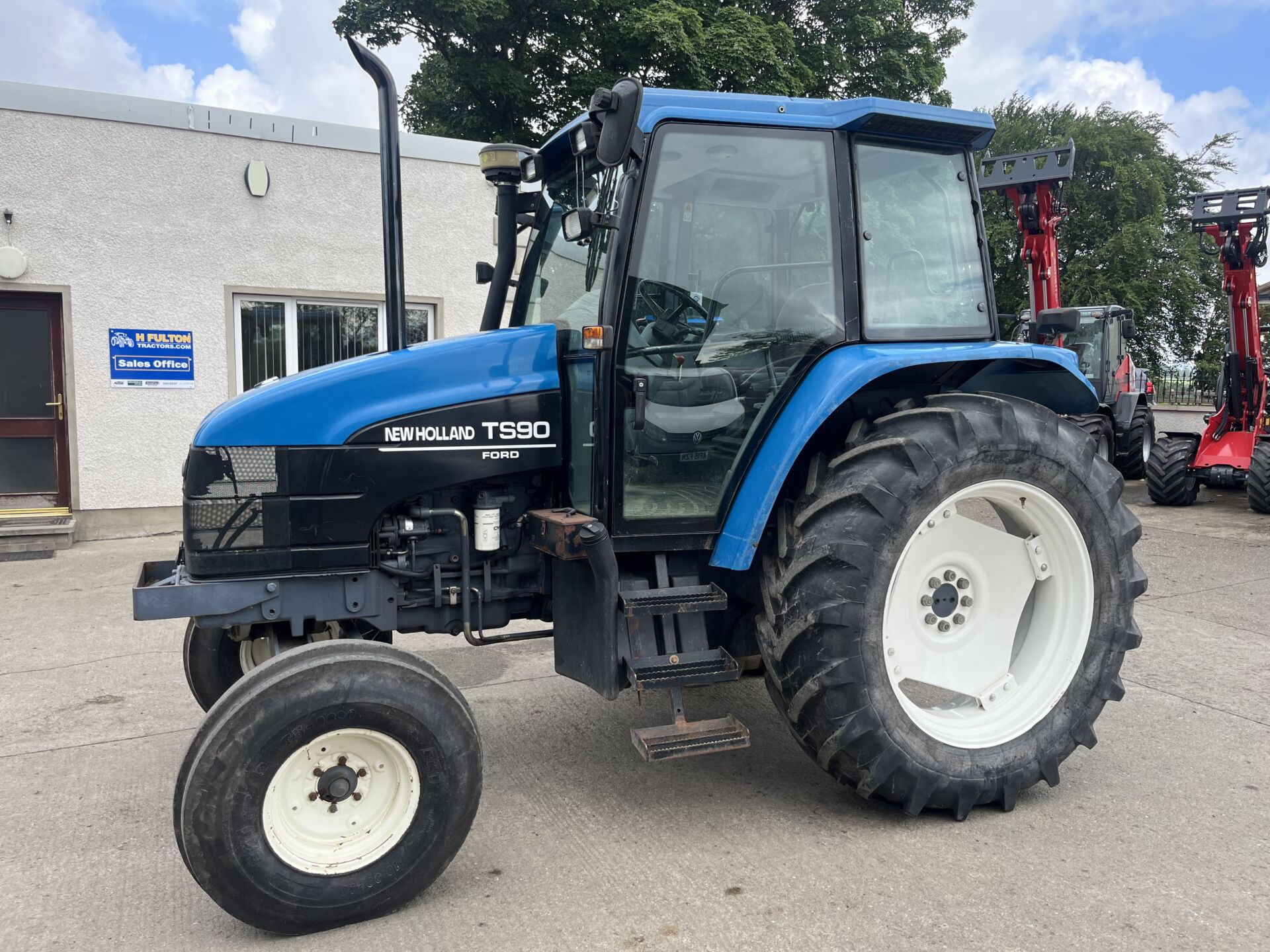

New Holland TS90
New Holland TS90 — TS Series · 77 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
77 hp
Max power
49.0 kW
Weight
7275 to 9722 pounds
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Built in Basildon, EnglandReference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Differential lockmechanical rearReference
Differential lockelectro-hydraulic front and rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Two-post folding ROPS. Cab optional with air-conditioning.Reference
Engine
New Holland 5.0L 4-cyl dieselReference
Fuel tank128.7 LReference
Fuel tank159.0 LReference
Engine67.1 kWReference
Drawbar (tested)49.0 kWReference
New Holland GenesisReference
dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement5.0 LReference
Bore/Stroke112 x 127 mmReference
Power67.1 kWReference
Compression17.5:1Reference
Rated RPM2170Reference
Idle RPM750-2320Reference
Torque337.6 NmReference
Torque RPM1400Reference
Firing order1-3-4-2Reference
StarterelectricReference
Starter volts12Reference
ROPS Coolant capacity14.0 LReference
Cab Coolant capacity15.9 LReference
Intake valve clearance0.406 mmReference
Exhaust valve clearance0.483 mmReference
Oil capacity11.4 LReference
Power at rated engine speed57.6 kWReference
Max power49.0 kWReference
Transmission
8-speed unsynchronized gearReference
16-speed two-speed power shiftReference
12-speedReference
24-speedReference
16-speed four-speed power shiftReference
TransmissionEconoShiftReference
Typeunsynchronized gearReference
Gears8 forward and 2 reverseReference
Clutchdry discReference
Four gears, plus reverse, in two ranges. Tractor must be stopped, and clutch used, before shifting gear or range. Optional creeper range.Reference
TransmissionEcono Dual CommandReference
Typetwo-speed power shiftReference
Gears16 forward and 4 reverseReference
Same as EconoShift, with an additional under-speed power shift button on the dashboard. The direct/underspeed ranges may be shifted on the move without the clutch. Four gears, plus reverse, in two ranges. Tractor must be stopped, and clutch used, before shifting gear or range. Optional creeper range.Reference
TransmissionSynchro CommandReference
Gears12 forward and reverseReference
Oil capacity56.8 LReference
Four gears provided in three ranges, plus a shuttle lever. Tractor may be shifted on the move, using the clutch, between gears, high or medium range, and forward-reverse shuttle. Tractor must be stopped to enter low range.Reference
TransmissionSynchro Dual CommandReference
Gears24 forward and reverseReference
Same as Synchro Command, with an additional under-speed power shift button on the gear lever. The direct/underspeed ranges may be shifted on the move without the clutch. A 'dump button' on the shuttle lever can be used for clutchless shifting between forward and reverse.Reference
TransmissionElectroShiftReference
Typefour-speed power shiftReference
Gears16 forward and reverseReference
Oil capacity60.6 LReference
Four gears in four ranges (A-D). Push-button power shifting between gears and clutch-free shifting between ranges A-B and C-D. Synchronized shift from ranges B to C. Power shuttle shifting.Reference
TransmissionElectroShift - creeperReference
Additional range of creeper gears can be selected using the clutch with the range in low. Creeper engaged by a toggle switch.Reference
PTO & Hydraulics
PTO (claimed)52.2 kWReference
PTO (tested)57.6 kWReference
Typeopen centerReference
Typeclosed centerReference
Pressure172.4 barReference
Pressure186.2 barReference
Valves2 to 4Reference
Pump flow36.7 lpmReference
Pump flow68.9 lpmReference
Pump flow79.5 lpmReference
Steering flow36.0 lpmReference
Steering press.144.8 barReference
Steering press.172.4 barReference
Rear TypeIIReference
Rear lift (at 24"/610mm)1905 kgReference
Rear lift (at 24"/610mm)2816 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1900Reference
Engine RPM1000@2050 (non-shiftable)Reference
Engine RPM1000@2060 (shiftable)Reference
Power at rated PTO speed56.6 kWReference
Dimensions
2WD Wheelbase233 cmReference
4WD Wheelbase236 cmReference
Weight7275 to 9722 poundsReference
Front tire9.00-16Reference
2WD Rear tire18.4-34Reference
2WD Standard tires (ag)Front: 9.00-16. Rear: 18.4-34Reference
4WD Standard tires (ag)Front: 14.9-24. Rear: 18.4-34Reference
Ag front7.50-16Reference
Ag rear16.9-30Reference
2WD Length381 cmReference
4WD Length403 cmReference
Width201 cmReference
Width195 cmReference
Ground clearance39 cmReference
2WD Front tread142 to 226 cmReference
4WD Front tread142 to 213 cmReference
Rear tread152 to 203 cmReference
2WD ROPS3299 kgReference
4WD ROPS3749 kgReference
2WD Cab3929 kgReference
4WD Cab4409 kgReference
TS90 Serial Numbers
Location:Serial number decal inside the hood on the right side of the tractor.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps55Reference
Cab Charging amps100Reference
Batteries1Reference
Batteries2Reference
Battery CCA800Reference
Battery volts12Reference
New Holland TS90 Height
ROPS288 cmReference
Cab271 cmReference
Exhaust283 cmReference
Test results
Diesel 24-speed 4WDJanuary 1999 - May 1999, Link: OCED Tractor Test 1829 fileReference
PTO performanceReference
Fuel use17.4 l/hourReference
Fuel use16.7 l/hourReference
Drawbar performanceReference
Gear 4LH used for power test.Reference
Max pull4685 kgReference
Gear 1LL used for pull test.Reference
Speeds
With 16.9-34 rear tires.Reference
16.9-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
