Tractor · 2007Unverified

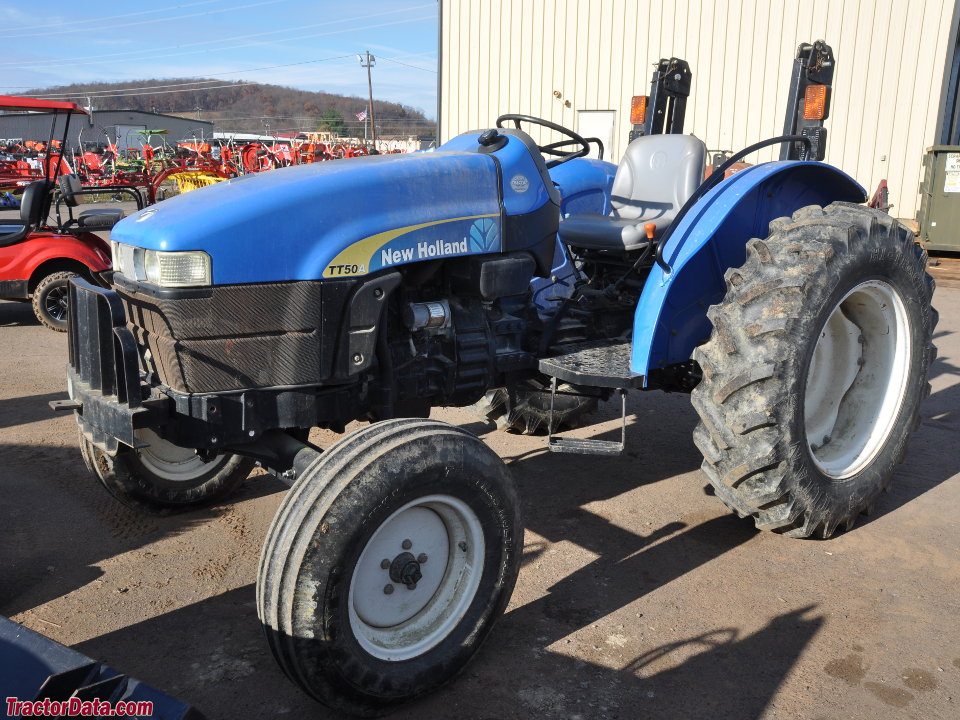

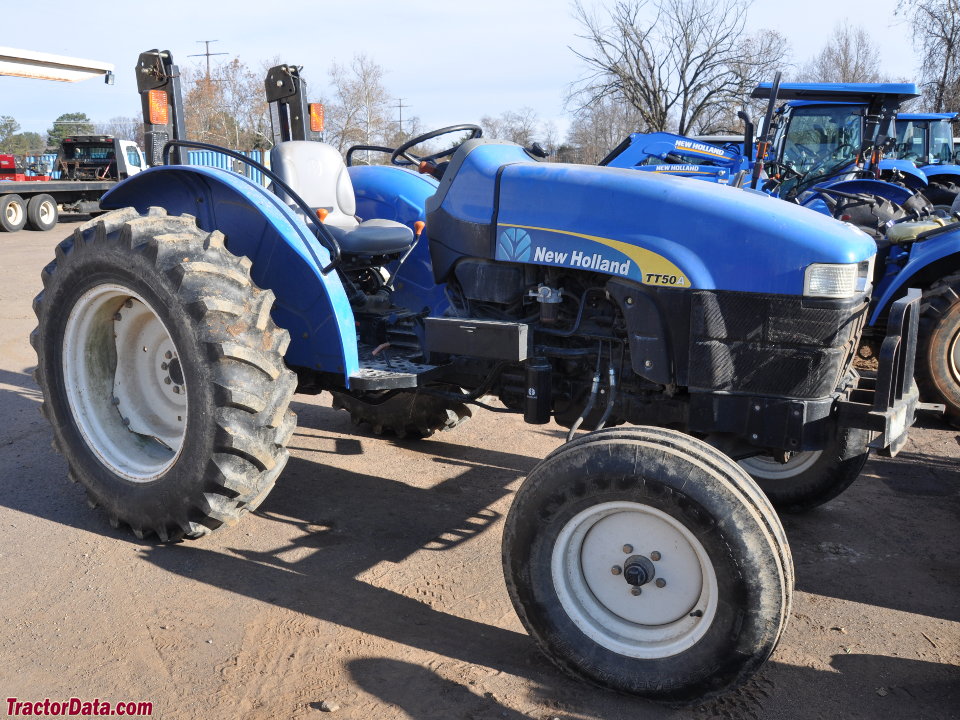

New Holland TT50A

Name: New Holland TT50A
Brand: New Holland

New Holland TT50A — TT-A Series · 48 hp. Reference specifications; pending source verification.

The New Holland TT50A is a compact tractor rated at 48 hp, making it one of the smaller options in its class. It was manufactured between 2007 and 2008. The tractor features a 4-cylinder diesel liquid-cooled engine, which is connected to an 8-speed gearbox for two-wheel drive operation. Its listed weight is 1695 kg, suitable for applications of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

48 hp

Weight

1695 kg

Catalogue coverage

Variants represented

Richest spec table

52 rows

Recorded power

48 hp

Recorded weight

1695 kg

Transmissions

8-speed gear

Production years

2007-2008

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Compact Utility tractorReference

Built in Dublin, Georgia, USAReference

Two-wheel driveReference

Final drivesbull gearReference

Differential lockmechanical rearReference

Power steeringReference

Wet disc brakesReference

Platform with two-post folding ROPS.Reference

Engine

Shibaura 2.2L 4-cyl dieselReference

Fuel tank50.7 LReference

Engine (gross)35.8 kWReference

ShibauraReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.2 LReference

Bore/Stroke84 x 100 mmReference

EmissionsTier IIReference

Power (gross)35.8 kWReference

Air cleanerdual dry elementsReference

Pre-heatingthermostartReference

Rated RPM2800Reference

Starter volts12Reference

Transmission

8-speed gearReference

TypegearReference

Gears8 forward and 2 reverseReference

Clutch279.4mm dry discReference

PTO & Hydraulics

PTO (claimed)31.3 kWReference

Typeopen centerReference

Pressure175.0 barReference

Valves0 to 2Reference

Pump flow37.1 lpmReference

Total flow65.1 lpmReference

Steering flow28.0 lpmReference

Rear TypeII/IReference

Controlposition controlReference

Rear lift (at ends)1156 kgReference

Rear PTOindependentReference

Clutchmechanical dry discReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2555Reference

Dimensions

Weight1695 kgReference

Shipping weight1695 kgReference

Flange rear axleReference

Front tread132 to 174 cmReference

New Holland TT50A attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps40Reference

Battery CCA600Reference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
