Tractor · 2007Unverified

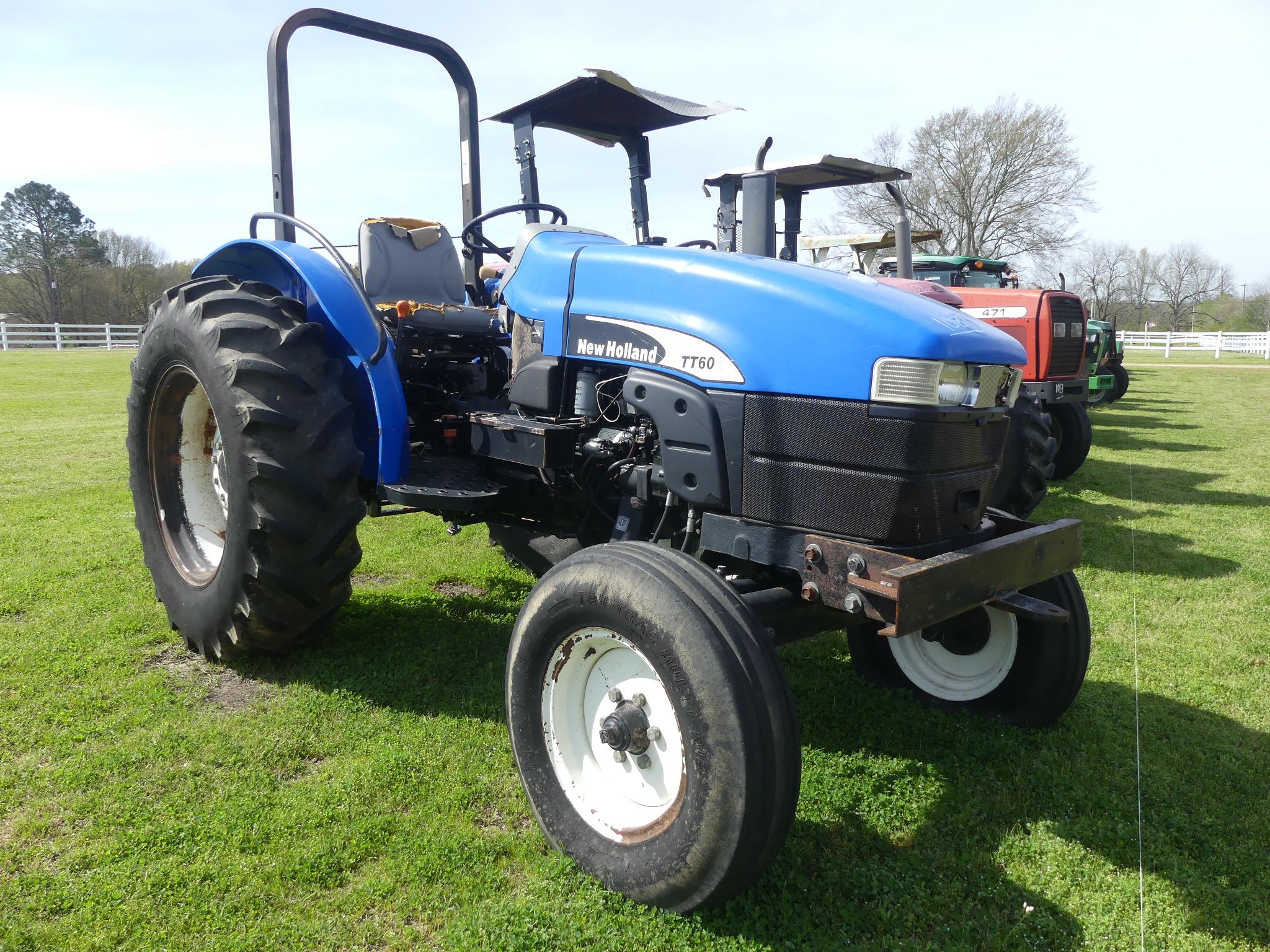

New Holland TT60A

Name: New Holland TT60A
Brand: New Holland

New Holland TT60A — TT-A Series · 56 hp. Reference specifications; pending source verification.

The New Holland TT60A is a tractor model with a rated power of 56 hp, categorising it at the lighter end of its class. Manufactured from 2007 to 2008, the model features a 3-cylinder diesel liquid-cooled engine and four-wheel drive, paired with an 8-speed gearbox. The operating weight ranges from 4540 to 4989 pounds, and it is suited for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

56 hp

Weight

4540 to 4989 pounds

Catalogue coverage

Variants represented

Richest spec table

56 rows

Recorded power

56 hp

Recorded weight

2059 kg

Transmissions

8-speed partially synchronized

Production years

2007-2008

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Compact Utility tractorReference

Built in Dublin, Georgia, USAReference

Two- or four-wheel driveReference

Final drivesbull gearReference

Differential lockmechanical rearReference

Power steeringReference

Wet disc brakesReference

Platform with two-post folding ROPS.Reference

Engine

Iveco 2.9L 3-cyl dieselReference

Fuel tank62.1 LReference

Engine (gross)41.8 kWReference

IvecoReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement2.9 LReference

Bore/Stroke104 x 115 mmReference

EmissionsTier IIReference

Power (gross)41.8 kWReference

Air cleanerdual dry elementsReference

Pre-heatingthermostartReference

Rated RPM2500Reference

Starter volts12Reference

Transmission

8-speed partially synchronizedReference

Typepartially synchronizedReference

Gears8 forward and 2 reverseReference

Clutch279.4mm dry discReference

PTO & Hydraulics

PTO (claimed)35.0 kWReference

Typeopen centerReference

Pressure190.0 barReference

Valves0 to 2Reference

Pump flow40.9 lpmReference

Total flow73.1 lpmReference

Steering flow32.2 lpmReference

Rear TypeII/IReference

Controlposition controlReference

Controltop-link draft controlReference

Rear lift (at ends)1329 kgReference

Rear PTOindependentReference

Clutchmechanical dry discReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@1967Reference

Dimensions

Weight4540 to 4989 poundsReference

2WD Shipping weight2059 kgReference

4WD Shipping weight2263 kgReference

Flange rear axleReference

2WD Front tread143 to 187 cmReference

4WD Front tread146 to 198 cmReference

New Holland TT60A attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps45Reference

Battery CCA800Reference

Battery volts12Reference

Attachment overview

New Holland 620TL loaderReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
