Tractor · 2002Unverified

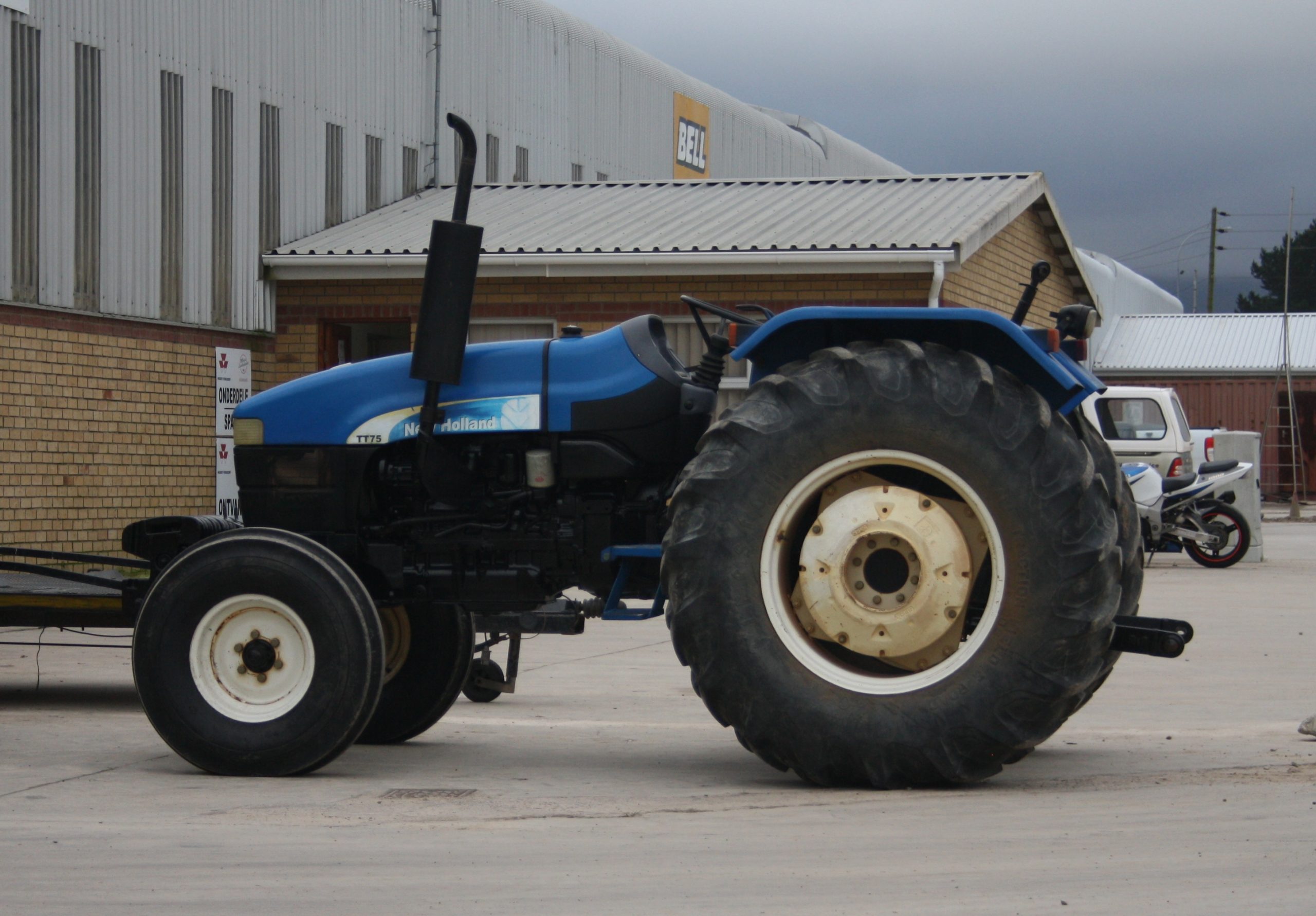

New Holland TT75
New Holland TT75 — TT Series · 59 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
59 hp
Weight
2481 kg
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Utility tractorReference
Built in IndiaReference
Two- or four-wheel driveReference
Final drivesspur gearReference
SteeringpowerReference
Wet disc brakesReference
Two-post ROPS.Reference
Engine
Iveco 3.9L 4-cyl dieselReference
Fuel tank88.9 LReference
Engine55.9 kWReference
IvecoReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke104 x 115 mmReference
Power55.9 kWReference
Fuel systemdirect injectionReference
Air cleaneroil bathReference
Air cleanerdryReference
Rated RPM2500Reference
Torque242.3 NmReference
Torque RPM1500Reference
Starter volts12Reference
Transmission
8-speedReference
Transmissionconstant meshReference
Gears8 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)44.0 kWReference
Typeopen centerReference
Pump flow32.6 lpmReference
Total flow59.0 lpmReference
Rear TypeII/IReference
Controlposition and draft controlReference
Rear lift2155 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Engine RPM540@1967Reference
Dimensions
2WD Wheelbase218 cmReference
4WD Wheelbase215 cmReference
Weight2481 kgReference
Front tire7.50-16Reference
Rear tire16.9-30Reference
Ag front7.50-16 (2WD)Reference
Ag front11.2-24 (4WD)Reference
Ag rear16.9-30Reference
Height238 cmReference
2WD Ground clearance50 cmReference
4WD Ground clearance40 cmReference
New Holland TT75 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps23Reference
Battery volts12Reference
Battery AH100Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
