Tractor · 1998Unverified

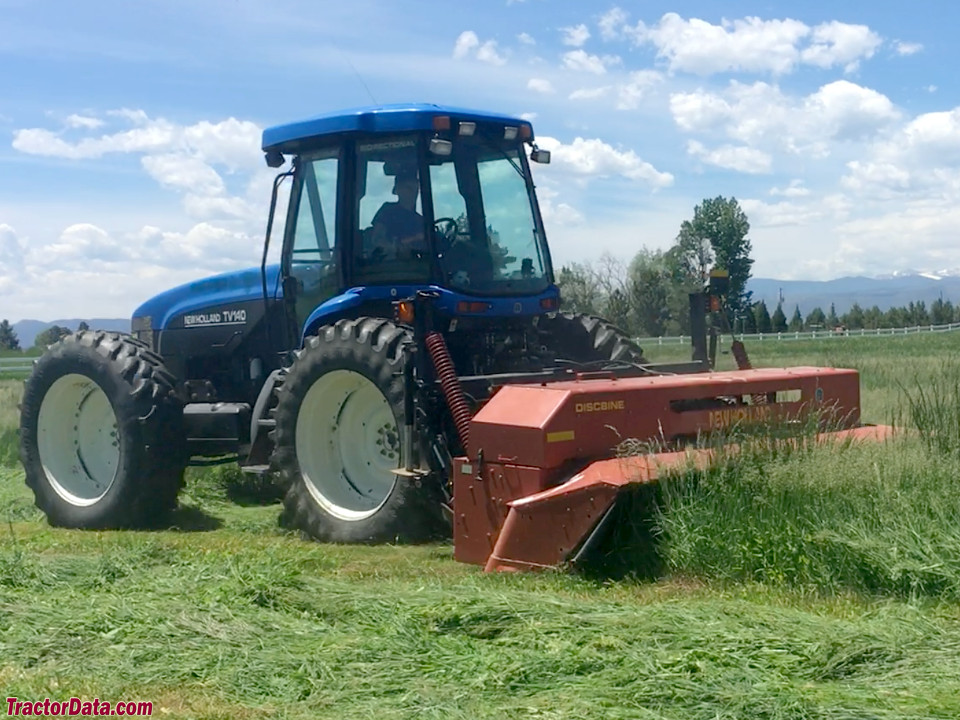

New Holland TV140
New Holland TV140 · 103 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
103 hp
Max power
83.4 kW
Weight
6674 kg
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
FactoriesWinnipeg, Manitoba, CanadaReference
FactoriesFargo, North Dakota, USAReference
Four-wheel driveReference
Final drivesplanetaryReference
Steeringhydrostatic articulatedReference
Hydraulic wet disc brakesReference
Cab with heat and A/C. Console rotates 180-degrees.Reference
Engine
New Holland 7.5L 6-cyl dieselReference
Engine104.4 kWReference
Drawbar (tested)60.6 kWReference
New HollandReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.5 LReference
Bore/Stroke112 x 127 mmReference
Power104.4 kWReference
Air cleanerdual paper elementsReference
Compression17.5:1Reference
Rated RPM2200Reference
Idle RPM700-2420Reference
StarterelectricReference
Starter volts12Reference
Oil capacity17.0 LReference
Coolant capacity24.6 LReference
Max power83.4 kWReference
Power at rated engine speed77.0 kWReference
Max power60.6 kWReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
PTO (claimed)78.3 kWReference
PTO (tested)83.4 kWReference
Hydraulic system51.1 LReference
Typeclosed center load sensingReference
Capacity51.1 LReference
Pressure206.8 barReference
Pump flow113.6 lpmReference
Rear TypeIIReference
Rear lift (at 24"/610mm)2948 kgReference
Front HitchIIReference
Front lift (at 24"/610mm)2268 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1890Reference
Engine RPM1000@2049Reference
Front PTOindependentReference
Front PTO Type540/1000 (1.375)Reference
Power at rated PTO speed81.3 kWReference
Capacities
Fuel208.2 LReference
Dimensions
Wheelbase299 cmReference
Weight6674 kgReference
Front tire16.9-28Reference
Rear tire16.9-28Reference
Ag front16.9-28Reference
Ag rear16.9-28Reference
Length443 cmReference
Height (cab)302 cmReference
Operating weight6674 kgReference
Max weight8164 kgReference
Clearance (rear axle)43 cmReference
Clearance (drawbar)32 cmReference
New Holland TV140 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps100Reference
Batteries2Reference
Battery CCA950Reference
Battery volts12Reference
Test results
Diesel hydrostatic 4WDNovember 1 - 30, 1999Link: OCED Tractor Test 1886 fileReference
PTO performanceReference
Fuel use26.9 l/hourReference
Fuel use29.1 l/hourReference
Fuel use26.1 l/hourReference
Drawbar performanceReference
Fuel use29.9 l/hourReference
Max pull4994 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
