Tractor · 2008Unverified

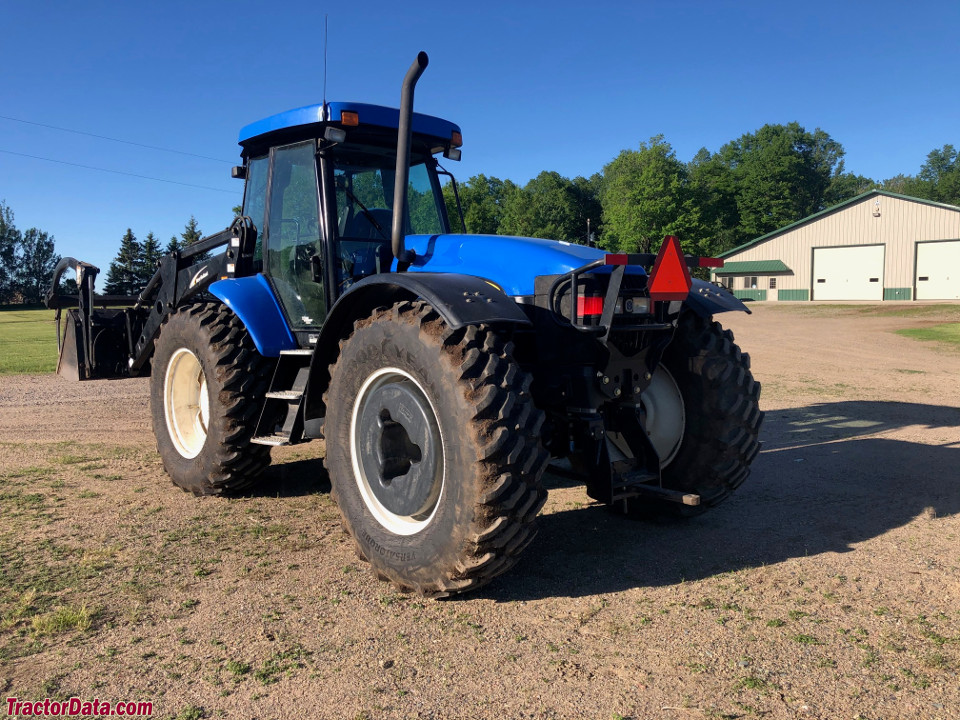

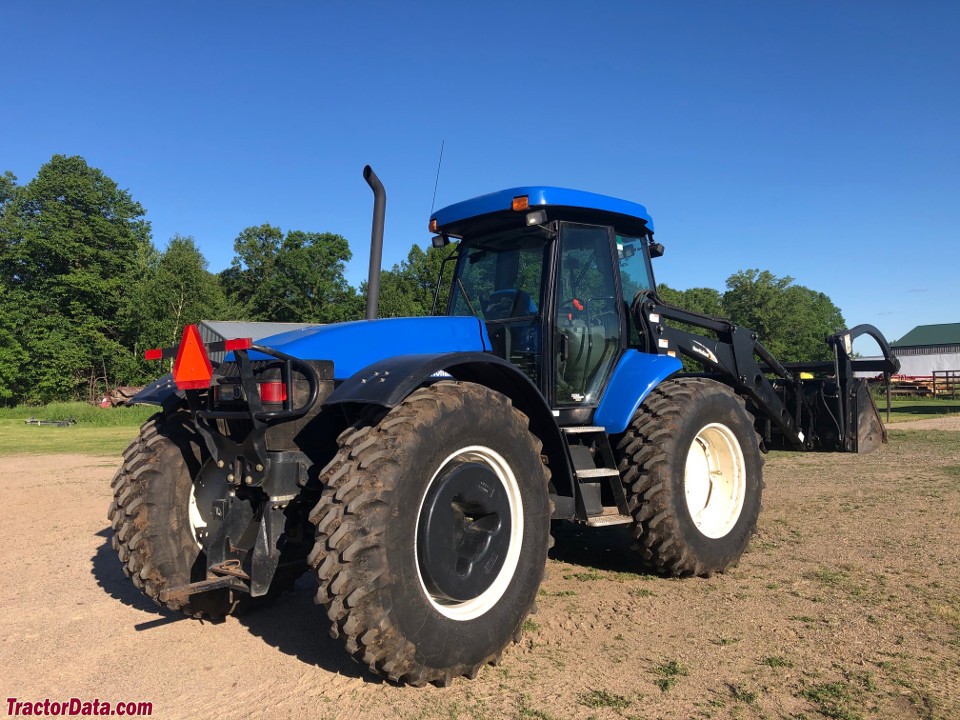

New Holland TV6070

Name: New Holland TV6070
Brand: New Holland

New Holland TV6070 · 155 hp. Reference specifications; pending source verification.

The New Holland TV6070 is a tractor model rated at approximately 155 hp, positioning it at the high end of its class in terms of power. It was produced between 2008 and 2014. The TV6070 features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, coupled with four-wheel drive and a hydrostatic transmission. Its operating weight is listed at 6896 kg, with a suitable operating area of 200-800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

155 hp

Max power

86.4 kW

Weight

6896 kg

Catalogue coverage

Variants represented

Richest spec table

115 rows

Recorded power

155 hp

Recorded weight

6896 kg

Transmissions

hydrostatic

Production years

2008-2014

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Four-wheel driveReference

Steeringhydrostatic powerReference

Hydraulic caliper disc brakesReference

Cab standard with air-conditioning.Reference

Engine

Iveco FPT 6.7L 6-cyl dieselReference

Engine (gross)115.6 kWReference

Drawbar (tested)59.8 kWReference

Iveco FPTReference

turbocharged intercooled dieselReference

6-cylinder 12-valveReference

liquid-cooledReference

Displacement6.7 LReference

Bore/Stroke104 x 132 mmReference

EmissionsTier IIIReference

Power (gross)115.6 kWReference

Air cleanerdryReference

Compression17.5:1Reference

Rated RPM2200Reference

Firing order1-5-3-6-2-4Reference

Starter volts12Reference

Oil capacity18.9 LReference

Coolant capacity27.4 LReference

Max power86.4 kWReference

Power at rated engine speed79.6 kWReference

Max power59.8 kWReference

Fuel TypeDieselReference

No of Cylinders6 cylinderReference

Rated engine speed2,200 rpmReference

Emissions complianceTier IIIReference

Bore and stroke4.094x5.197 inchesReference

Compression ratio17.5:1Reference

Cooling systemliquid-cooledReference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (8-range)Reference

Transmission TypeE-HSTReference

forward and reverse optionsinfinite F and infinite RReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)78.3 kWReference

PTO (tested)86.4 kWReference

Hydraulic system51.1 LReference

Typeclosed center load sensingReference

Capacity51.1 LReference

Rear valves3Reference

Front valves2Reference

Total flow111.7 lpmReference

Total flow132.5 lpmReference

Rear TypeIIReference

Rear lift (at 24"/610mm)2948 kgReference

Rear lift (at 24"/610mm)3946 kgReference

Front HitchIIReference

Front lift (at 24"/610mm)1814 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Front PTO Type540/1000Reference

Power at rated PTO speed84.1 kWReference

Capacities

Fuel208.2 LReference

Fuel tank208.2 LReference

Crankcase oil volume20 qtsReference

Dimensions

Wheelbase299 cmReference

Weight6896 kgReference

Front tire480/85R34Reference

Rear tire480/85R34Reference

Ag front480/85R34Reference

Ag rear480/85R34Reference

Length467 cmReference

Length544 cmReference

Width252 cmReference

Operating weight6896 kgReference

Clearance (drawbar)36 cmReference

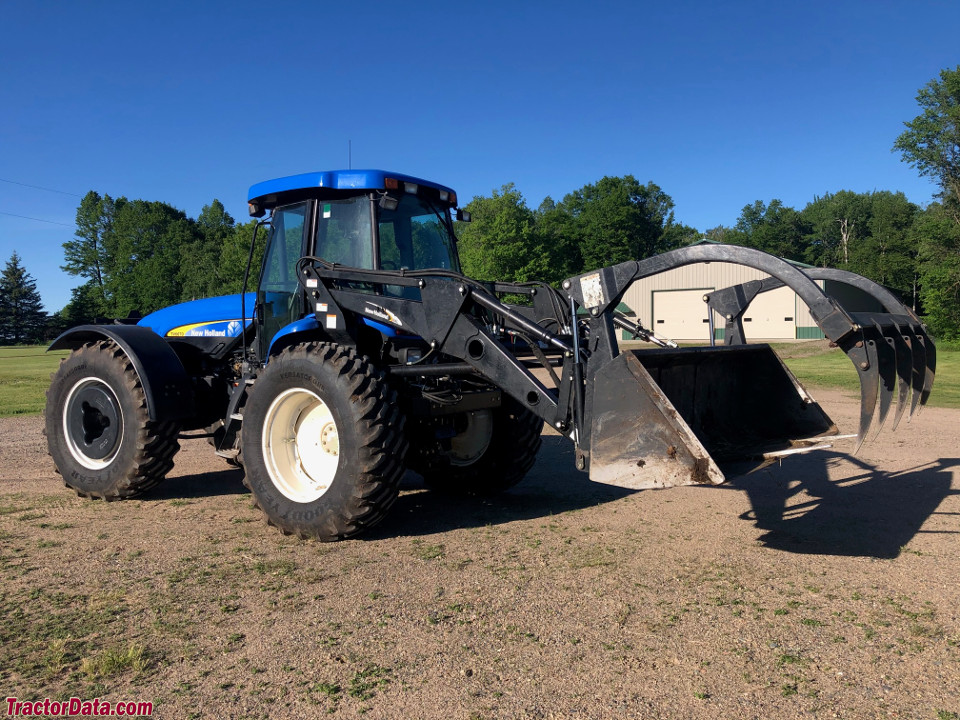

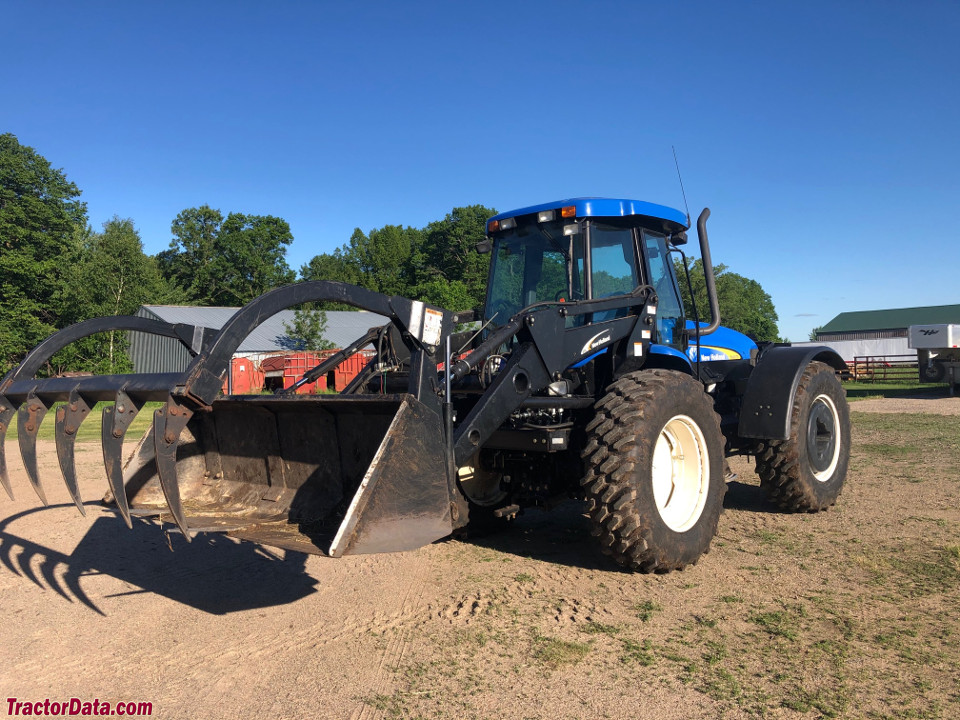

New Holland TV6070 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps120Reference

Batteries2Reference

Battery CCA950Reference

Battery volts12Reference

Battery Group31Reference

Total cold cranking amps950 ccaReference

Attachment overview

New Holland 82LB loaderReference

New Holland 84LB loaderReference

New Holland TV6070 Height

Hood205 cmReference

Cab312 cmReference

Exhaust319 cmReference

Test results

Diesel hydrostatic 4WDSeptember 4 - 10, 2008Link: OCED Tractor Test 1935 fileReference

PTO performanceReference

Fuel use30.3 l/hourReference

Fuel use32.6 l/hourReference

Fuel use31.8 l/hourReference

Drawbar performanceReference

Max pull5359 kgReference

General

Make & ModelNew HollandReference

Hydraulics

Capacity Valves12 valvesReference

Pump Rated Output (total)35 gpmReference

Hydraulics Typeclosed center load sensingReference

Remote Valves2 valvesReference

Rear Hitch category (SAE designation)Category IIReference

Front Hitch category (SAE designation)Category IIReference

Front Hitch lift capacity beyond lift points1,814.4 kgReference

PTO

PTO Power105 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Steering & brakes

Brakeshydraulic caliper discReference

Steering typehydrostatic powerReference

Dimensions & weight

Height Over Cab312.9 cmReference

Overall Length544.1 cmReference

Overall Width253 cmReference

Drawbar clearance36.3 cmReference

Overall weight6,896.9 kgReference

Wheels & tyres

Rear Wheel Type480/85R34Reference

Front Wheel Type480/85R34Reference

Operator station

Cab AvailabilityAvailableReference

Cab Air conditioning, temperature differentialCab standard with air-conditioning.Reference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
