Tractor · 2008Unverified

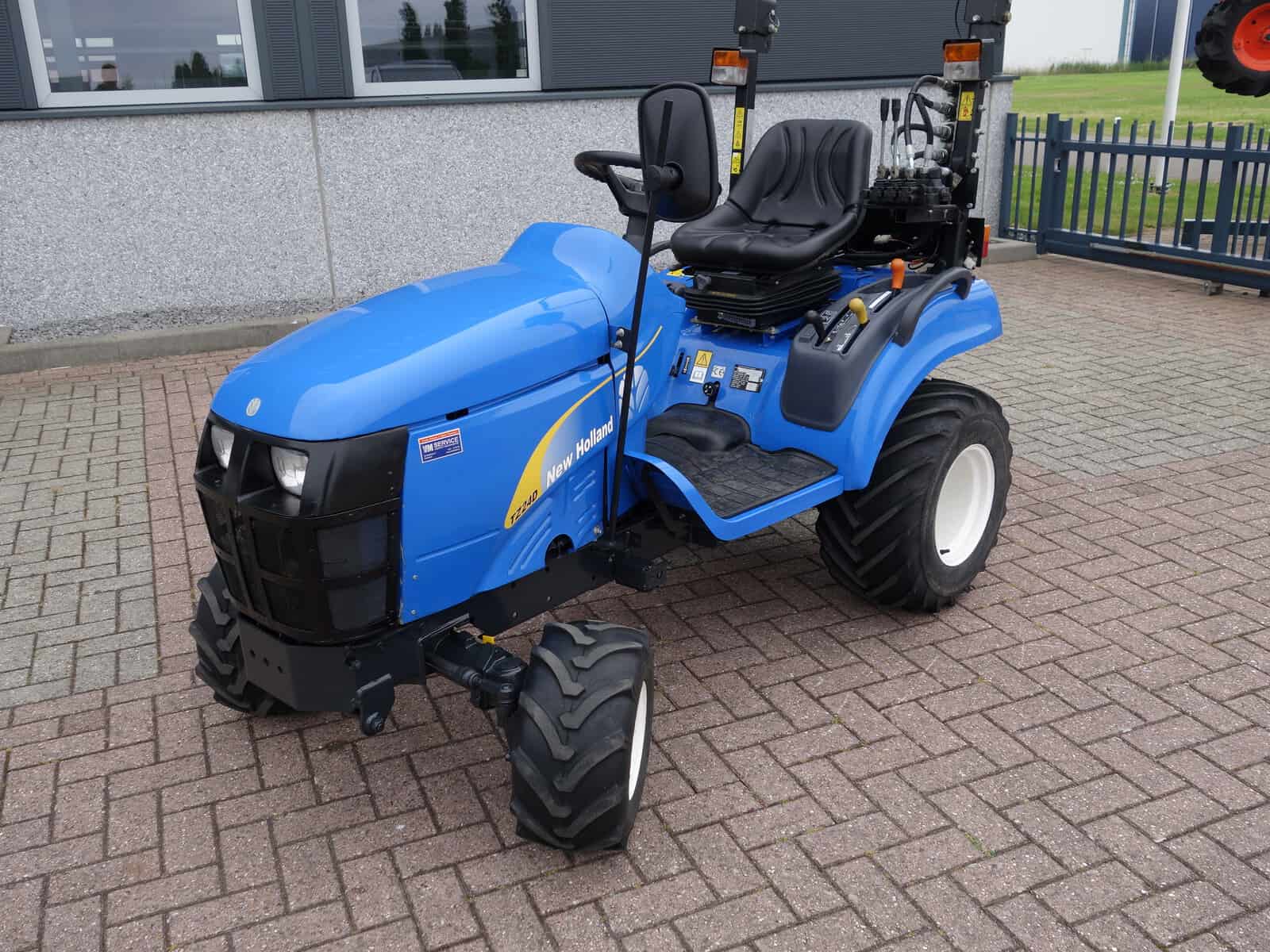

New Holland TZ21D

Name: New Holland TZ21D
Brand: New Holland

New Holland TZ21D — TZ Series · 21 hp. Reference specifications; pending source verification.

The New Holland TZ21D is a compact tractor with an output of 21 horsepower, making it suitable for smaller applications. Produced from 2008 to 2011, this model features a 3-cylinder diesel liquid-cooled engine, which powers a four-wheel drive system with a hydrostatic transmission. The listed weight of the tractor is 662 kilograms, and it is designed for use on plots of around 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

21 hp

Weight

662 kg

Catalogue coverage

Variants represented

Richest spec table

85 rows

Recorded power

21 hp

Recorded weight

662 kg

Transmissions

hydrostatic

Production years

2008-2011

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Sub-Compact Utility tractorReference

Four-wheel driveReference

Steeringhydrostatic powerReference

Wet disc brakesReference

Two-post foldable ROPS.Reference

Engine

Shibaura 1.0L 3-cyl dieselReference

Fuel tank29.5 LReference

Engine (gross)15.7 kWReference

ShibauraReference

dieselReference

3-cylinder 6-valveReference

liquid-cooledReference

Displacement1.0 LReference

Bore/Stroke75 x 72 mmReference

EmissionsStage 3Reference

Rated Power (gross)15.7 kWReference

Rated RPM3000Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders3 cylinderReference

Rated engine speed3,000 RPMReference

Emissions complianceStage 3Reference

Bore and stroke2.953x2.835 inchesReference

Cooling systemliquid-cooledReference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

forward and reverse optionsinfinite (2-range) F and infinite RReference

Wheel Drive4WDReference

PTO & Hydraulics

Typeopen centerReference

Pressure130.0 barReference

Rear valves1Reference

Mid valves0 or 2Reference

Pump flow14.2 lpmReference

Rear TypeIReference

Rear lift (at ends)714 kgReference

Rear PTO Type540Reference

Engine RPM540@2992Reference

Mid PTOoptionalReference

Mid PTO Type2000Reference

Engine RPM2000@2745Reference

Dimensions

Wheelbase139 cmReference

Weight662 kgReference

Front tire18x8.5-8Reference

Rear tire26x12-12Reference

Ag front18x8.5-8Reference

Ag rear26x12-12Reference

Lawn/turf front18x8.5-8Reference

Lawn/turf rear26x12-12Reference

Length204 cmReference

Width118 cmReference

Height (ROPS)228 cmReference

Height (ROPS)165 cmReference

Max weight948 kgReference

Ground clearance15 cmReference

Front tread92 cmReference

Rear tread87 cmReference

New Holland TZ21D attachments

137 cm mid-mount mower deckReference

152 cm mid-mount mower deckReference

Electrical

GroundnegativeReference

Battery volts12Reference

Attachment overview

137 cm mid-mount mower deckReference

152 cm mid-mount mower deckReference

General

Make & ModelNew HollandReference

Capacities

Capacity58.2 ciReference

Power

Rated Power21 hpReference

PTO

Rear PTO RPM540 RPMReference

Mid PTO RPM2,000 RPMReference

Steering & brakes

Brakeswet discReference

Steering typehydrostatic powerReference

Hydraulics

Hydraulics Typeopen centerReference

Maximum operating pressure1,885 psiReference

Remote Valves1 valveReference

Rear Hitch category (SAE designation)Category IReference

Rear Hitch maximum lift capacity714.9 kgReference

Dimensions & weight

Height Over ROPS228.1 cmReference

Overall Length204.7 cmReference

Overall Width118.1 cmReference

Overall weight662.2 kgReference

Wheels & tyres

Rear Wheel Type26x12-12 inchesReference

Rear wheel tread range87.1 cmReference

Front Wheel Type18x8.5-8 inchesReference

Front Wheel tread range93 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
