Tractor · 2018Unverified

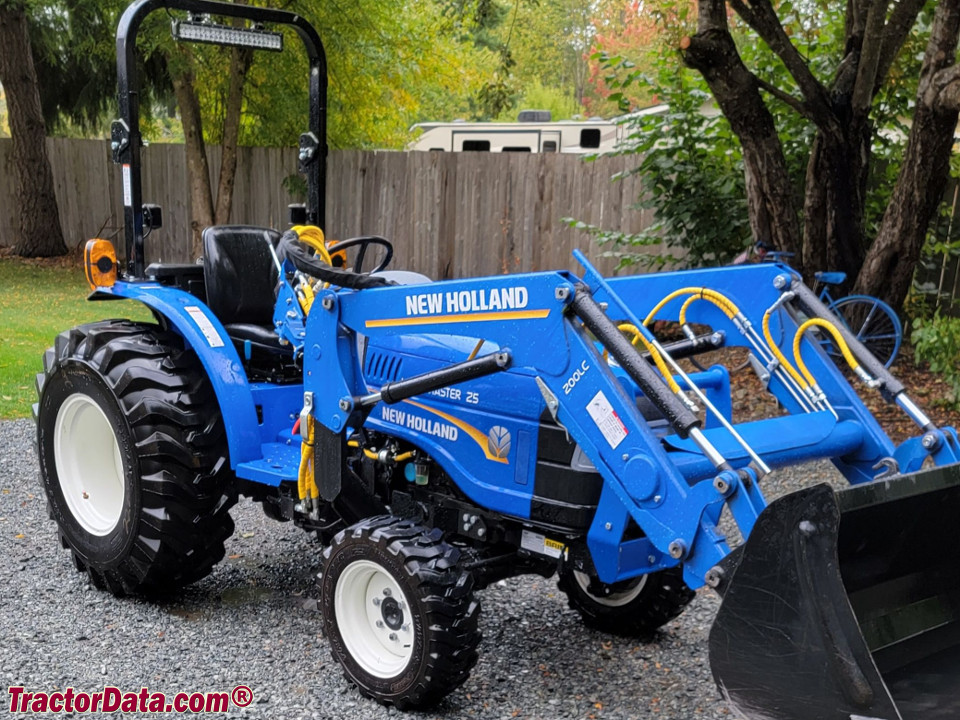

New Holland Workmaster 25
New Holland Workmaster 25 — Compact Utility tractor · 24 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
1119 kg
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Compact Utility tractorReference
Original price was $15,259 in 2019Reference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Variants
Farmall 25Asimilar CaseIH modelReference
Engine
Mitsubishi 1.3L 3-cyl dieselReference
Fuel tank28.0 LReference
Engine (gross)18.2 kWReference
Mitsubishi S3L2Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke78 x 92 mmReference
EmissionsTier IVReference
Power (gross)18.2 kWReference
Pre-heatingglow plugsReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed sync shuttleReference
hydrostaticReference
Typesync shuttleReference
Gears12 forward and reverseReference
Four gears in three ranges with synchronized shuttle shift.Reference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Gear PTO (claimed)14.3 kWReference
Hydro PTO (claimed)12.8 kWReference
Typeopen centerReference
Valves1 or 2Reference
Pump flow29.9 lpmReference
Total flow47.3 lpmReference
Steering flow17.4 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)820 kgReference
Rear lift (at 24"/610mm)650 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540 (1.375)Reference
Mid PTOindependentReference
Mid PTO Type2000Reference
Dimensions
Wheelbase167 cmReference
Weight1119 kgReference
Weight495 kgReference
Industrial front25x8.50-14Reference
Industrial rear43x16.00-230Reference
Length297 cmReference
Width137 cmReference
Height (ROPS)224 cmReference
Flange rear axleReference
Front tread115 cmReference
Rear tread128 cmReference
New Holland Workmaster 25 attachments
snowblowerReference
bladeReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps50Reference
Battery CCA660Reference
Battery volts12Reference
Battery AH80Reference
Attachment overview
SnowblowerReference
BladeReference
Front-end loaderReference
BackhoeReference
New Holland 910GBL Backhoe
Backhoe typeNew Holland 910GBL BackhoeReference
Transport height196 cmReference
Digging depth194 cmReference
Reach from pivot287 cmReference
Loading height161 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1277 kgReference
Dipperstick force792 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
