Tractor · 2018Unverified

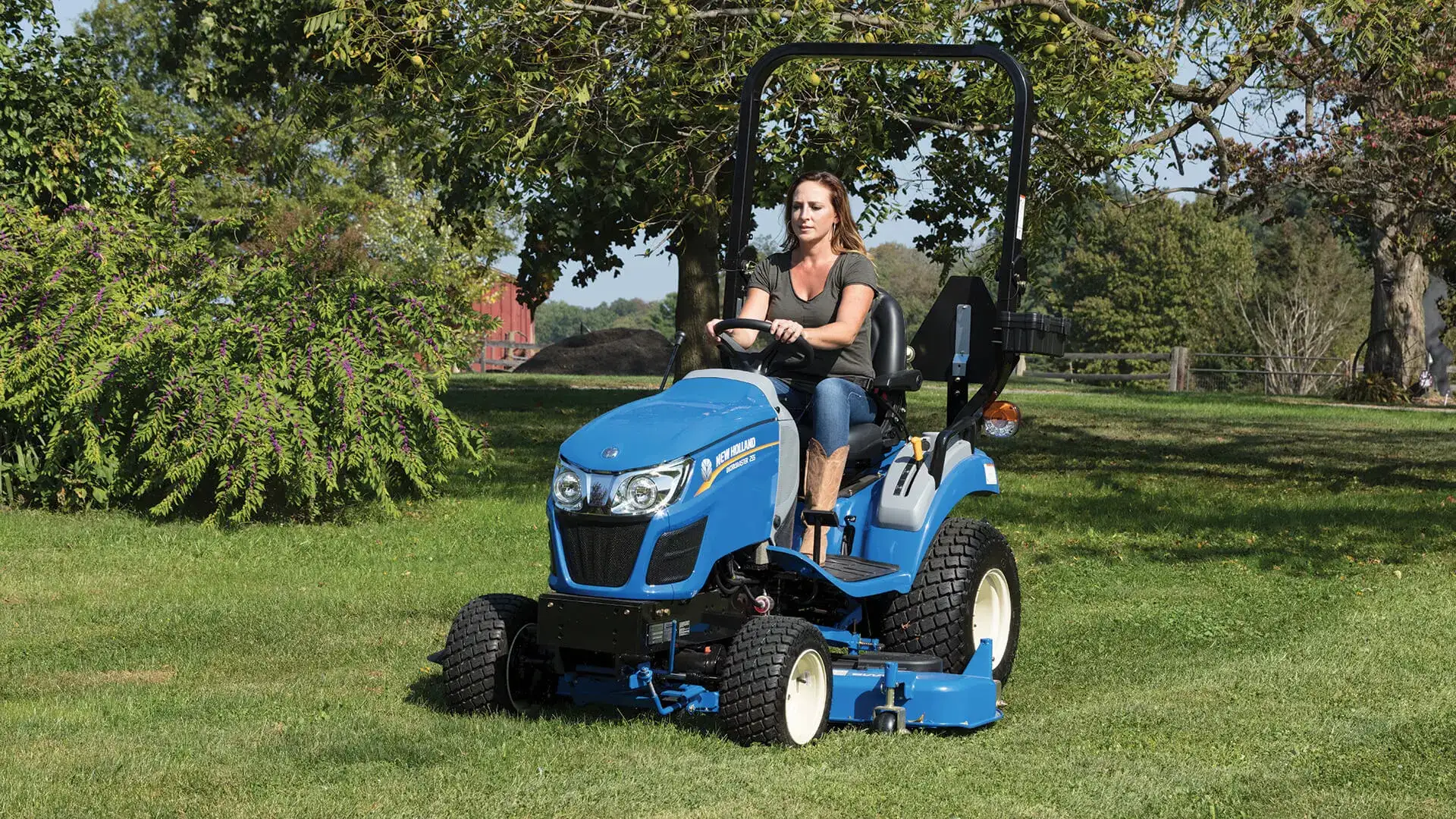

New Holland Workmaster 25S
New Holland Workmaster 25S — Sub-Compact Utility tractor · 25 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
654 kg
Hover a source tag to verify
Overview
DistributorNew Holland (a part of CNH)Reference
ManufacturerLSReference
Sub-Compact Utility tractorReference
Built in South KoreaReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Variants
Farmall 25SCsimilar CaseIH modelReference
Engine
Yanmar 1.3L 3-cyl dieselReference
Fuel tank25.0 LReference
Engine (gross)18.4 kWReference
Yanmar 3TNV80FReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke80 x 84 mmReference
EmissionsTier IVReference
Power (gross)18.4 kWReference
Pre-heatingglow plugsReference
Rated RPM3000Reference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
PTO (claimed)12.8 kWReference
Typeopen centerReference
Valves1Reference
Pump flow17.4 lpmReference
Total flow25.4 lpmReference
Steering flow7.9 lpmReference
Rear TypeIReference
Rear lift (at ends)449 kgReference
Rear lift (at 24"/610mm)330 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540 (1.375)Reference
Mid PTOindependentReference
Mid PTO Type2500Reference
Dimensions
Wheelbase142 cmReference
Weight654 kgReference
Weight320 kgReference
Lawn/turf front18x8.50-10Reference
Lawn/turf rear26x12.00-12Reference
Industrial front18x8.50-10Reference
Industrial rear26x12.00-12Reference
Length247 cmReference
Width118 cmReference
Height (ROPS)221 cmReference
Flange rear axleReference
Front tread91 cmReference
Rear tread87 cmReference
New Holland Workmaster 25S attachments
60" mid-mount mower deckReference
snowblowerReference
bladeReference
front-end loaderReference
backhoeReference
Workmaster 25S Serial Numbers
Location:Serial number plate on the left side of the frame, above the front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery CCA430Reference
Battery volts12Reference
Battery AH45Reference
Attachment overview
60" mid-mount mower deckReference
SnowblowerReference
BladeReference
Front-end loaderReference
BackhoeReference
60" Mower deck
Typemid-mount New Holland 160GMSReference
Type3-bladeReference
Cutting width152 cmReference
Overall width192 cmReference
Cut height2 to 10 cmReference
New Holland 905GBL Backhoe
Backhoe typeNew Holland 905GBL BackhoeReference
Transport height189 cmReference
Digging depth201 cmReference
Reach from pivot291 cmReference
Loading height151 cmReference
Bucket Rotation169.4°Reference
Swing Arc135°Reference
Bucket force995 kgReference
Dipperstick force604 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
