Tractor · 2015Unverified

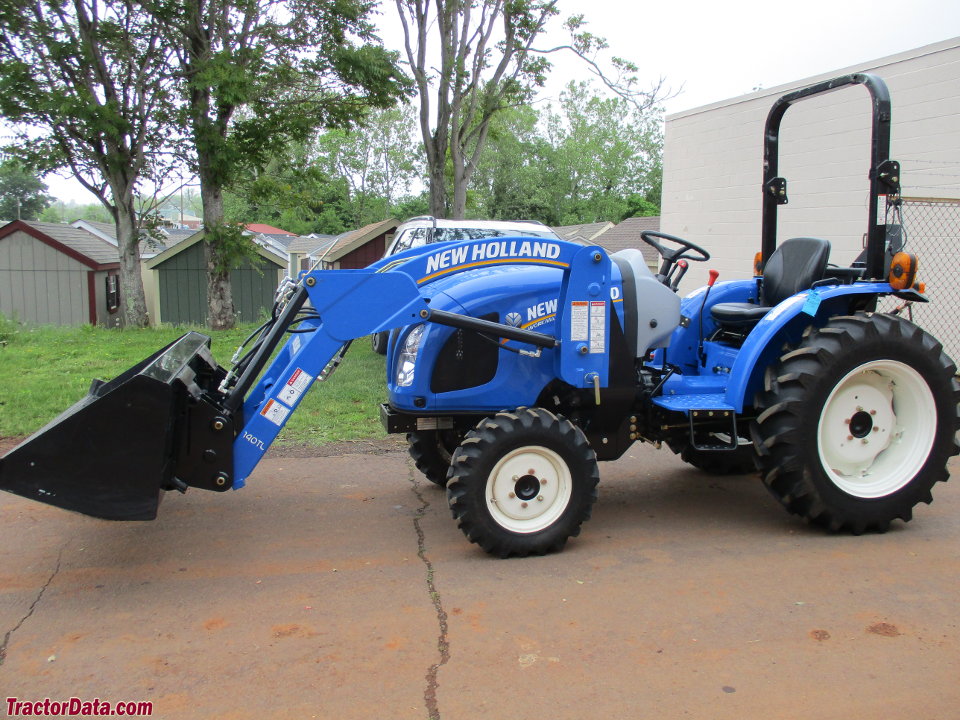

New Holland Workmaster 33
New Holland Workmaster 33 — Workmaster Series · 26 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
26 hp
Weight
1391 kg
Hover a source tag to verify
Overview
ManufacturerNew Holland (a part of CNH)Reference
Compact Utility tractorReference
Four-wheel driveReference
Final drivesinboard planetaryReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Shibaura 1.5L 3-cyl dieselReference
Fuel tank28.0 LReference
Engine24.0 kWReference
Shibaura N843T-F-24Reference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke84 x 90 mmReference
EmissionsTier IVReference
Emission controlexhaust gas recirculation with diesel particulate filterReference
Power24.0 kWReference
Fuel systemelectronic indirect injectionReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed synchronized shuttleReference
hydrostaticReference
Typesynchronized shuttleReference
Gears12 forward and reverseReference
Four gears in three ranges with mechanical shuttleReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Gear PTO (claimed)19.4 kWReference
Hydro PTO (claimed)18.4 kWReference
Typeopen centerReference
Valves1 or 2Reference
Pump flow31.0 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)820 kgReference
Rear lift (at 24"/610mm)650 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase171 cmReference
Weight1391 kgReference
Front tire7x14Reference
Rear tire11.2x24Reference
Standard tires (ag)Front: 7x14. Rear: 11.2x24Reference
Lawn/turf front25x8.50-14Reference
Lawn/turf rear41x14.00-20Reference
Industrial front25x8.5-14Reference
Industrial rear43x16.00-20Reference
Length307 cmReference
Width168 cmReference
Height (ROPS)222 cmReference
Flange rear axleReference
New Holland Workmaster 33 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps85Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
