Tractor · 2013Unverified

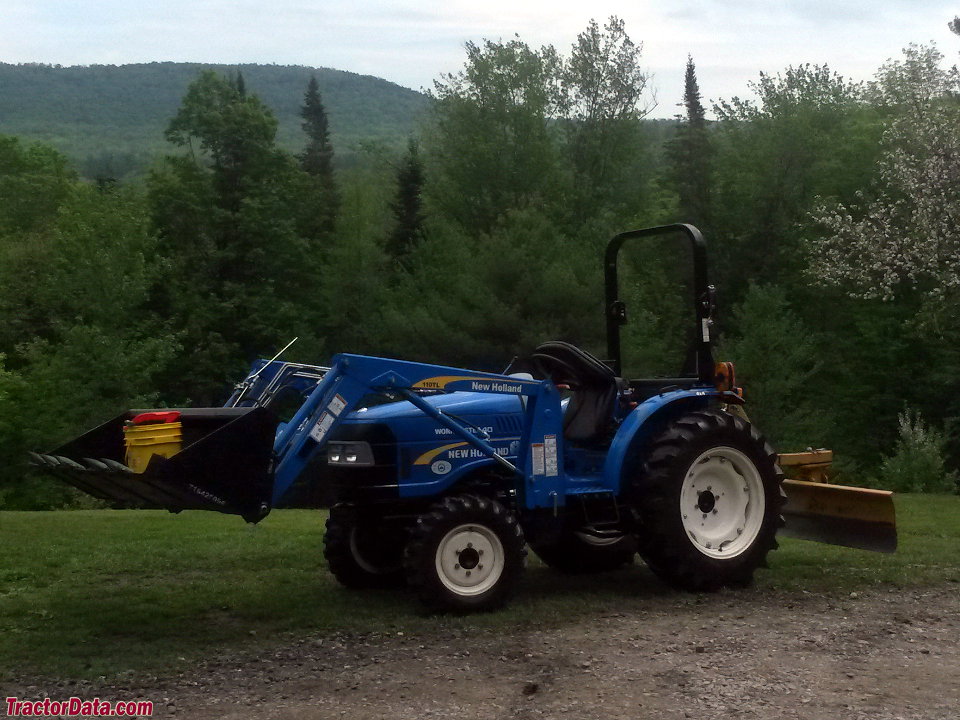

New Holland Workmaster 40

Name: New Holland Workmaster 40
Brand: New Holland

New Holland Workmaster 40 — Workmaster Series · 38 hp. Reference specifications; pending source verification.

The New Holland Workmaster 40 is a compact tractor model with a rating of 38 hp, one of the lower power outputs in its class. It was produced from 2013 to 2015. The tractor features a 3-cylinder diesel liquid-cooled engine, which drives four-wheel drive via a hydrostatic transmission. Its listed weight is 1315 kg, making it suitable for small-scale land management tasks of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

38 hp

Max power

40 hp

Weight

1315 kg

Catalogue coverage

Variants represented

Richest spec table

84 rows

Recorded power

38 hp

Recorded weight

1315 kg

Transmissions

12-speed mechanical shuttle

Production years

2013-2015

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Compact Utility tractorReference

Four-wheel driveReference

Differential lockmechanical rearReference

Steeringhydrostatic powerReference

Wet disc brakesReference

Two-post foldable ROPS.Reference

Engine

LS 2.0L 3-cyl dieselReference

Fuel tank28.0 LReference

Engine (gross)28.3 kWReference

LS L3ALReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement2.0 LReference

Bore/Stroke90 x 105 mmReference

EmissionsTier IIIReference

Power (gross)28.3 kWReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Fuel TypeDieselReference

No of Cylinders3Reference

Rated engine speed2,600 rpmReference

Emissions complianceT4B FinalReference

AspirationTurboReference

Transmission

12-speed mechanical shuttleReference

hydrostaticReference

Typemechanical shuttleReference

Gears12 forward and reverseReference

Four non-synchronized gears in four non-synchronized ranges. Synchronized shuttle shifting.Reference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

Transmission TypeGearReference

Wheel Drive4WDReference

PTO & Hydraulics

Gear PTO (claimed)24.9 kWReference

Hydro PTO (claimed)23.3 kWReference

Typeopen center gear pumpReference

Pump flow31.0 lpmReference

Total flow49.2 lpmReference

Steering flow18.2 lpmReference

Rear TypeIReference

Rear lift (at ends)819 kgReference

Rear lift (at 24"/610mm)650 kgReference

Rear Armsfixed link ends with telescoptic stabilizersReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540 (1.375)Reference

Mid PTOindependent (optional)Reference

Mid PTO Type2000Reference

Dimensions

Weight1315 kgReference

Length298 cmReference

Width168 cmReference

Height222 cmReference

Flange rear axleReference

Front tread115 cmReference

Rear tread128 cmReference

New Holland Workmaster 40 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps50Reference

Battery CCA660Reference

Battery volts12Reference

Battery AH80Reference

Alternator size70 ampsReference

Power

Max Power40 hpReference

PTO

PTO Power34 hpReference

Rear PTO PowerAvailableReference

Rear PTO ControlIndependent Electro-Hydraulic EngagementReference

Rear PTO RPM540 rpmReference

General

Cruise controlStandard HSTReference

Steering & brakes

BrakesWet, Multi-DiscReference

Steering typePower SteeringReference

Hydraulics

Pump Rated Output (total)46.9 l/minReference

Remote Valves2Reference

Steering & Implements flow4.2 gpm (8.2 gpm)Reference

Rear Hitch category (SAE designation)3-point | Telescopic Stabilizer / Fixed Link EndsReference

Rear Hitch maximum lift capacity820.1 kgReference

Dimensions & weight

Wheelbase171.5 cmReference

Height Over Cab222.8 cmReference

Height Over ROPS222.8 cmReference

Overall Length307.3 cmReference

Overall Width1,689 mmReference

Overall weight1,391.2 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
