Tractor · 2009Unverified

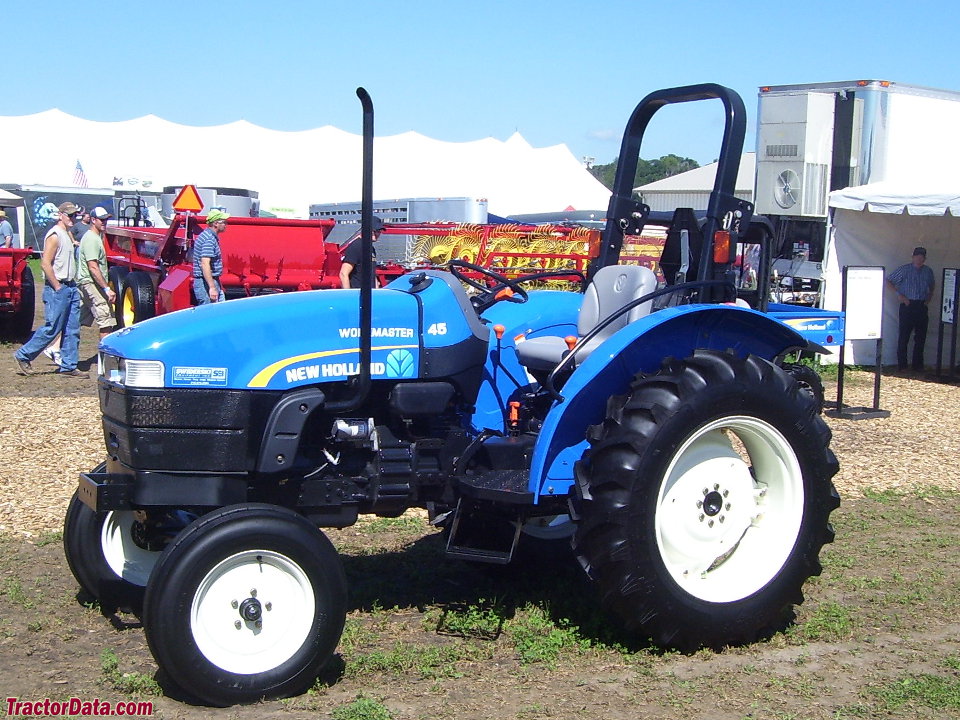

New Holland Workmaster 45

Name: New Holland Workmaster 45
Brand: New Holland

New Holland Workmaster 45 — Workmaster Series · 45 hp. Reference specifications; pending source verification.

The New Holland Workmaster 45 is a tractor with a rated power output of 45 hp, classifying it as a lighter model within its category. It was manufactured from 2009 to 2014. The tractor features a 4-cylinder diesel liquid-cooled engine, paired with mechanical front-wheel drive and a hydrostatic transmission. Its operating weight is specified as 3527 to 3836 pounds.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

45 hp

Max power

45 hp

Weight

3527 to 3836 pounds

Catalogue coverage

Variants represented

Richest spec table

92 rows

Recorded power

45 hp

Recorded weight

1599 kg

Transmissions

8-speed synchronized mechanical shuttle

Production years

2009-2014

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Utility tractorReference

Built in IndiaReference

Drive4x2 2WDReference

Drive4x4 MFWD 4WD (optional)Reference

Differential lockmechanical rear differential lock with foot pedal, limited slip front axle (4WD)Reference

Steeringhydrostatic powerReference

Differential mechanical wet disc brakesReference

Two-post foldable ROPSReference

Engine

ISM 2.2L 4-cyl dieselReference

Fuel tank51.1 LReference

Engine (gross)33.6 kWReference

ISMReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.2 LReference

Bore/Stroke84 x 100 mmReference

EmissionsTier IIIReference

Power (gross)33.6 kWReference

Air cleanerdual dry elementReference

Rated RPM2700Reference

StarterelectricReference

Starter volts12Reference

Fuel TypeDieselReference

No of Cylinders4 CylinderReference

Rated engine speed2,700 RPMReference

Emissions complianceTier IIIReference

Bore and stroke3.307x3.937 inchesReference

Cooling systemliquid-cooledReference

Transmission

8-speed synchronized mechanical shuttleReference

Typesynchronized mechanical shuttleReference

Gears8 forward and reverseReference

Clutch11-inch dry organic plateReference

Four gears in two ranges. Tractor must be stopped to shift gears or range. Synchronized left-hand shuttle.Reference

Transmission TypeGearReference

forward and reverse optionssynchronized mechanical shuttle - 8F and 8RReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)29.1 kWReference

Typeopen center fixed displacementReference

Valves1 or 2Reference

Pump flow43.9 lpmReference

Total flow64.0 lpmReference

Steering flow20.1 lpmReference

Rear Type2/1Reference

Controlposition controlReference

Rear lift (at 24"/610mm)830 kgReference

Rear PTOindependentReference

Rear PTO Type540Reference

Dimensions

Weight3527 to 3836 poundsReference

Front tire6x16Reference

Rear tire12.4x28 (2WD)Reference

Standard tires (ag)Front: 6x16. Rear: 12.4x28 (2WD)Reference

Standard tires (ag)Front: 8.3x24. Rear: 13.6x28 (4WD)Reference

Length332 cmReference

Length339 cmReference

Width167 cmReference

Height238 cmReference

Shipping weight1599 kgReference

Shipping weight1740 kgReference

New Holland Workmaster 45 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps40Reference

Charging volts12Reference

Battery CCA800Reference

Battery volts12Reference

Total cold cranking amps800 CCAReference

General

Make & ModelNew HollandReference

Rollover protective structureTwo-post foldable ROPSReference

Country of manufacturerIndiaReference

Capacities

Capacity135 ciReference

Power

Max Power45 hpReference

PTO

PTO Power39 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Steering & brakes

Brakesdifferential mechanical wet discReference

Steering typehydrostatic powerReference

Hydraulics

Pump Rated Output (total)16.9 gpmReference

Hydraulics Typeopen center fixed displacementReference

Remote Valves1 or 2 ValvesReference

Steering & Implements flow5.3 gpm (11.6 gpm)Reference

Rear Hitch category (SAE designation)Category 2/1Reference

Rear Hitch Sensing Typeposition controlReference

Dimensions & weight

Overall Height238.5 cmReference

Overall Length339.1 cmReference

Overall Width167.9 cmReference

Overall weight1,740 kgReference

Wheels & tyres

Rear Wheel Type12.4x28Reference

Front Wheel Type6x16Reference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensiontrueReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
