Tractor · 2015Unverified

New Holland Workmaster 50

Name: New Holland Workmaster 50
Brand: New Holland

New Holland Workmaster 50 — Workmaster Series · 45 hp. Reference specifications; pending source verification.

The New Holland Workmaster 50 is a compact tractor with a power output of 45 hp, manufactured in 2015. It features a 3-cylinder turbocharged diesel liquid-cooled engine driving through a four-wheel drive system with an 8-speed gearbox. The tractor's weight ranges from 4442 to 5059 pounds. It is suitable for operations on approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

45 hp

Weight

4442 to 5059 pounds

Catalogue coverage

Variants represented

Richest spec table

106 rows

Recorded power

45 hp

Recorded weight

387 kg

Transmissions

8-speed synchronized shuttle

Production years

2015-2015

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew Holland (a part of CNH)Reference

Utility tractorReference

Original price was $23,658 in 2017Reference

Two- or four-wheel driveReference

Final drivesinboard planetaryReference

Differential lockmechanical rearReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS.Reference

Engine

FPT 2.2L 3-cyl dieselReference

Fuel tank52.2 LReference

Engine39.5 kWReference

FPT R753Reference

turbocharged dieselReference

3-cylinderReference

liquid-cooledReference

Displacement2.2 LReference

Bore/Stroke94 x 107 mmReference

EmissionsTier IVReference

Emission controlexhaust gas recirculation with particulate catalystReference

Power39.5 kWReference

Fuel systemelectronic high-pressure common rail direct injectionReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Fuel TypeDieselReference

No of Cylinders3-cylinderReference

Rated engine speed2,600Reference

Emissions complianceTier IV | exhaust gas recirculation with particulate catalystReference

Bore and stroke3.70x4.21 inchesReference

Cooling systemliquid-cooledReference

Transmission

8-speed synchronized shuttleReference

Typesynchronized shuttleReference

Gears8 forward and reverseReference

forward and reverse options8 forward and reverseReference

PTO & Hydraulics

PTO (claimed)33.6 kWReference

Typeopen centerReference

Valves1 or 2Reference

Pump flow45.4 lpmReference

Total flow66.2 lpmReference

Steering flow20.8 lpmReference

Rear TypeII/IReference

Controlposition and draft controlReference

Rear lift (at ends)1500 kgReference

Rear lift (at 24"/610mm)1225 kgReference

Rear Armstelescoping draft linksReference

Rear PTOindependentReference

ClutchmechanicalReference

Rear PTO Type540Reference

Rear PTO Type540/540EReference

Dimensions

2WD Wheelbase244 cmReference

4WD Wheelbase247 cmReference

Weight4442 to 5059 poundsReference

Front tire7.5x16Reference

2WD Rear tire13.6x28Reference

Weight387 kgReference

2WD Standard tires (ag)Front: 7.5x16. Rear: 13.6x28Reference

4WD Standard tires (ag)Front: 8.3x24. Rear: 13.6x28Reference

Industrial front12.5x18Reference

Industrial rear18.4x24Reference

2WD Length328 cmReference

4WD Length340 cmReference

Width196 cmReference

Height (ROPS)247 cmReference

2WD Weight2014 kgReference

4WD Weight2294 kgReference

Flange rear axleReference

New Holland Workmaster 50 attachments

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps75Reference

Battery volts12Reference

Attachment overview

New Holland 611TL loaderReference

New Holland 616TL loaderReference

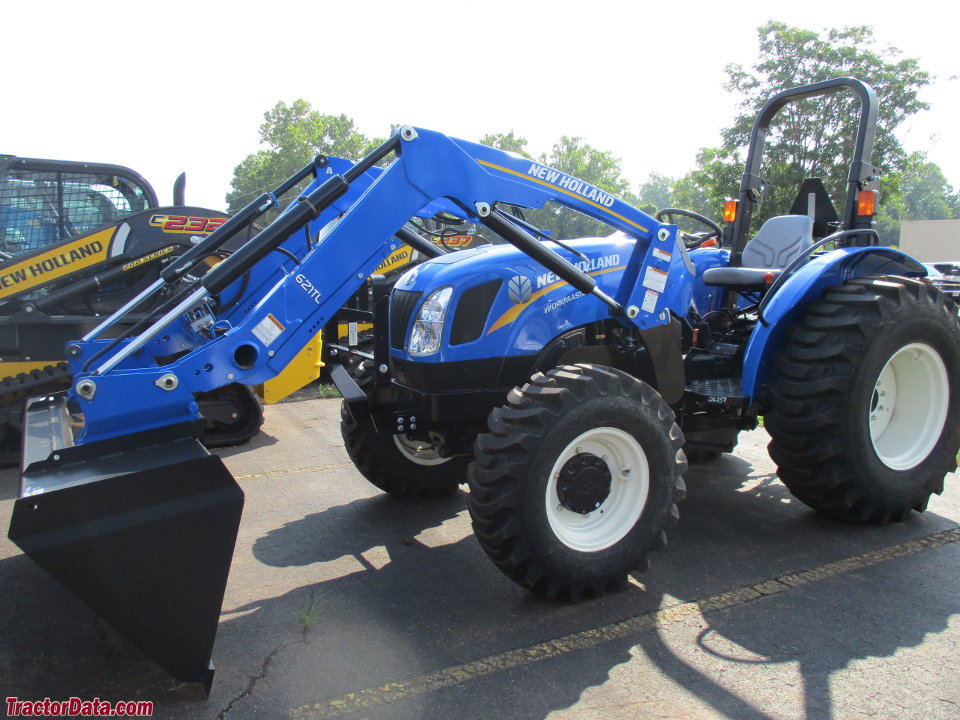

New Holland 621TL loaderReference

New Holland 626TL loaderReference

BackhoeReference

New Holland 935GHB Backhoe

Backhoe typeNew Holland 935GHB BackhoeReference

Transport height223 cmReference

Digging depth254 cmReference

Reach from pivot330 cmReference

Loading height193 cmReference

Bucket Rotation180°Reference

Swing Arc175°Reference

Bucket force2032 kgReference

Dipperstick force1148 kgReference

General

Make & ModelNew Holland (a part of CNH)Reference

Rear Axle TypeFlangeReference

Country of manufacturerUtility tractorReference

Capacities

Capacity136 ciReference

Power

Rated Power53 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM540, 540/540EReference

Steering & brakes

Brakeswet discReference

Steering typepowerReference

Hydraulics

Hydraulics Typeopen centerReference

Remote Valves1 or 2Reference

Steering & Implements flow5.5 gpm (12 gpm)Reference

Rear Hitch category (SAE designation)Category II/IReference

Rear Hitch maximum lift capacity1,500 kgReference

Rear Hitch Sensing Typeposition and draft controlReference

Dimensions & weight

Overall Height247.9 cmReference

Overall Width196.9 cmReference

Operator station

Cab AvailabilityAvailableReference

Cab Air conditioning, temperature differentialTwo-post folding ROPS.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
