Tractor · 2010Unverified

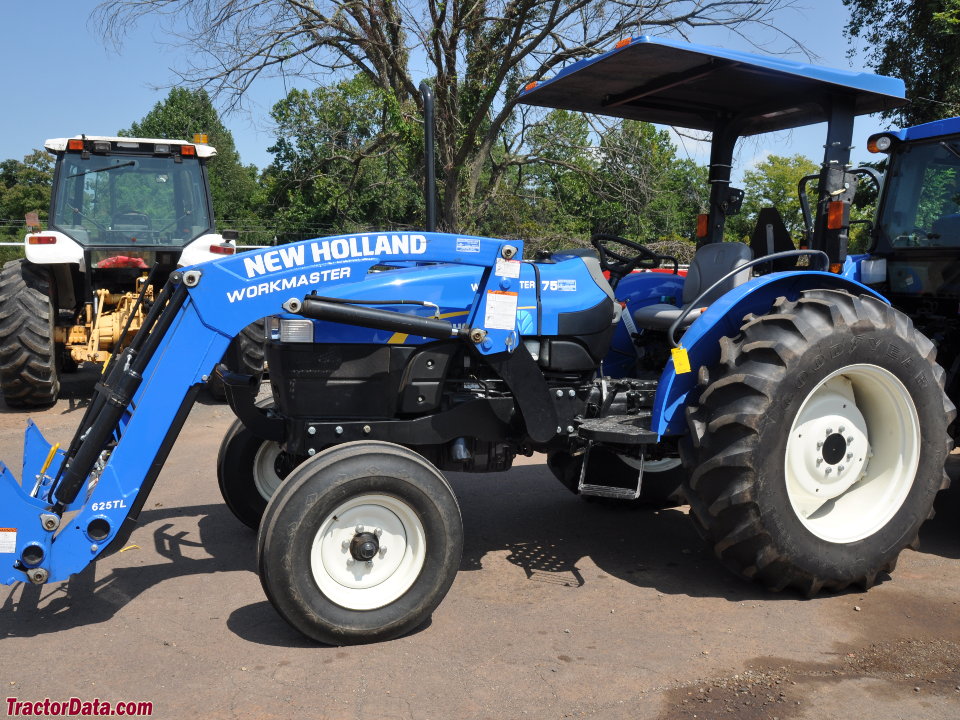

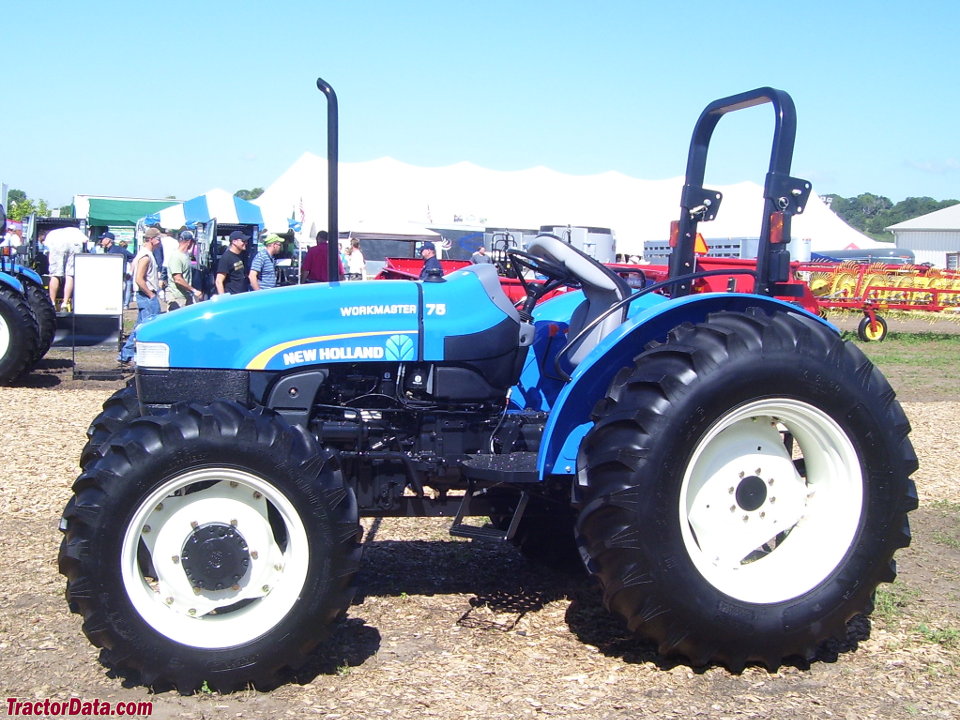

New Holland Workmaster 75
New Holland Workmaster 75 — Workmaster Series · 75 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
75 hp
Max power
50.8 kW
Weight
5059 to 5790 pounds
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Utility tractorReference
Built in IndiaReference
Four-wheel driveReference
Differential lockmechanical rear lock engaged by foot pedal, limited slip front differential (4WD)Reference
Steeringhydrostatic powerReference
Differential mechanical wet disc brakesReference
Two-post foldable ROPSReference
Engine
FPT 3.2L 4-cyl dieselReference
Fuel tank60.6 LReference
Engine (gross)55.9 kWReference
FPTReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.2 LReference
Bore/Stroke99 x 104 mmReference
EmissionsTier IIIReference
Power (gross)55.9 kWReference
Air cleanerdual dry elementReference
Compression17:1Reference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Max power50.8 kWReference
Power at rated engine speed49.9 kWReference
Transmission
8-speed partially synchronizedReference
Typepartially synchronizedReference
Gears8 forward and 2 reverseReference
Clutch11-inch dry organic plateReference
Four gears in two ranges. Gear shifts 3-4 and 7-8 are synchronized.Reference
PTO & Hydraulics
PTO (claimed)48.5 kWReference
PTO (tested)50.8 kWReference
Typeopen center fixed displacementReference
Rear valves1 or 2Reference
Mid valves2 (loader)Reference
Pump flow39.4 lpmReference
Total flow70.8 lpmReference
Steering flow31.4 lpmReference
Rear Type2/1Reference
Controlposition control and mechanical draft sensingReference
Rear lift (at ends)1485 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Power at rated PTO speed49.7 kWReference
Dimensions
Weight5059 to 5790 poundsReference
Front tire11.2x24Reference
Rear tire16.9x30Reference
Standard tires (ag)Front: 11.2x24. Rear: 16.9x30Reference
Length348 cmReference
Width199 cmReference
Height242 cmReference
4WD Front tread151 to 202 cmReference
Rear tread151 to 203 cmReference
2WD Shipping2294 kgReference
4WD Shipping2580 kgReference
4WD Operating2626 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps65Reference
Charging volts12Reference
Battery CCA800Reference
Battery volts12Reference
Test results
Diesel 8-speed 4WDDecember 7 - 9, 2011Link: Nebraska Tractor Test 2014 fileReference
PTO performanceReference
Fuel use16.3 l/hourReference
Fuel use17.8 l/hourReference
Fuel use15.1 l/hourReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
