Tractor · 2019Unverified

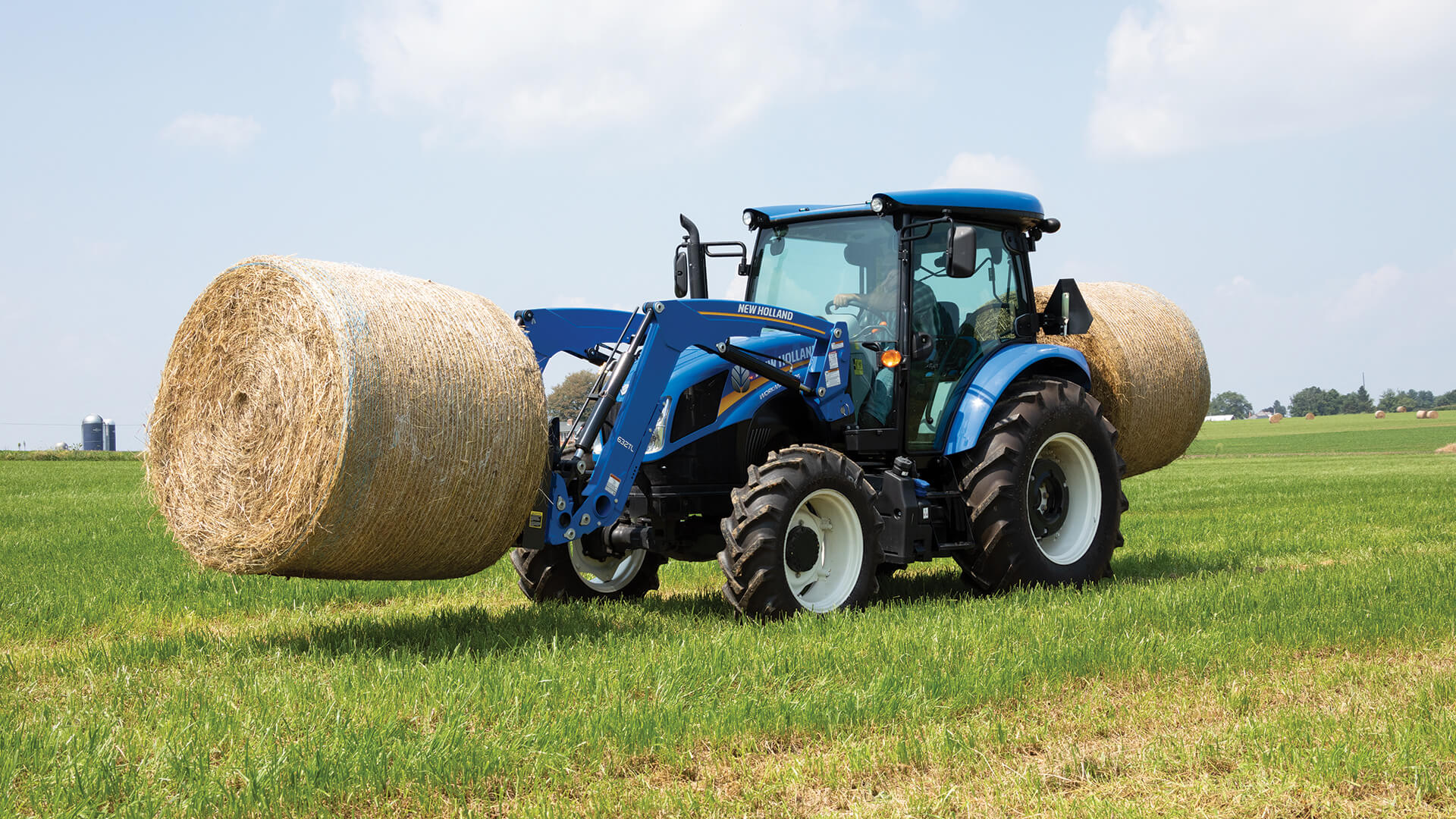

New Holland Workmaster 95

Name: New Holland Workmaster 95
Brand: New Holland

New Holland Workmaster 95 — Workmaster Series · 97 hp. Reference specifications; pending source verification.

The New Holland Workmaster 95 tractor model is rated at 97 horsepower, positioning it in the middle of its class for power output. Manufactured in 2019, the Workmaster 95 features a 4-cylinder turbocharged diesel liquid-cooled engine, which drives four-wheel drive through a 12-speed gearbox. The listed weight of the tractor ranges from 7738 to 8637 pounds. It is designed for use on plots of around 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

97 hp

Max power

97 hp

Weight

7738 to 8637 pounds

Catalogue coverage

Variants represented

Richest spec table

80 rows

Recorded power

97 hp

Recorded weight

3509 kg

Transmissions

12-speed power shuttle

Production years

2019-2019

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Utility tractorReference

Original price$67,370 (2022 ROPS )Reference

Original price$83,837 (2022 Cab )Reference

Four-wheel driveReference

Final drivesinboard planetaryReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS. Cab optional with air-conditioning.Reference

Engine

FPT 3.4L 4-cyl dieselReference

ROPS Fuel tank90.8 LReference

Cab Fuel tank109.8 LReference

Exhaust fluid (DEF)11.0 LReference

Engine (gross)72.3 kWReference

FPT F5Reference

turbocharged aftercooled dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.4 LReference

Bore/Stroke99 x 110 mmReference

EmissionsTier 4Reference

Power (gross)72.3 kWReference

Rated RPM2300Reference

StarterelectricReference

Starter volts12Reference

Fuel TypeDieselReference

No of Cylinders4Reference

Transmission

12-speed power shuttleReference

Typepower shuttleReference

Gears12 forward and reverseReference

Four synchronized gears in three ranges with power shuttle.Reference

Transmission TypePower ShuttleReference

forward and reverse options12x12Reference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)58.2 kWReference

Typeopen centerReference

Rear valves2 or 3Reference

Pump flow64.0 lpmReference

Pump flow81.8 lpmReference

Steering flow36.7 lpmReference

Rear TypeII/IReference

Rear lift (at 24"/610mm)1451 kgReference

Rear lift (at 24"/610mm)2812 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type540Reference

Rear PTO Type540/540E l 540/1000 ) ((Optional)Reference

Dimensions

ROPS Wheelbase212 cmReference

Cab Wheelbase225 cmReference

Weight7738 to 8637 poundsReference

Front tire12.4-24Reference

Rear tire18.4-30Reference

Standard tires (ag)Front: 12.4-24. Rear: 18.4-30Reference

Optional tires (ag)Front: 13.6-24. Rear: 16.9-34Reference

Length409 cmReference

Height (ROPS)261 cmReference

Height (cab)267 cmReference

ROPS Weight3509 kgReference

Cab Weight3917 kgReference

Flange rear axleReference

New Holland Workmaster 95 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps120Reference

Battery volts12Reference

Attachment overview

New Holland 632TL loaderReference

New Holland 637TL loaderReference

General

Make & ModelF5Reference

Precision AgricultureAvailable (Telematic)Reference

Capacities

Capacity207 cu. in.Reference

Power

Max Power97 hpReference

PTO

PTO Power78 hpReference

Hydraulics

Pump Rated Output (total)Option 1: 16.9 l/min\\nOption 2: 21.6 l/minReference

Remote Valves3Reference

Number of rear selective control valves (SCVs)3Reference

Steering & Implements flow9.7 gpm (16.9 gpm)Reference

Dimensions & weight

Wheelbase212.6 cmReference

Overall weight3,795.2 kgReference

Operator station

Cab AvailabilitytrueReference

Seat SuspensionAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
