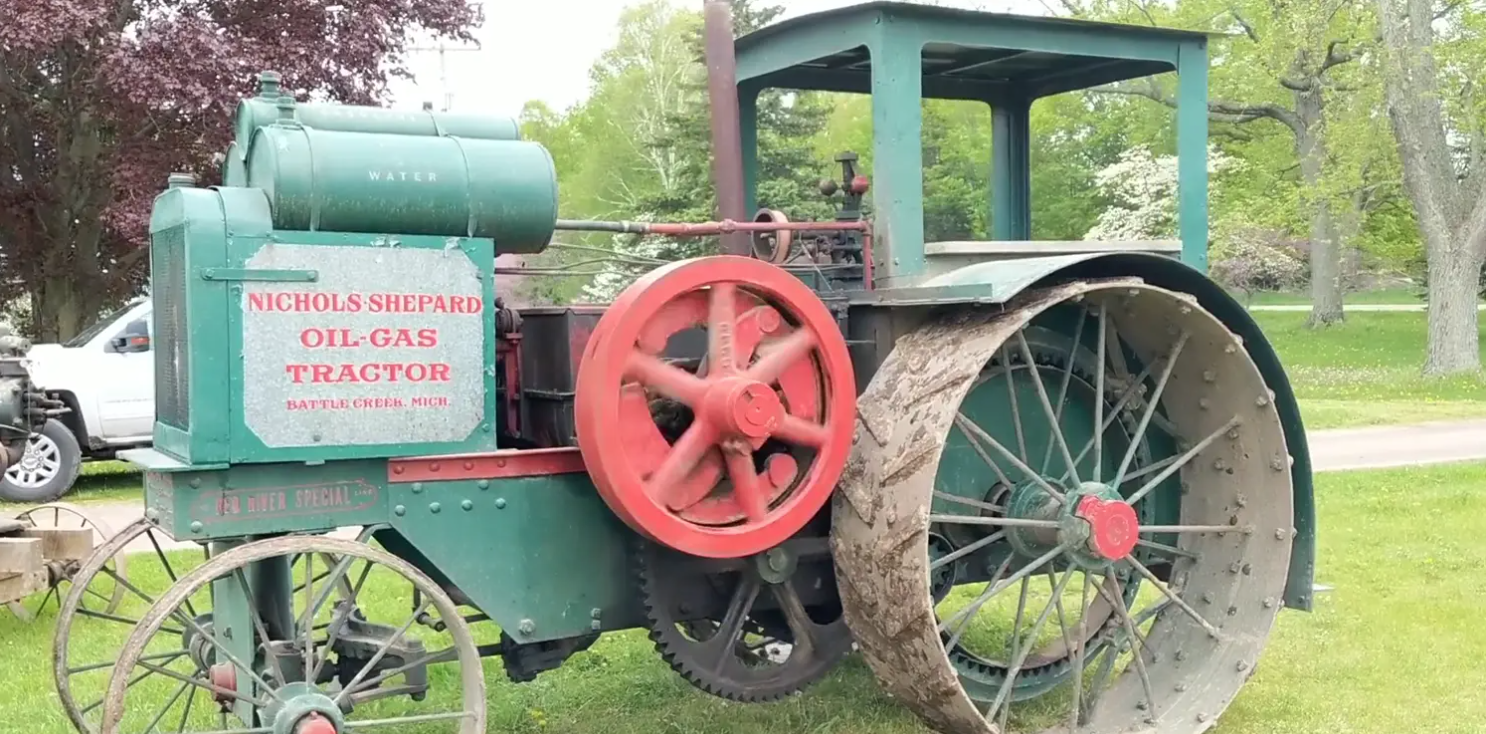

The Nichols-Shepard 20-42 is a tractor model rated at approximately 42 hp, positioning it at the lower end of its class in terms of power output. Production of the 20-42 ran from 1918 until 1925. It is equipped with a 2-cylinder liquid-cooled engine and a two-wheel drive system with a 2-speed gearbox, and has an operating weight of 6123 kg. It is suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
42 hp
Weight
6123 kg
Catalogue coverage
Variants represented
2
Richest spec table
36 rows
Recorded power
42 hp
Recorded weight
6123 kg
Transmissions
2-speed gear
Production years
1918-1925
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerNichols-ShepardReference
Standard-tread tractorReference
Built in Battle Creek, Michigan, USAReference
The Nichols & Shepard 20-42 was originally named the 18-36. By 1919 it had been renamed to reflect the higher power level.Reference
Two-wheel driveReference
Final drivesbull gearReference
Manual steeringReference
Open operator station.Reference
Engine
Nichols & Shepard 16.5L 2-cyl keroseneReference
Fuel tank87.1 LReference
Aux. fuel22.7 LReference
Drawbar (claimed)31.3 kWReference
Belt (claimed)14.9 kWReference
Plows5 (14-inch)Reference
Nichols & ShepardReference
keroseneReference
2-cylinderReference
liquid-cooledReference
Displacement16.5 LReference
Bore/Stroke203 x 254 mmReference
Transmission
2-speed gearReference
TypegearReference
Gears2 forward and 1 reverseReference
Clutchdry drumReference
Dimensions
Weight6123 kgReference
Front tire38x8Reference
Rear tire64x20Reference
Ag front38x8 steelReference
Ag rear64x20 steelReference
Length469 cmReference
Width228 cmReference
Height279 cmReference
Rear axle101 mmReference
Capacities
Diameter55 cmReference
Width20 cmReference
RPM500Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
