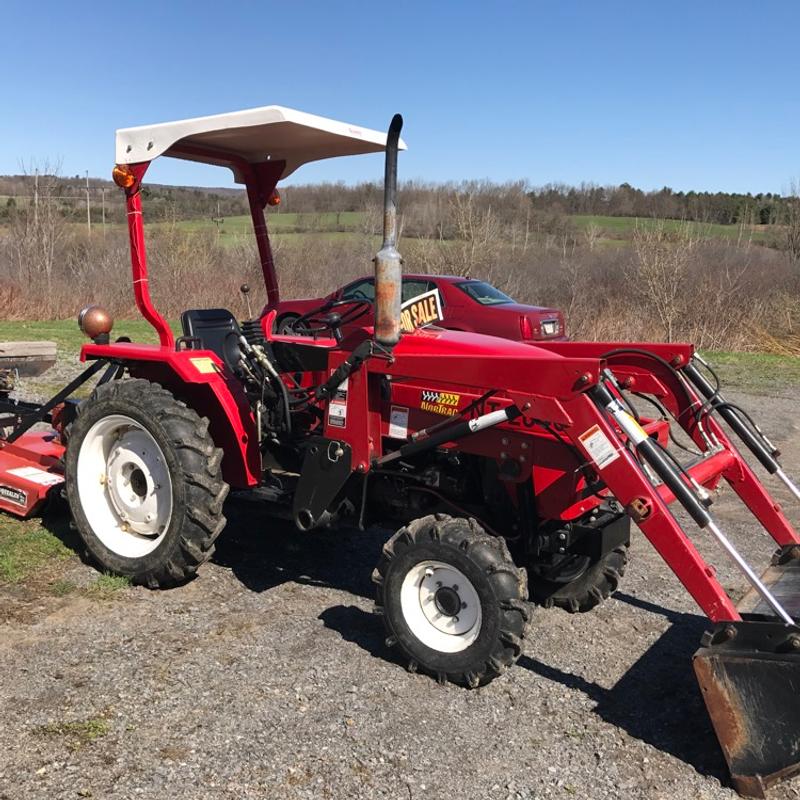

The NorTrac NT-204 is a tractor with a rated power output of 20 hp, which positions it at the lower end of its power class. It is equipped with a 2-cylinder diesel liquid-cooled engine and a four-wheel drive system, paired with a 12-speed gearbox. The tractor's operating weight is listed at 1185 kg, and it is designed for use on areas of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
20 hp
Weight
1185 kg
Catalogue coverage
Variants represented
2
Richest spec table
36 rows
Recorded power
20 hp
Recorded weight
1185 kg
Transmissions
12-speed gear
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerNorTracReference
Built in Yancheng City, ChinaReference
Four-wheel driveReference
Engine
Jinma 1.3L 2-cyl dieselReference
Fuel tank18.2 LReference
Engine14.9 kWReference
JinmaReference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke90 x 100 mmReference
Power14.9 kWReference
Compression18:1Reference
Rated RPM2200Reference
Starter volts12Reference
Oil capacity3.5 LReference
Coolant capacity10.0 LReference
Transmission
12-speed gearReference
TypegearReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
Rear TypeIReference
Rear lift366 kgReference
Rear PTOlive (2-stage clutch)Reference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
Wheelbase151 cmReference
Weight1185 kgReference
Front tire6.00-12Reference
Rear tire8.3-24Reference
Ag front6.00-12Reference
Ag rear8.3-24Reference
Length265 cmReference
Width123 cmReference
Height130 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
